Rugged Embedded Industrial PCs – Robust and Reliable for Harsh Environments
Rugged Embedded Industrial PCs are designed for use in demanding industrial environments. These fanless and rugged systems deliver reliable performance under extreme conditions such as high temperatures, vibrations, and dust, making them ideal for automation, transportation, and manufacturing.
Key features of our Rugged Embedded Industrial PCs:
- Rugged Design: Resistant to extreme temperatures, shocks, and vibrations.
- Fanless: Less maintenance, more reliability.
- Compact: Space-saving and easy to integrate.
- Versatile Interfaces: Ethernet, USB, COM ports, Wi-Fi, 4G/5G.
- Powerful Processors: Intel® processors for demanding tasks.
Our Rugged Embedded Industrial PCs provide the optimal solution for extreme working conditions.
NISE 3800E
- 6th/7th generation Intel Core i3/i5/i7 CPU
- Up to 32 GB DDR4-2133 RAM
- 1x 2.5" SSD, 1x mSATA SSD
- USB 3.0, DisplayPort, HDMI, DVI, COM
- 1x PCIe x4 slot, 2x miniPCIe
- -5°C to 60°C operating temperature
- 9V - 30V DC wide input range
- CE, FCC Class A, UKCA, and UL certified

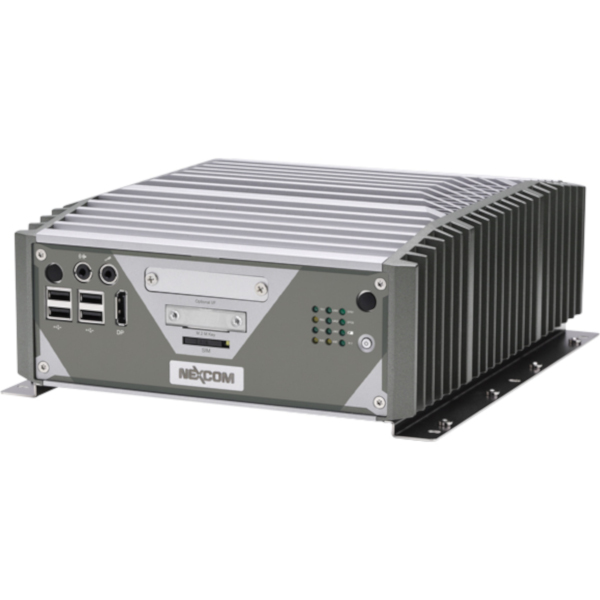

NISE 3900E
- Intel® Core™ 9th/8th gen i3/i5/i7 CPU
- Up to 64GB DDR4 RAM
- 6x USB 3.1, 4x USB 2.0, 3x Gigabit LAN
- DVI-D, HDMI, DisplayPort
- 1x 2.5" SSD/HDD, 1x M.2 NVME
- 1x PCIe x4 slot for expansion cards
- Fanless operation and wide temperature range from -5°C to 55°C
- 9 - 30V DC wide range input

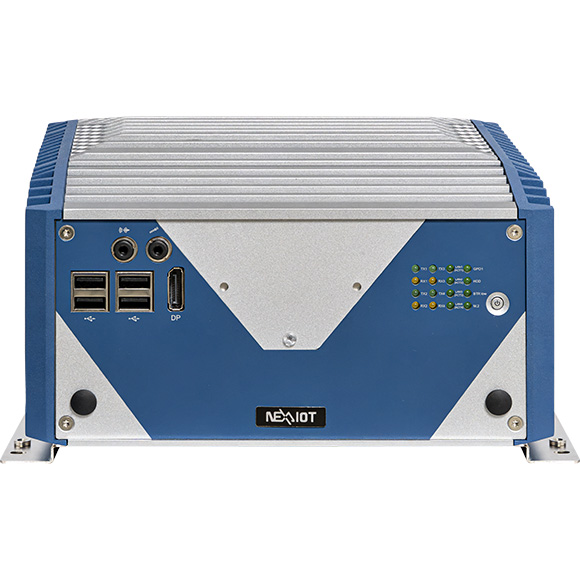

NISE 3910E
- 13th/12th generation Intel® Core™ i3/i5/i7/i9 CPU
- Up to 64 GB DDR5-4800 RAM
- 6x USB 3.2, 4x USB 2.0, 3x COM
- DisplayPort, HDMI, VGA
- 4x 2.5 G LAN ports
- 1x 2.5" SSD, 1x M.2 2242, 1x mSATA
- 1x PCIe x4 slot for expansion cards
- 1x miniPCIe for optional Wi-Fi or 4G LTE communication
- -20°C to +60°C operating temperature
NISE 3910 Serie
- Supports Intel® Core™ i3/i5/i7/i9 LGA1700 socket types of the 12th and 13th generation
- Supports 2 x DDR5 SO-DIMM sockets, up to 64 GB
- Four Intel® i226-IT LAN ports with support for WoL, teaming, and PXE
- 1 x DP, 1 x HDMI, and 1 x VGA with independent display
- 1 x M.2 3042/3052 Key B for LTE/5G module
- 1 x externally accessible M.2 2242 Key M with PCIe x4, support for NvME
- 2 x isolated RS232/422/485 with auto-flow and 2 x RS232
- 1 x Mini-PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE
- 1 x 2.5" SATA HDD/SSD (additional 1 x 2.5" SATA upon request)

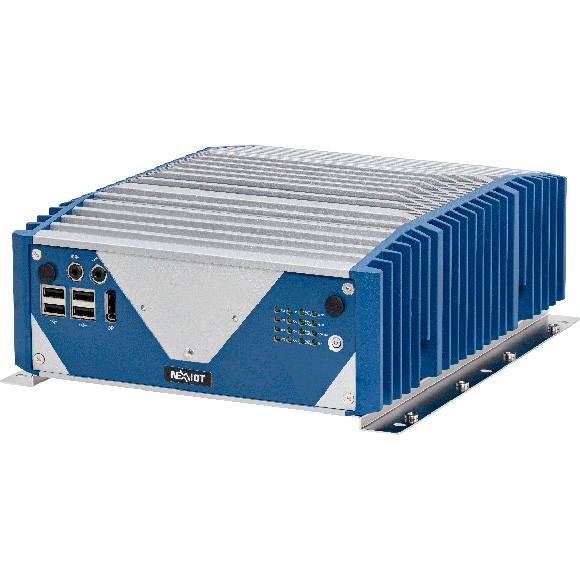

NISE 3910R
- Supports Intel® Core™ i3/i5/i7/i9 LGA1700 socket types of the 12th and 13th generation
- Intel® Q670E PCH
- Supports 2 x DDR5 SO-DIMM sockets, up to 64 GB
- Four Intel® i226-IT LAN ports with support for WoL, teaming, and PXE
- 1 x DP, 1 x HDMI, and 1 x VGA with independent display
- 1 x M.2 3042/3052 Key B for LTE/5G module
- 1 x externally accessible M.2 2242 Key M with PCIe x4, support for NvME
- 6 x USB 3.2 Gen 1, 4 x USB 2.0
- 2 x isolated RS232/422/485 with auto-flow
- 1 x Mini-PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE, mSATA
- 2 x 2.5" SATA HDD/SSD
- TPM 2.0 onboard by default
Nuvo-11000 series (Coming soon)
- Supports Intel® Core™ Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
- Rugged, -25°C to 70°C fanless operation
- Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
- Up to 8x USB 3.2 Gen2 ports
- 4-channel isolated digital inputs (DI) and 4-channel isolated digital outputs (DO)
- 1x optional 10GBASE-T Ethernet port
- Expansion cassette for PCIe add-on card accommodation
- MezIO® interface for easy function expansion
Nuvo-11500 series
- Intel® Core™ Ultra 200 CPU
- Up to 48GB DDR5 RAM
- 1x M.2 NVME, 1x 2.5" SSD
- 4x 2.5G Ethernet with optional PoE+ function
- 4x USB 3.2 Gen 1 ports
- 8-48V wide-range input with ignition control
- Compact low-profile design
- Fanless operation at -25 - 60 °C
- CE/FCC Class A & MIL-STD 810H certified

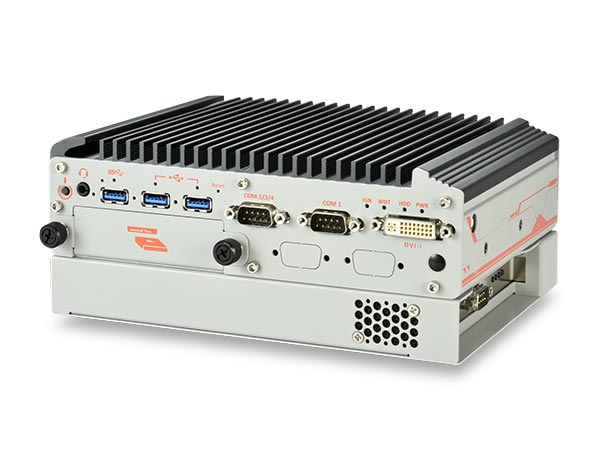

Nuvo-2600 Series
- Intel® Elkhart Lake Atom® x6425E quad-core processor
- Up to 32GB DDR4-3200 SDRAM
- 3x USB, VGA, and DVI-I, 2x serial interfaces
- Four (optional PoE+) Gigabit Ethernet ports
- 4-CH isolated DI and 4-CH isolated DO
- Optional with ignition control
- Fanless operation from -25 to 70°C
- With PCIe expansion cassette or 2500Ws UPS
Nuvo-5000 Series
- Intel® 6th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 32GB DDR4-2133 SD-RAM (two SO-DIMM slots)
- USB 3.0, VGA, DVI, and DisplayPort connections
- 2x 2.5" SSD (+RAID 0/1) and 1x full-size mSATA slot
- 6x / 2x (PoE+) Gigabit Ethernet Ports
- Fanless operation with a wide temperature range of -25°C to 70°C

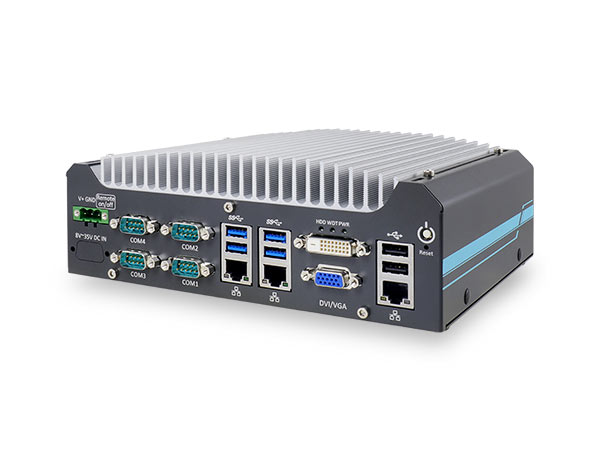

Nuvo-5501 Series
- Intel® 6th Gen Core™ i7/i5/i3 LGA1151 CPU
- Up to 16 GB RAM
- 3 Gigabit Ethernet ports, 4x USB 3.0
- 4x serial RS232/422/485 interfaces
- 1x 2.5‘ / 3.5’ HDD/SSD
- -25°C ~ 70°C Operating temperature
- Optional isolated DI (8-channel) and isolated DO (8-channel)

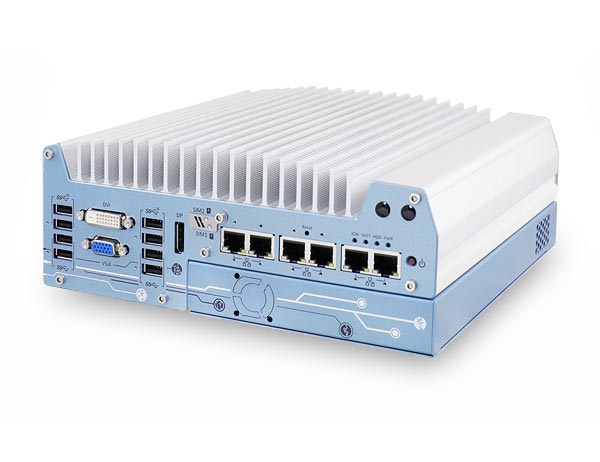

Nuvo-7000 Serie
- Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 64 GB DDR4-2400 RAM
- 4x USB 3.1, up to 6x (PoE) Ethernet Ports, DP, VGA, and DVI connections
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key Slot
- Fanless operation with a wide temperature range of -25°C to 70°C
- Expansion cassette and MezIO interface for functionality extension

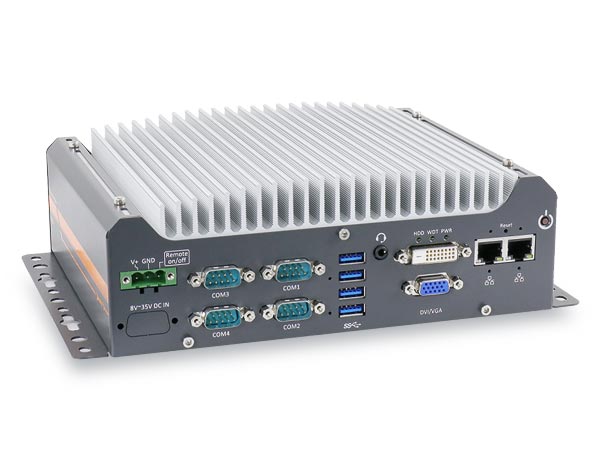

Nuvo-7501
- Intel® 9th/8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 SDRAM
- 4x USB 3.1 Gen 1, VGA, DVI-D, 6x COM ports, 1x audio, and 2x Gigabit Ethernet
- 1x 2.5" SSD, 1x M.2 2280 NVME
- Fanless, robust operation at -25°C to 60°C
- Compact dimensions
- Wall and DIN-rail mounting options
- Certified to MIL-STD-810G, EN 55032, and EN 55024

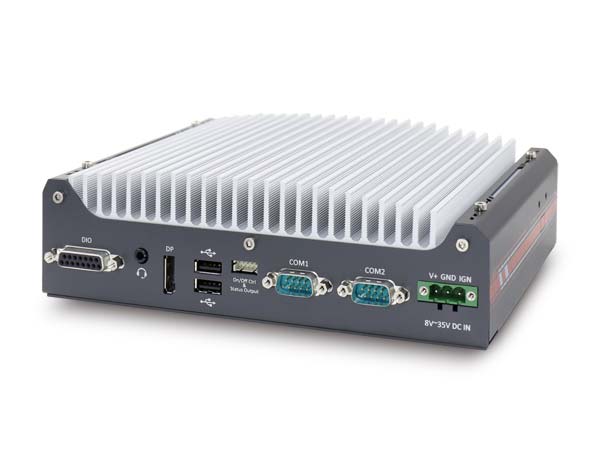

Nuvo-7531
- Intel® 9th/8th Gen Core™ CPU
- Up to 32GB DDR4-2666 SDRAM
- 4x USB 3.1, 2x USB 2.0, DVI-I, VGA, 2 serial ports
- 4x Gigabit Ethernet
- 1x 2.5" SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation and space-saving low-profile design
- Certified to MIL-STD-810G, EN62368-1, EN 55032, and EN 55024
Nuvo-9000 Series
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 64GB DDR5-4800 RAM
- 6x USB 3.2, 2x USB 2.0, 1x USB-C
- Up to 6x 2.5G Ethernet (PoE+) ports
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
- Robust and fanless, operating temperature range from -25 °C to 70 °C
- Expansion cassette and MezIO interface

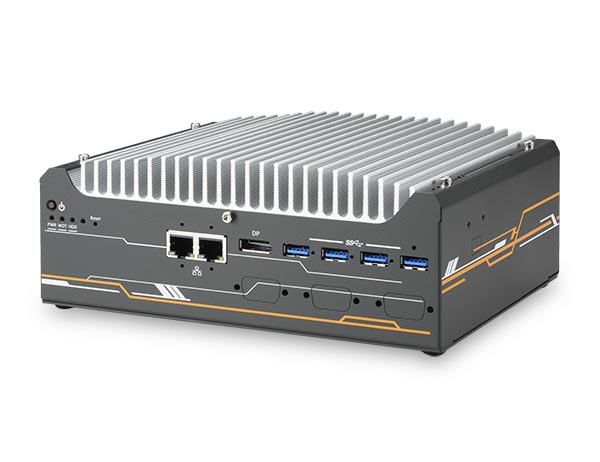

Nuvo-9501
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2 Gen2, 2x USB 2.0, 1x VGA, 1x DisplayPort
- 2x 2.5G Ethernet, 2x serial interfaces, 4x additional possible
- 1x internal 2.5" SSD, 1x M.2 2280 NVME
- Optional 4-CH isolated DI and 4-CH isolated DO
- Fanless operation from -25°C to 60°C

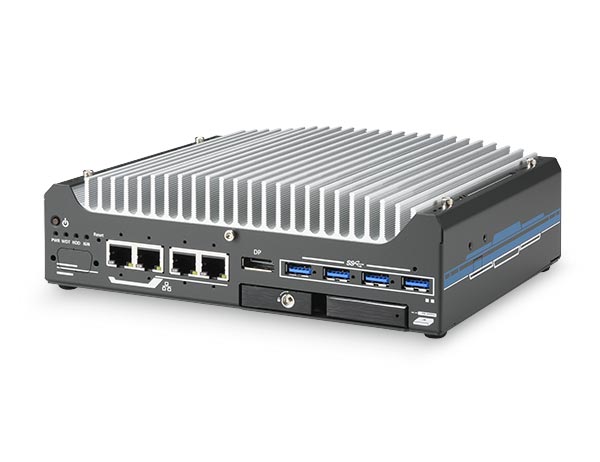

Nuvo-9531 Serie
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2, 2x USB 2.0, VGA, DisplayPort
- 4x 2.5G Ethernet, 2x serial interfaces
- 1x 2.5" internal SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation from -25°C to 60°C
Nuvo-9650AWP
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 96 GB DDR5-4800 SDRAM
- USB 3.1, 2.5G / Gigabit Ethernet, RS232/422/485
- Water and dustproof according to IP66
- Ports via waterproof M12 connectors
- 8 - 48 V DC wide range input with ignition control
- Certified to MIL-STD-810H and CE/FCC

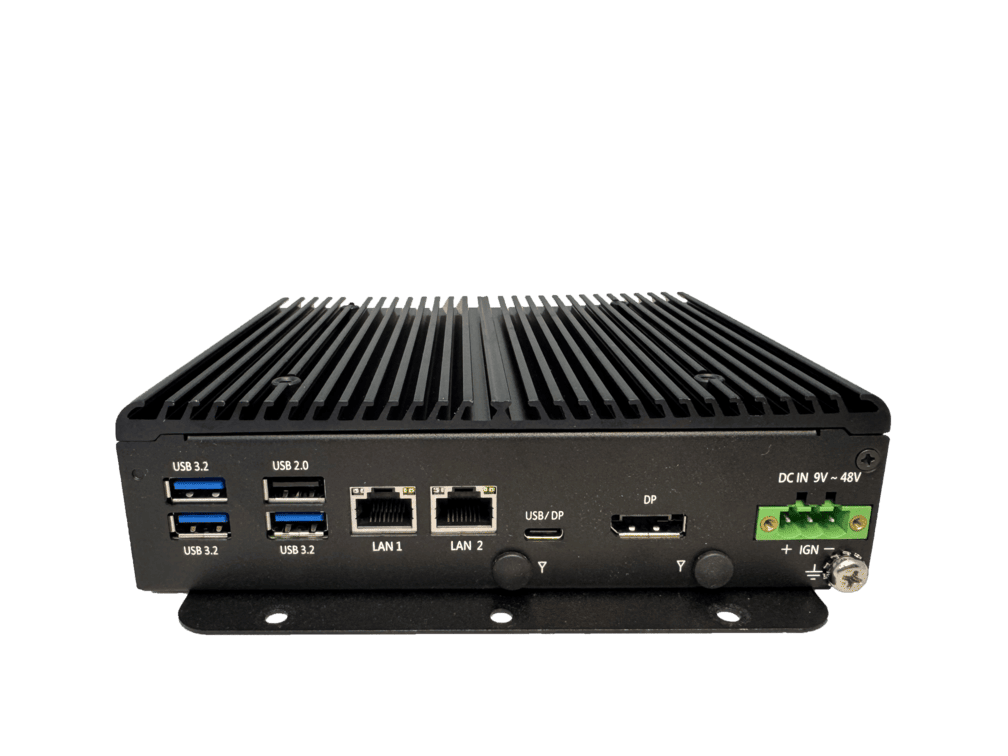

PM-2200 Serie
- Intel Alder Lake N97 / Coreâ„¢ i3-N305 CPU
- Bis zu 16 GB DDR5 RAM
- 1x M.2 NVME, 1x 2,5" SSD
- USB 3.2, DP 1.4, 2x serielle Schnittstellen
- Lüfterloser Betrieb bei -40 ~ 70 °C
- 9-48V Weitbereichseingang mit optionaler Ignition Control

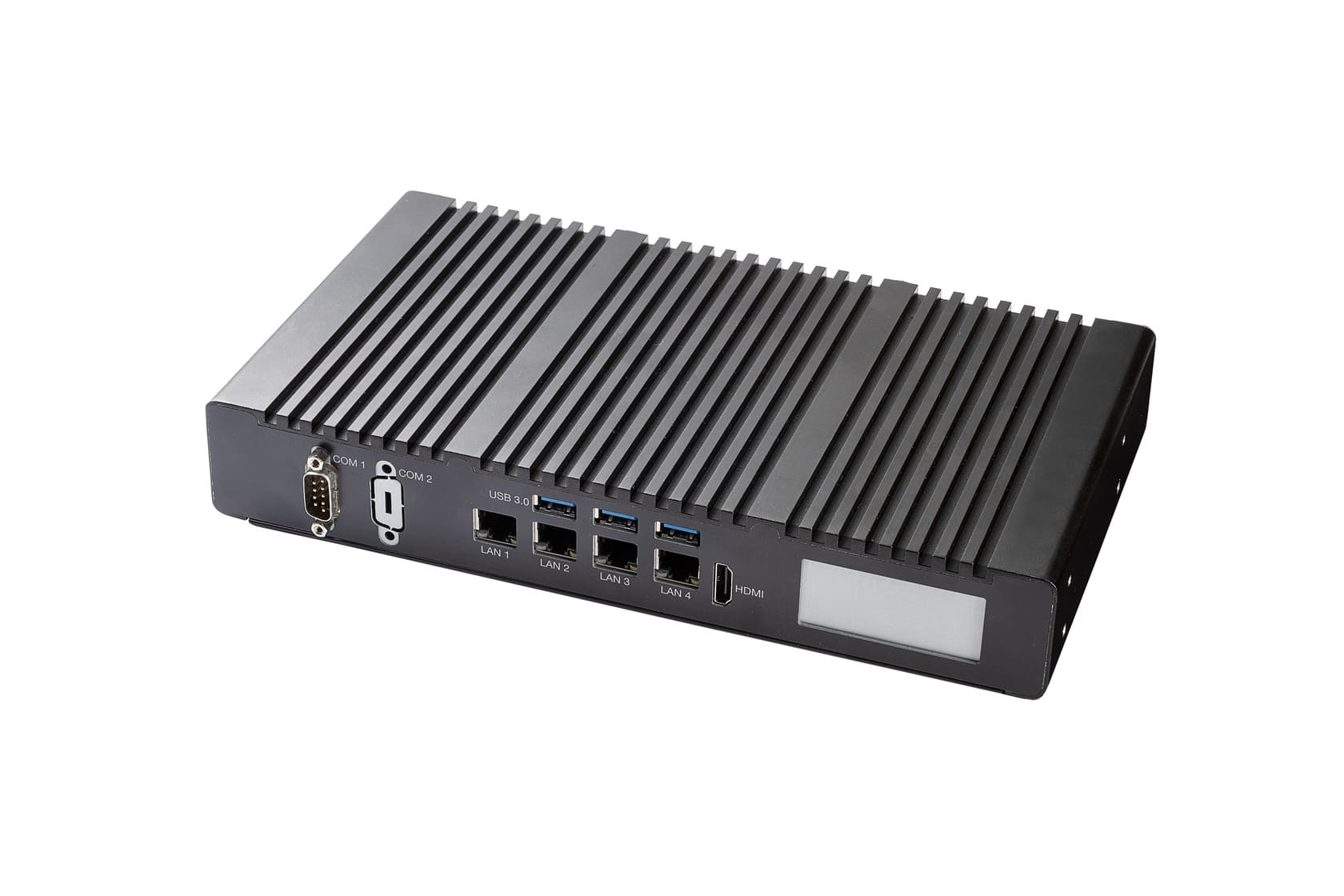

Prime Box Connect
- Intel CELERONâ„¢ 4305UE Prozessor
- Bis zu 32 GB DDR4 RAM
- mSATA SSD
- Bis zu 6x LAN-Schnittstellen mit 2.5G / Gigabit
- WLAN, Bluetooth, LTE, CAN, etc. individuell ErweiterbarÂ
- Wand- oder Rackmontage möglich
- Geringe Leistungsaufnahme (50W)
- Robustes lüfterloses Design

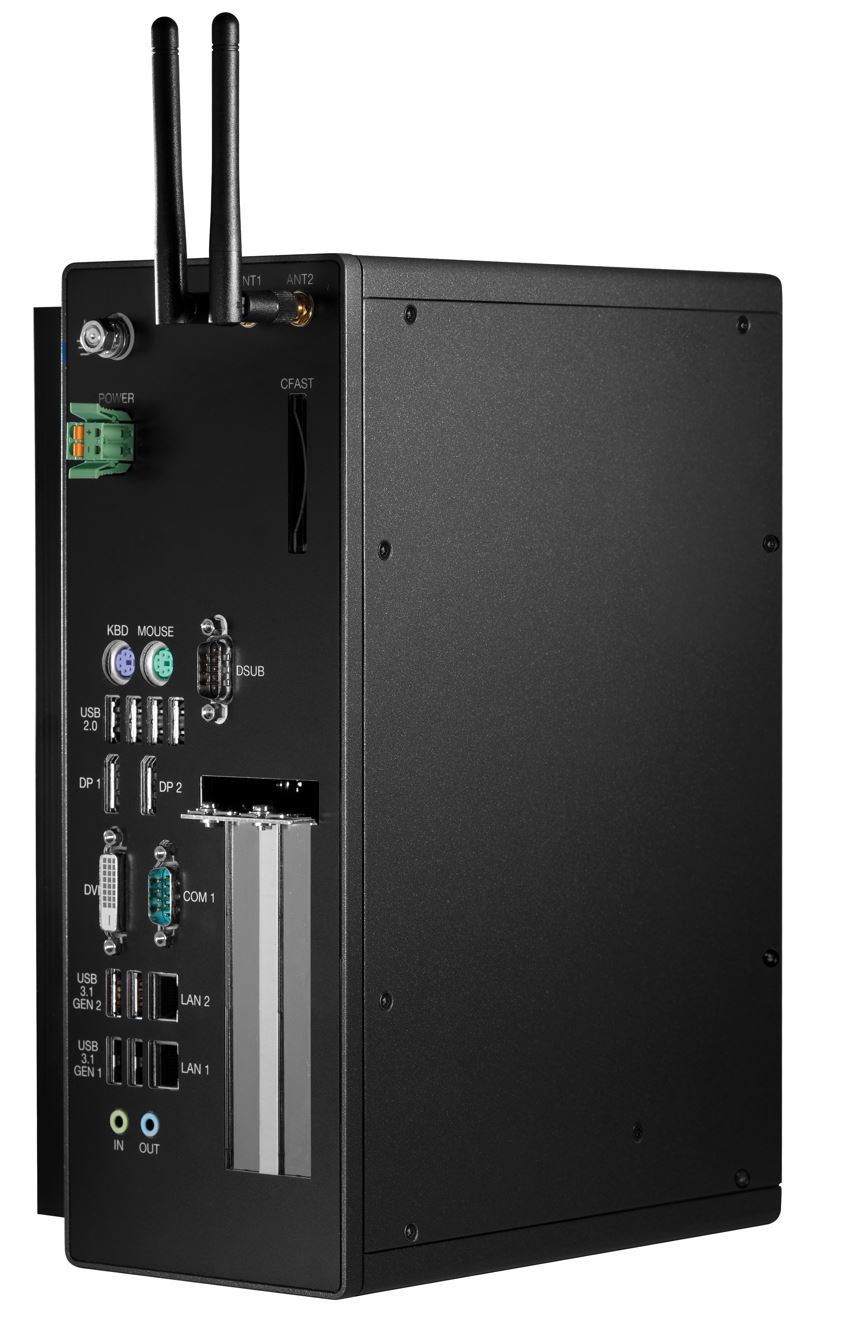

Prime Box Performance
- 9th/8th Gen Intel® Core™ i3/i5/i7 CPU
- Up to 64GB DDR4-2666 RAM
- 2x 2.5" SSD (RAID 0/1), 1x M.2 NVME
- 4x USB 3.1/2, 2x GbE LAN, 2x DisplayPort, 1x DVI-D
- 1x PCIe x16 slot for expansions
- Wi-Fi, Bluetooth, and cellular via mPCIe available
- Fanless operation from -10 to 50°C
- CE, UL, EN 55024, EN 61000-6-2, and other certifications

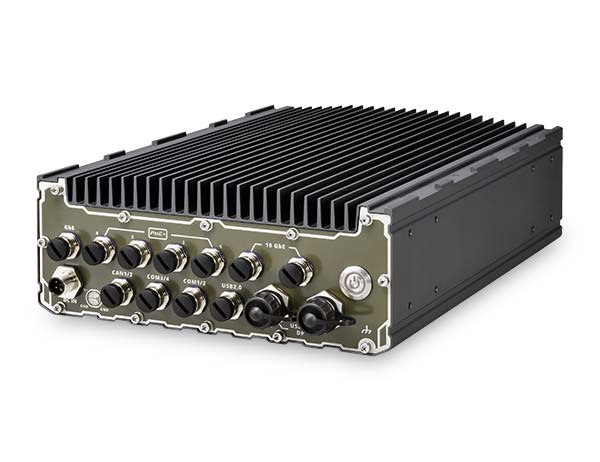

SEMIL-2000 Serie
- Intel® 12th/13th/14th Gen Core™ CPU
- Up to 64 GB DDR5 RAM
- Waterproof M12 connectors
- 7x Ethernet ports, four of which are PoE+
- Extremely robust IP69K waterproof industrial PC
- Supports an NVIDIA L4 GPU
- 8V - 48V DC input, with reverse polarity protection and integrated ignition control
- MIL-STD-810H compliant
