HMI Panel-PC – Intuitive Mensch-Maschine-Schnittstellen für die Industrie
OMTEC bietet industrielle HMI Panel-PCs für die direkte Maschinen- und Anlagenbedienung. Unsere Systeme ersetzen konventionelle Bedienpulte durch leistungsfähige Touch-Interfaces – lüfterlos, vibrationsfest und ausgelegt für den Dauerbetrieb in rauen Produktionsumgebungen.
Einsatzbereiche:
HMI Features
HMI for Harsh Environments
HMI Panel PCs enable seamless, user-friendly interactions between humans and machines, even in harsh environments, serving as "Human Machine Interface" solutions. They provide user-friendly interfaces and enhance workflow efficiency.
The multitouch technology of HMI Panel PCs allows for intuitive operation and precise control. Clear, high-contrast displays with screen sizes ranging from 7 to 24 inches ensure excellent readability.
HMI Panel PCs for harsh environments are designed as "embedded" Panel PCs for commercial and industrial settings. They must withstand the ingress of dust, dirt, and moisture. The enclosure design prevents the infiltration and accumulation of foreign substances in HMI Panel PCs.
The degree of resistance is classified by the DIN EN 60529 standard, "Degrees of Protection Provided by Enclosures," in IP protection ratings. IP stands for "Ingress Protection." Since this is an internationally recognized standard, IP is sometimes also interpreted as "International Protection."
IP Protection Ratings for HMI Panel PCs
HMI Panel PCs often meet the IP65 protection rating. The first digit of the protection rating represents protection against the ingress of foreign objects. The number 6 means "Complete protection against dust ingress (dust-tight)." In contrast, a 5 as the first digit would indicate that dust particles can enter the enclosure but cannot accumulate inside. The corresponding standard designation is "Protection against dust accumulation inside (dust-protected)." Thus, even for HMIs in harsh environments, protection levels are distinguished as "dust-protected" (limited protection) and "dust-tight" (maximum protection).
Another challenge for HMIs in harsh environments is moisture and splashing water. The second digit of the IP protection rating refers to protection against these factors. Specifically, the 5 in IP65 stands for "Protection against water jets (nozzle) from any direction." This means that not only "accidental spraying water" (e.g., protection rating IP64) but also intentionally directed water jets cannot penetrate the enclosure.
Typische HMI-Anwendungen in der Industrie
Maschinenbedienung
Direkter Ersatz für Taster-Panels und proprietäre HMI-Terminals. Der Panel-PC steuert CNC-Maschinen, Verpackungsanlagen oder Pressen über Touch-Oberflächen mit frei konfigurierbaren Bedienseiten.
SCADA & Prozessvisualisierung
Echtzeit-Darstellung von Produktionslinien, Temperaturverläufen, Füllständen und Alarmen. HMI Panel-PCs liefern die Rechenleistung für grafisch anspruchsvolle SCADA-Systeme mit historischen Trends und Reporting.
MES & Werkerführung
Arbeitsanweisungen, Stückzahlerfassung und Qualitätsprüfungen direkt am Arbeitsplatz. Der Panel-PC verbindet das MES-System mit dem Werker – Schritt-für-Schritt-Anleitungen, Barcode-Scan und digitale Unterschrift auf einem Gerät.
Leitstand & Überwachung
Zentrale Anlagenüberwachung mit mehreren Prozessbildern. Großformatige Panel-PCs ab 21,5" zeigen Gesamtanlagen-Status, Energieverbrauch und OEE-Kennzahlen – bedienbar über Touch oder externe Eingabegeräte.
- Intel® 11th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB RAM
- 1x CFast, 1x M.2 2280 NVMe
- 4x USB 3.2, 2x 2.5 GbE LAN, DisplayPort, HDMI
- 10.1" Capacitive TFT LCD Display with a Resolution of 1280 x 800p
- Wide Operating Temperature Range from -40°C to 70°C
- Intel® 9th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB DDR4 RAM
- 1x M.2 2280 NVMe, optional externally accessible 2x 2.5" SSD
- 15" LCD Display with 768p Resolution
- 4x USB 3.1, 2x Gigabit LAN, 3x DisplayPort
- Fanless Rugged Design
- Operating Temperature Range of -20 ~ 70°C
- Intel® 12th Gen Core™ i3/i5/i7 CPU
- Up to 64GB RAM
- 2x 2.5" SSD, 1x M.2 2280 NVMe
- USB 3.2, 2x 2.5G Ethernet, 2x DisplayPort
- Front-side IP65 Protection
- 15" Capacitive LCD Display with a Resolution of 1024 x 768
- Wide Operating Temperature Range from -30 to 70°C
- Intel® 11th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB RAM
- 1x 2.5" SSD, 1x M.2 2280 NVMe
- 4x USB 3.2, 2x 2.5 GbE LAN, DisplayPort, HDMI
- 15.6" Capacitive TFT LCD Display with a Resolution of 1920 x 1080p
- Wide Operating Temperature Range from -40°C to 70°C
- Intel® 12th Gen Core™ i3/i5/i7 CPU
- Up to 64GB RAM
- 2x 2.5" SSD, 1x M.2 2280 NVMe
- USB 3.2, 2x 2.5G Ethernet, 2x DisplayPort
- Front-side IP65 Protection
- 17" Capacitive LCD Display with a Resolution of 1280 x 1024
- Wide Operating Temperature Range from -30 to 70°C
- Intel® 11th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB RAM
- 1x 2.5" SSD, 1x M.2 2280 NVMe
- 4x USB 3.2, 2x 2.5 GbE LAN, DisplayPort, HDMI
- 17" capacitive TFT LCD display with a resolution of 1280 x 1024p
- Wide temperature range from -40°C to 70°C
- Intel® 11th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB RAM
- 1x 2.5" SSD, 1x M.2 2280 NVMe
- 4x USB 3.2, 2x 2.5 GbE LAN, DisplayPort, HDMI
- 18.5" Capacitive TFT LCD Display with a Resolution of 1920 x 1080p
- Wide Operating Temperature Range from -40°C to 70°C
- Intel® 9th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB DDR4 RAM
- 1x M.2 2280 NVMe, optionally externally accessible 2x 2.5" SSD
- 21.5" LCD Display with 1080p Resolution
- 4x USB 3.1, 2x Gigabit LAN, 3x DisplayPort
- Fanless Rugged Design
- Intel® 12th Gen Core™ i3/i5/i7 CPU
- Up to 64GB RAM
- 2x 2.5" SSD, 1x M.2 2280 NVME
- USB 3.2, 2x 2.5G Ethernet, 2x DisplayPort
- Front-side IP65 protection
- 21.5" capacitive LCD display with a resolution of 1920 x 1080
- Wide temperature range from -30 ~ 70°C
- Intel® 9th Gen Core™ i3/i5/i7 Processor
- Up to 64 GB DDR4 RAM
- 1x M.2 2280 NVME, optional 2x 2.5" SSD externally accessible
- 23.8" LCD Display with 1080p Resolution
- 4x USB 3.1, 2x Gigabit LAN, 3x DisplayPort
- Fanless, rugged design
- Intel® 8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 RAM
- 1x 2.5" SSD and 1x M.2 NVME
- Front-side protection class IP65
- 15.6" 1920 x 1080p capacitive touch display
- Fanless modern design Made in Germany
- Front-side mounting option using mounting clamps
- Intel® 8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 RAM
- 1x 2.5" SSD and 1x M.2 NVME
- Front-side protection class IP65
- 18.5" 1920 x 1080p capacitive touch display
- Fanless modern design Made in Germany
- Front-side mounting option using mounting clamps
- Intel® 9th/8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 RAM
- 1x 2.5" SSD and 1x M.2 NVME
- Front-side protection class IP65
- 21.5" 1920 x 1080p capacitive touch display
- Fanless modern design Made in Germany
- Available as built-in or mounting version
- With various certifications
- Intel® Atom x7-E3950 Quad Core CPU, 1.6 GHz
- Up to 8GB DDR3L RAM
- mSATA flash storage up to 512GB
- Front-side protection class IP65
- 10.1" 1280 x 800p capacitive touch display
- Fanless modern design
- Front-side mounting option using mounting clamps
- Intel® Atom x7-E3950 Quad Core CPU, 1.6 GHz
- Up to 8GB DDR3L RAM
- mSATA flash storage up to 512GB
- Front-side IP65 protection rating
- 13.3" 1920 x 1080p capacitive touch display
- Fanless modern design Made in Germany
- Available as built-in or mounted version
- Intel® Atom x7-E3950 Quad Core CPU, 1.6 GHz
- Up to 8GB DDR3L RAM
- mSATA flash storage up to 512GB
- Front-side IP65 protection rating
- 15.6" 1920 x 1080p capacitive touch display
- Fanless modern design made in Germany
- Available as built-in or mounted version

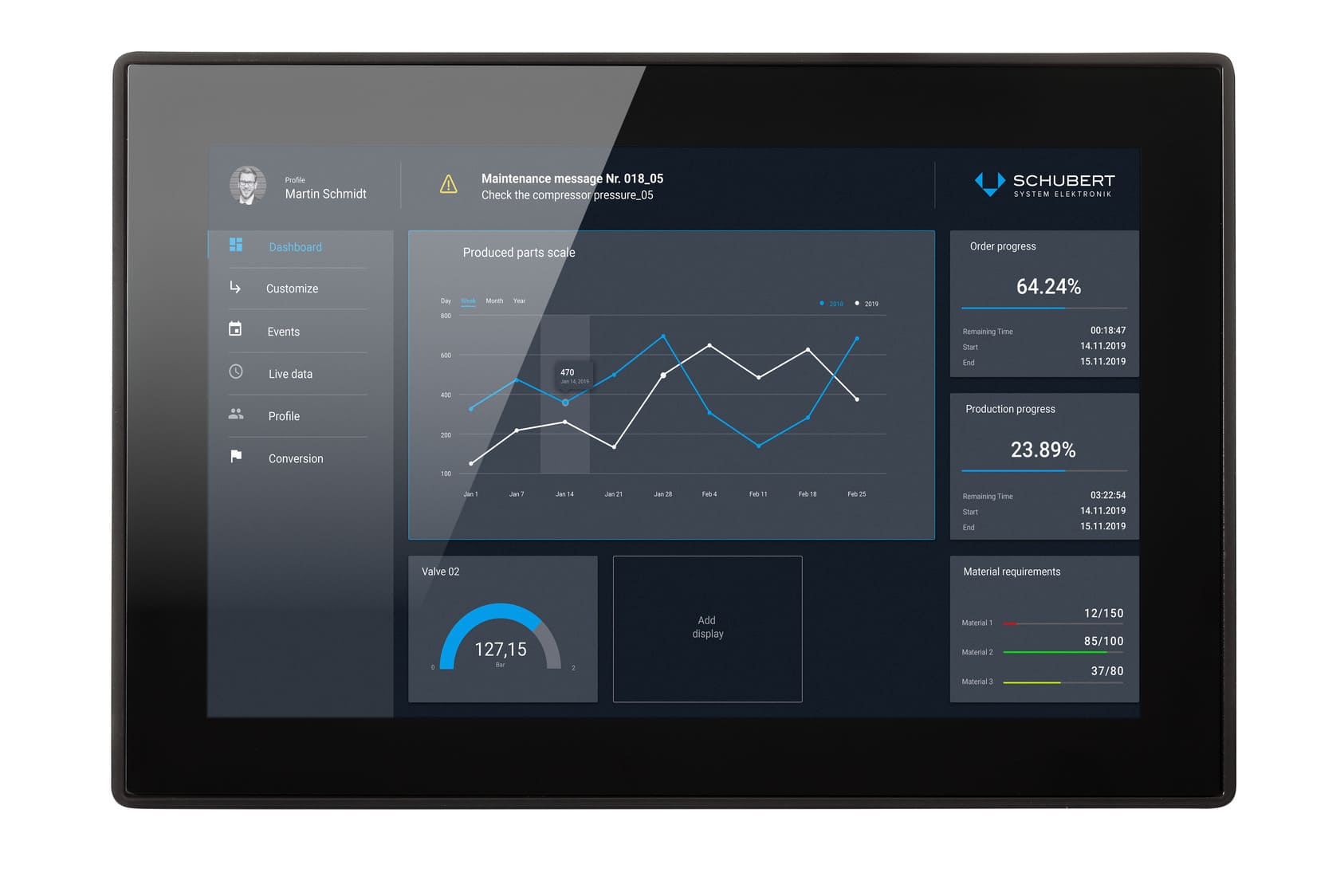

- 10.1" HMI panel for web visualisation
- 1280 x 800p capacitive WXGA display
- ARM64 i.MX 8M Plus quad CPU
- 2 GB RAM, 8 GB eMMC flash memory
- 1x USB-C, 1x USB 2.0, 1x GbE Ethernet (PoE)
- With Prime OS Client operating system and integrated web server
- Power supply via PoE++
- Intel® Core™ i5/i7 10th Generation Processor
- Up to 32 GB DDR4 RAM
- 1x M.2 2280 NVMe and 1x SATA 2.5" SSD/HDD Slot
- 4x USB 3.0, 2x LAN, 1x HDMI, 1x DisplayPort
- Resolution of 1920 x 1080p
- Temperature range from 0 °C to 50 °C
- VESA standard mount
- IP65-rated front, IPX1 rated enclosure
- Intel® Core™ i3/i5/i7/Pentium/Celeron CPU
- Bis zu 32GB RAM
- 19" kapazitiver 1024p SXGA TFT Touchscreen
- Gigabit Ethernet, USB 2.0 / 3.0, HDMI/DVI, COM
- Frontseitig IP65, Aluminiumgehäuse
- Robustes, lüfterloses Design, VESA Mount
FAQ – HMI Panel-PCs
Antworten zu Mensch-Maschine-Schnittstellen, Einbau, Software-Kompatibilität und Touch-Technologien.
