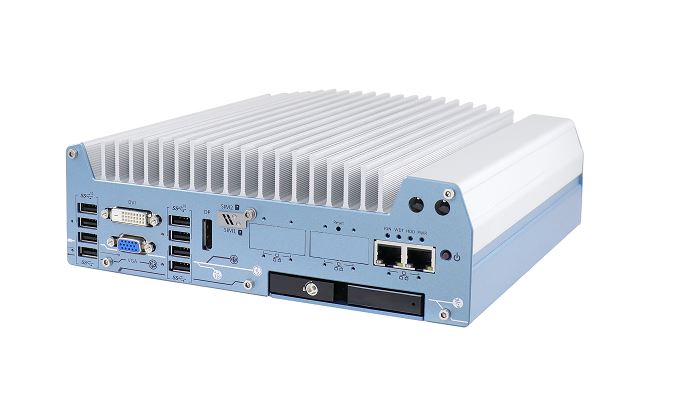

Nuvo-7006E-PoE
Lüfterloser Embedded-PC mit Intel Core i7 / i5 / i3 CPU der 9./8. Generation
Features
- Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 64 GB DDR4 2666/2400 SDRAM (two SO-DIMM slots)
- 4x USB 3.1, DP, VGA, and DVI connections
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key Slot
- Fanless operation with a wide temperature range of -25°C to 70°C
- PCIe cassette and MezIO interface for functionality extension
- 6x Gigabit Ethernet ports, 4 of which have PoE+ functionality
Product information "Nuvo-7006E-PoE"
Experience the innovation of the Neousys Nuvo-7006E an outstanding embedded industrial PC designed for applications in industrial automation, surveillance, and AI-based systems. This groundbreaking system sets standards in connectivity and performance.
- Intel® Core™ Processors 8th/9th Generation: The Nuvo-7006E is powered by powerful Intel® Core™ processors from the 9th generation, providing outstanding computing power and reliability.
- Exceptional Industrial Design: The Nuvo-7006E is designed for use in challenging industrial environments, meeting the highest standards for temperature resistance, vibration, and shock resistance to ensure reliable performance.
- Future-Ready Graphics Performance: The integrated Intel® UHD Graphics ensures impressive image quality and effortlessly supports multiple displays, optimizing visualization in demanding applications.
- Versatile Expansion Options: With a wide range of PCIe slots, the Nuvo-7006E offers flexible expansion options to meet individual requirements.
- Cross-Compatible: This embedded PC is compatible with a variety of operating systems, allowing seamless integration into existing systems.
The Neousys Nuvo-7006E redefines the standards for powerful embedded PCs in a new way. Experience the future of industrial automation with this groundbreaking system that combines advanced technology and robust design at the highest level. Harness the unique performance and versatility of the Nuvo-7006E for your individual industrial applications.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Chipset: | Intel® Q370 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Intel AMT: | AMT 12.0 |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount |
| Operating system: | Windows 10, Windows 10 IoT, Windows 11 |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | TPM 2.0 |
| USB: | USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort, VGA |
