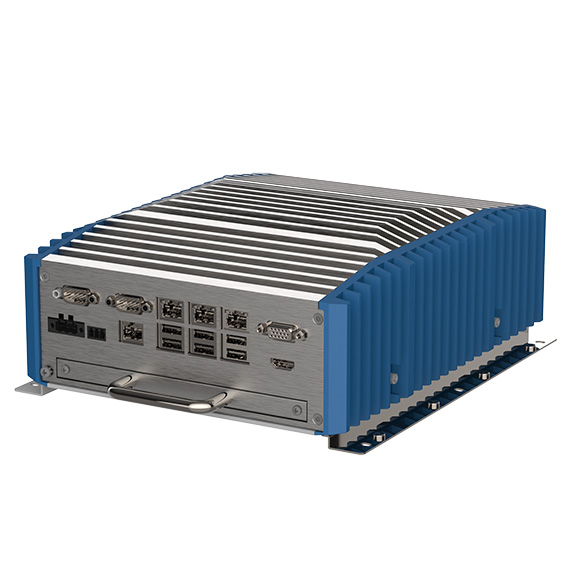

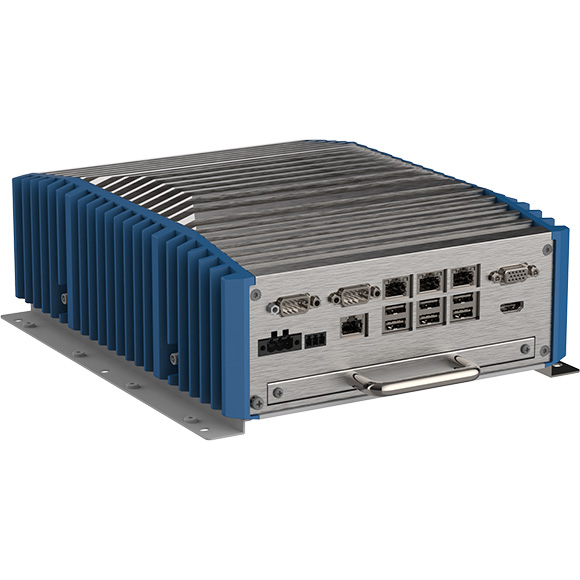

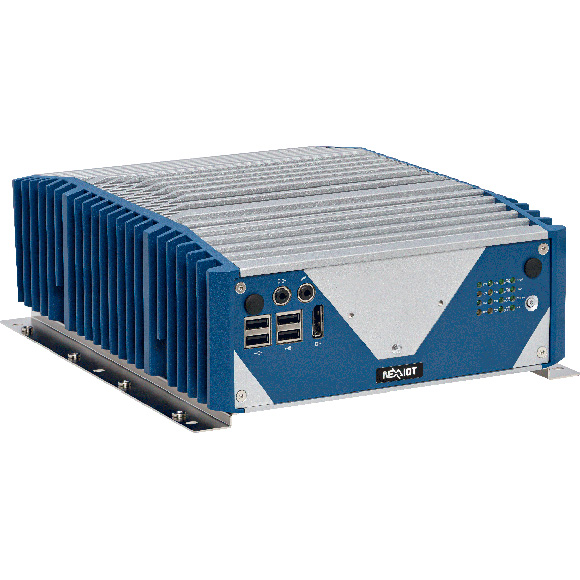

NISE 3910R
12/13th Gen Intel® Core™ i3/i5/i7/i9 fanless System for IoT-Automation
Features
- Supports Intel® Core™ i3/i5/i7/i9 LGA1700 socket types of the 12th and 13th generation
- Intel® Q670E PCH
- Supports 2 x DDR5 SO-DIMM sockets, up to 64 GB
- Four Intel® i226-IT LAN ports with support for WoL, teaming, and PXE
- 1 x DP, 1 x HDMI, and 1 x VGA with independent display
- 1 x M.2 3042/3052 Key B for LTE/5G module
- 1 x externally accessible M.2 2242 Key M with PCIe x4, support for NvME
- 6 x USB 3.2 Gen 1, 4 x USB 2.0
- 2 x isolated RS232/422/485 with auto-flow
- 1 x Mini-PCIe slot, supports optional Wi-Fi, 3.5G, 4G LTE, mSATA
- 2 x 2.5" SATA HDD/SSD
- TPM 2.0 onboard by default
Product information "NISE 3910R"
The NISE 3910 is equipped with Intel® Core™ i9/i7/i5/i3 processors of the 12th and 13th generation and is specifically designed for industrial automation and edge computing applications. It stands out with high CPU and graphics performance, enabling it to handle demanding tasks effortlessly.
Main Features of the NISE 3910
- Supports up to 64 GB DDR5 memory for maximum performance.
- Flexibility in storage devices: options for M.2, HDD, SSD, and mSATA.
- Wide voltage range: +12V to +30V DC input.
- Extended temperature range: operation possible between -20°C and +60°C.
Expansion Options
For IoT and wireless applications, the NISE 3910 offers:
- An internal Mini-PCIe socket to support Wi-Fi, 3.5G, and 4G LTE modules (optional).
- An M.2 3052 Key B interface for the integration of 5G modules.
Application Areas
The fanless industrial PC NISE 3910 is the ideal choice for companies seeking reliable and high-performance hardware for industrial automation, edge computing, and IoT applications.
Technical details
| Audio: | 1x 3,5mm jack mic in & speaker out |
|---|---|
| COM-Ports: | 2 COM Ports |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Chipset: | Intel® Q670E |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 8-CH isolated DI und 8-CH isolated DO |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 2x DDR5 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -20°C ~ 60°C |
| Operating system: | Windows 10, Windows 10 IoT, Windows 11 |
| Power supply: | 12 ~ 30V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2x 2,5" SSD/HDD, M.2 2242 M Key NVMe, mSATA SSD |
| USB: | USB 3.2 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Video: | DisplayPort, HDMI, VGA |
