Area of application
Industry
Machine control
Image & video processing
Prime Box Performance
Robuster, leistungsstarker IPC Made in Germany mit 9./8. Gen Intel® Core™ CPU und bis zu 64GB RAM
Features
- 9th/8th Gen Intel® Core™ i3/i5/i7 CPU
- Up to 64GB DDR4-2666 RAM
- 2x 2.5" SSD (RAID 0/1), 1x M.2 NVME

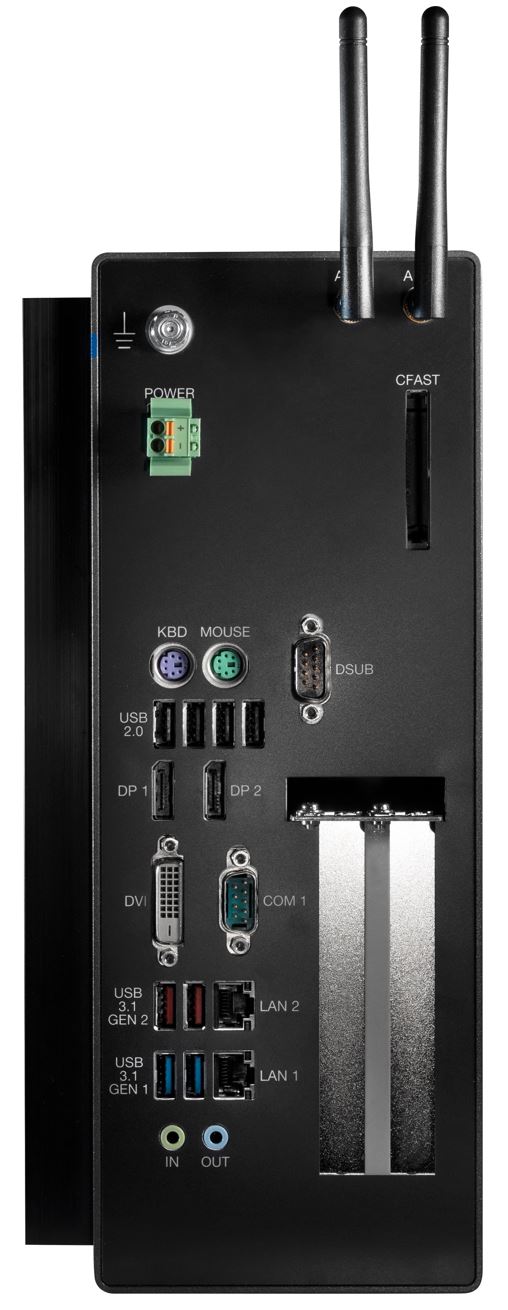

- 4x USB 3.1/2, 2x GbE LAN, 2x DisplayPort, 1x DVI-D
- 1x PCIe x16 slot for expansions
- Wi-Fi, Bluetooth, and cellular via mPCIe available

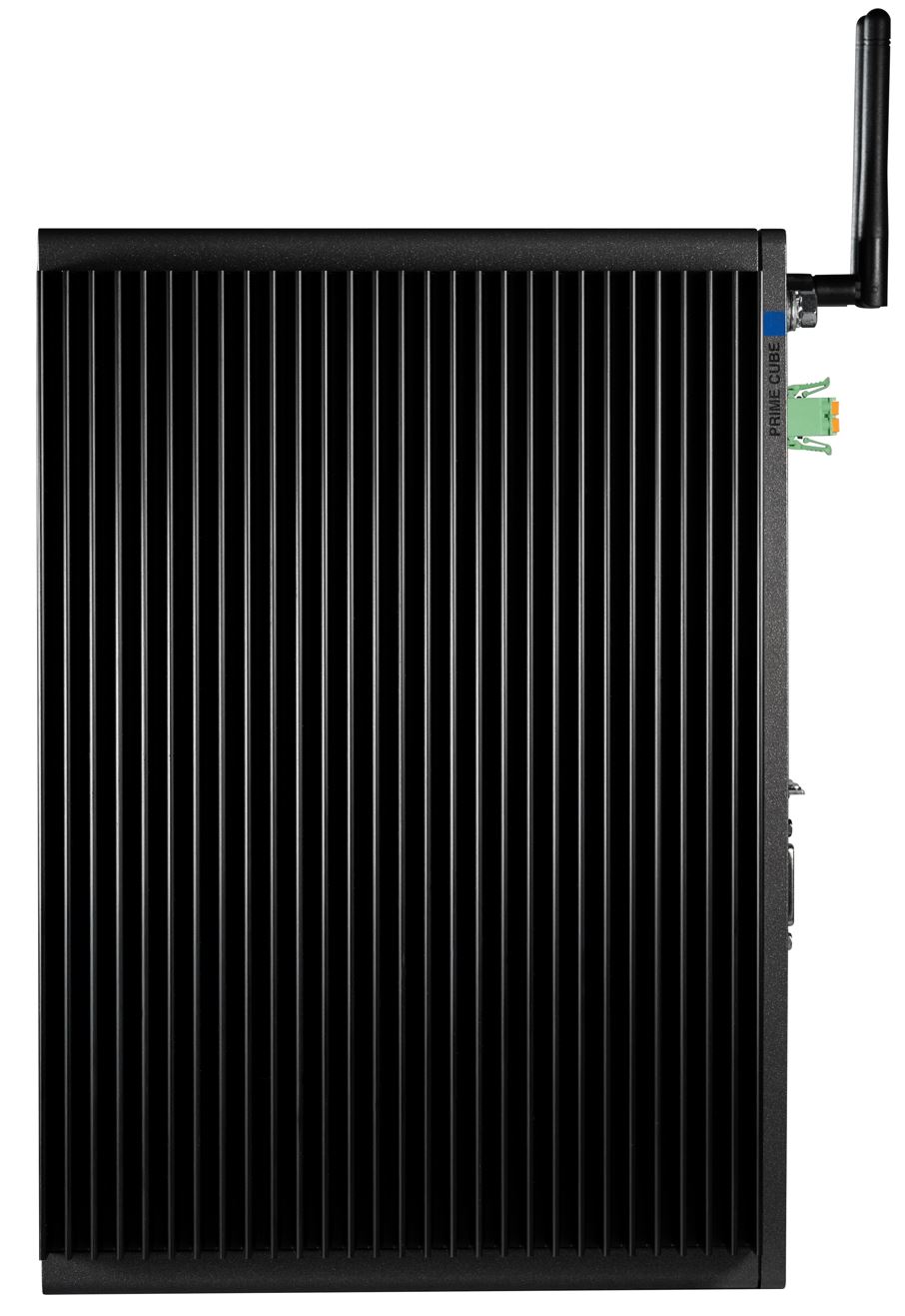

- Fanless operation from -10 to 50°C
- CE, UL, EN 55024, EN 61000-6-2, and other certifications
Product information "Prime Box Performance"

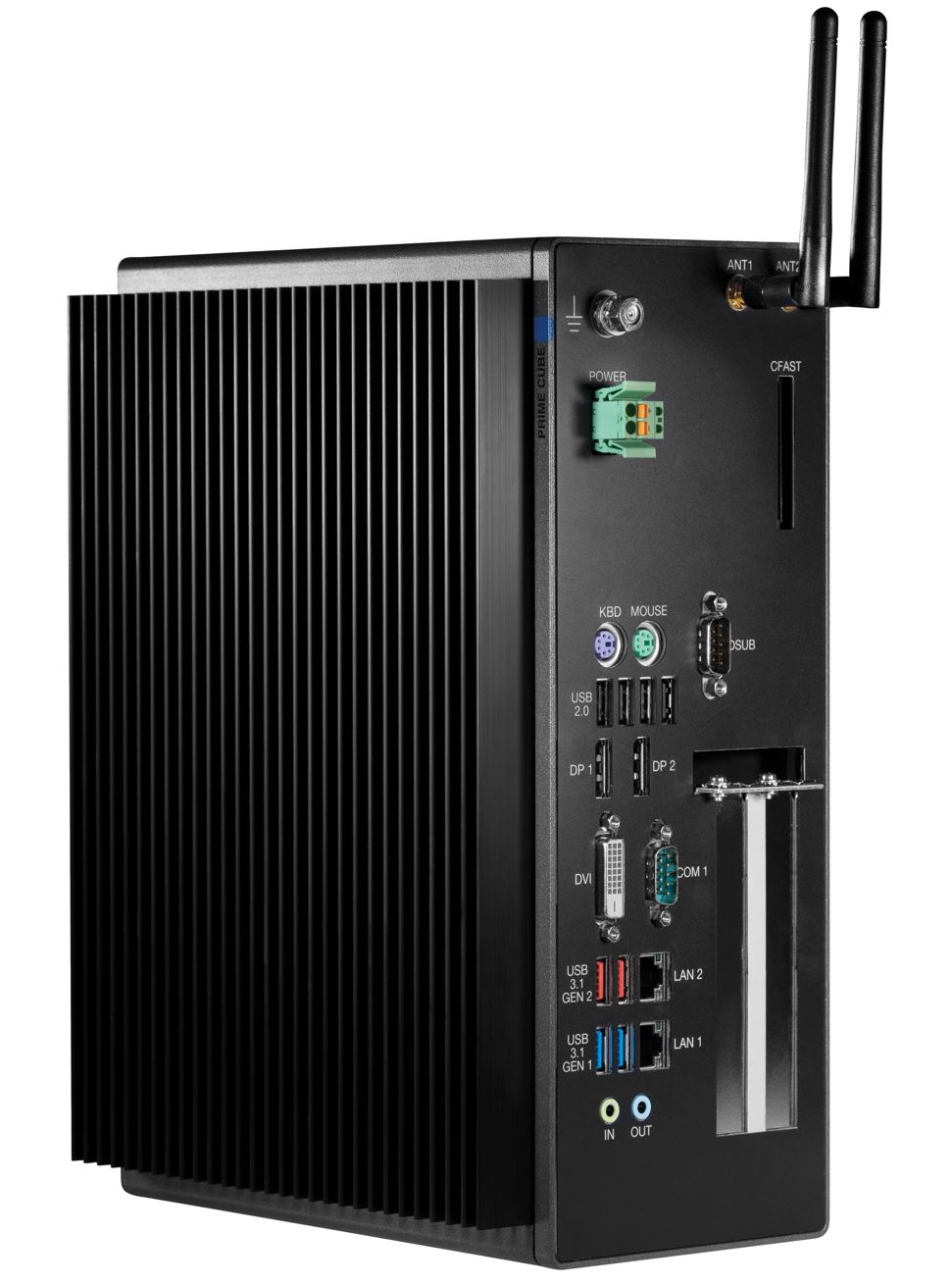

The Prime Box Performance from Schubert System Elektronik is an industrial box PC made in Germany for demanding tasks. With its modular design, it offers maximum flexibility and a wide range of ports for extensive connectivity. The high-quality build guarantees reliable and robust fanless operation in industrial environments, even in 24/7 operation. Equipped with an Intel Core i3 / i5 / i7 processor of the 8th/9th generation and up to 64 GB of RAM, as well as a modern M.2 SSD, it provides maximum performance in a compact space. All these factors make the Prime Box Performance the optimal industrial PC made in Germany for all conceivable applications. Contact us for a tailored offer to meet your specific needs!
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | Microphone input, Speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron® |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | EN 55024, EN 55032 Klasse A, EN 60068-2-6, EN 60068-2-27, UL 61010-2-201 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -10°C ~ 50°C |
| Operating system: | Linux, Windows 10 IoT |
| Power supply: | 18 ~ 36V DC |
| RAID: | RAID 0, RAID 1 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| USB: | USB 2.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort |
