Neousys Technology

Company Introduction

Neousys Technology Inc. was founded in 2010 in Taipei, Taiwan, and has been developing rugged and embedded industrial PC systems for a wide range of industrial, commercial, and scientific applications ever since.

Forward-looking innovations are integrated by Neousys into simple yet robust hardware architectures.

Neousys has established a global sales network with sales and customer services in more than 40 countries. In addition to its headquarters in Taipei, Neousys also has centers in Shanghai and Chicago.

Neousys has received multiple awards for "Excellence in Global Trading." James Gau, CEO of Neousys, emphasizes: "We are delighted to share our extensive expertise with our customers. Our patented technologies help our customers stay at the forefront of innovative solutions and groundbreaking applications."

Categories

Neousys offers solutions for the entire industrial and commercial sector, including:

  • Fanless computers for extended temperature ranges
  • Rugged industrial PCs as embedded systems for harsh environments
  • Machine vision / image processing platforms with multiple GigE / PoE ports
  • Fanless vehicle PCs
  • Ultra-compact, fanless controllers
  • GPU computing

Neousys Authorized Channel Partner

We are a certified specialist dealer for all Neousys products!

Filter
NRU-52S Serie
  • NVIDIA® Jetson Orinâ„¢ NX or Xavierâ„¢ NX SOM with JetPack Toolkit
  • 4x IEEE 802.3bt PoE++ GbE ports
  • 2x Mini-PCIe sockets for Wi-Fi/GNSS/NVMe/CAN modules
  • 1x 3042/3052 M.2 B Key socket for mobile 4G/5G communication
  • DC input, 8 to 35 V, with integrated ignition control
  • MIL-STD-810H and EN 50155 certification

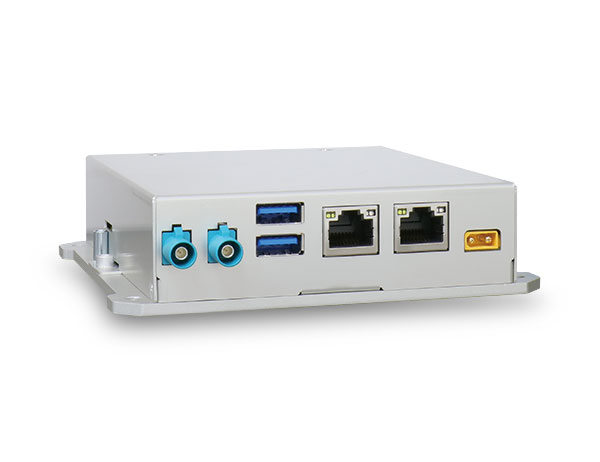

FLYC-300
  • Extremely lightweight at only 297g (345g including case)
  • Up to 100 TOPS GPU computing power thanks to NVIDIA® Jetson Orinâ„¢ NX
  • 2x GMSL2 camera ports, CAN bus, GPIO, and UART
  • 2x GbE, 2x USB 3.2, 1x DisplayPort, 1x M.2 2230 SSD
  • Built-in UART and CAN interface for controller
  • Supports 4G/5G communication via micro SIM socket
GT-92GC
  • Intel® 14th/13th/12th Gen LGA1700 processor (35W/65W)
  • Fanless GPU computer with NVIDIA® RTX 2000 ADA
  • 2U 19" chassis for rack-mount or wall-mount
  • 8V to 48V DC input via M12 L-Coded connector
  • 8x GbE PoE+, 1x GbE ports via M12 X-Coded connectors
  • On-board isolated CAN bus for in-vehicle communication
  • 1x M.2 2280 M Key with PCIe Gen 4x4 for NVMe storage
  • 2x full-size mPCIe sockets with internal SIM sockets
  • -25°C to 55°C fanless wide-temperature operation
GT-92RL-H
  • Compliant with EN 50155 mandatory tests and EN 45545-2
  • Intel® 14th/13th/12th Gen LGA1700 processor (35W/65W)
  • Fanless GPU computer with NVIDIA® RTX 2000 ADA
  • 2U 19" chassis for rack-mount or wall-mount
  • 43V to 160V DC input via M12 K-Coded connector
  • 9x GbE ports via M12 X-Coded connectors
  • 1x M.2 2280 M Key with PCIe-Gen 4x4 for NVMe storage
  • 2x full-size mPCIe sockets for MVB modules
  • -40°C to 55°C wide-temperature fanless operation
LTN-450 Serie
4-CH/2-CH constant current LED controller with support for 10A overdriving.
MezIO-C180-50
4x RS-232/422/485 and 4x RS-232 Ports via 68-Pin SCSI-II Connector
MezIO-D230-50
16-Channel Isolated DI and 16-Channel Isolated DO MezIO® Module
MezIO-G4
4-Port GbE MezIO Expansion Card with 9.5 kB Jumbo Frame Support
MezIO-U4
4-Port USB 3.1 Typ A MezIO® Modul with 5Gbps
MezIO-V20
MezIO® Module with 16 Operating Modes for Ignition Control Function in Vehicles
NRU-110V
  • NVIDIA® Jetson AGX Xavierâ„¢ SOM combined with JetPack 4.4
  • 32GB LPDDR4 SOM RAM
  • 1x 10 Gigabit Ethernet port
  • 1x M.2 2280 NVME
  • Mini-PCIe socket for a Wi-Fi or 4G module
  • 1x CAN 2.0 and 1x isolated DIO
  • Support for 8 GMSL vehicle cameras via FAKRA Z connectors

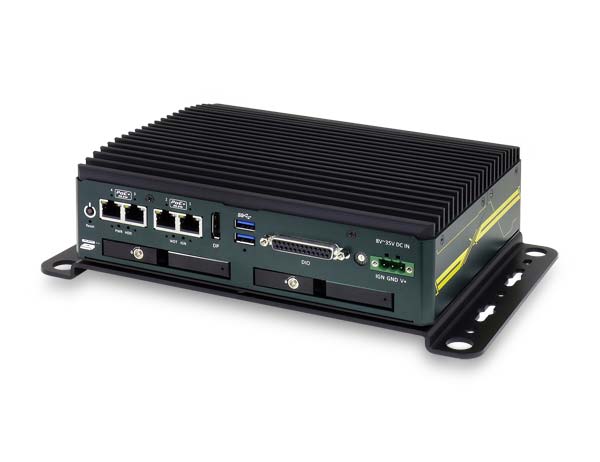

NRU-120S
  • NVIDIA® Jetson AGX Xavierâ„¢ SOM with JetPack 4.4
  • 32 GB LPDDR4 RAM
  • 4 IEEE 802.3at Gigabit PoE+ ports with screw lock
  • 1x M.2 NVME, 2x 2.5" SSD with front access
  • 1x isolated CAN bus connection, 1x RS232
  • Mini-PCIe port with SIM socket
  • 8 - 35V wide input range with ignition control
NRU-150 series
  • Powered by an NVIDIA® Jetson Orinâ„¢ NX SoM in combination with JetPack 5.1.1
  • Up to 16 GB LPDDR5 RAM
  • Up to 100 TOPS of computing power for AI inferencing
  • 4x PoE+ or 6x USB 3.2 for connecting cameras
  • RS-232/485 port
  • M.2 2242 M-Key NVME slot
  • Operating temperature range from -25 °C to 60 °C, fanless
NRU-220S Series
  • NVIDIA® Jetson AGX Orinâ„¢ SoM with JetPack 5.1.1
  • 32/64 GB LPDDR5 RAM
  • 6x Gigabit/2.5G Ethernet via RJ45 or M12
  • 1x M.2 2280 NVME SSD
  • 2x mini-PCIe for expansions such as Wi-Fi, CAN, etc.
  • Operating temperature -25°C to +70°C (fanless)
  • 8-48 V wide-range input with ignition control
NRU-230V-AWP
  • Powered by NVIDIA® Jetson AGX Orinâ„¢ SoM
  • IP66 waterproof and dustproof
  • Supports 8x GMSL2 automotive cameras via FAKRA Z connectors
  • 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
  • 2x isolated CAN 2.0, 1x RS232 and 1x isolated RS485 via M12 A-coded connectors
NRU-240S-AWP
  • Powered by NVIDIA® Jetson AGX Orinâ„¢ SoM
  • IP66 waterproof and dustproof
  • Supports 8x GMSL2 automotive cameras via FAKRA Z connectors
  • 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
  • 2x isolated CAN 2.0, 1x RS232 and 1x isolated RS485 via M12 A-coded connectors
NRU-51V Serie
  • NVIDIA® Jetson Orinâ„¢ NX / Xavierâ„¢ NX SOM with JetPack
  • Support for 4x GMSL2 vehicle cameras via FAKRA Z connectors
  • 1x 10GBASE-T 10Gb, 1x 1GBASE-T 1Gb Ethernet port
  • 2x Mini-PCIe sockets for Wi-Fi/GNSS/NVMe/CAN modules
  • 1x M.2 3042/3052 B Key socket for mobile 4G/5G communication
  • 1x isolated CAN 2.0, 1x COM port, and 1x GPS PPS input

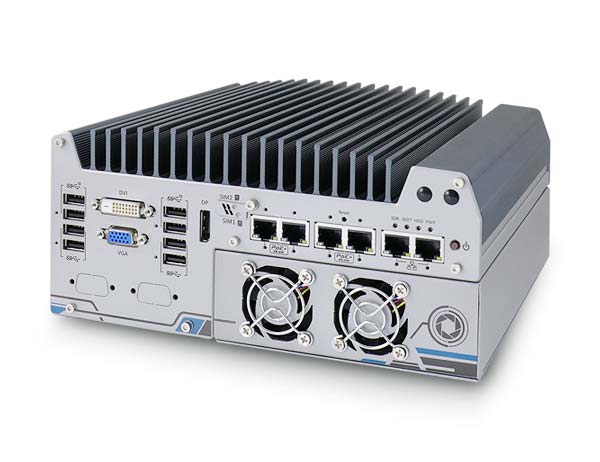

Nuvis-7306RT
  • Intel® 9th/8th Gen Coreâ„¢ i7/i5 CPU
  • Up to 64 GB SDRAM
  • 4x PoE+ ports for cameras
  • 8x USB 3.1 with screw lock connectors
  • 2x PCIe x16 slots for 120W GPUs or expansion cards
  • 2x 2.5" SSD, 1x M.2 2280 NVME
  • 1x Full-Size mSATA, 1x Full-Size mPCIe
  • Various machine vision-specific connections
  • Patented MCU-based real-time I/O
Nuvo-10000 Series
  • Up to seven PCIe/PCI slots for expansion cards despite compact dimensions
  • Intel® 14th/13th/12th Gen Coreâ„¢ i9/ i7/ i5/ i3, Pentium® and Celeron® CPU
  • Up to 64GB DDR5-4800 SDRAM
  • 8x USB 3.2 Gen2 ports, 1x 2.5G & 1x Gigabit Ethernet
  • 1x M.2 2280 NVME, 2x 2.5’ SSD with RAID
  • Supports one NVIDIA® graphics card up to 115W
  • EN & MIL-STD-810H certified
Nuvo-10000GC Series
  • Supports up to two RTX 350W graphics cards
  • Intel® 13th/12th Gen Coreâ„¢ i3/i5/i7/i9 CPU
  • Up to 128GB DDR5-4800 SDRAM
  • Up to 2x 2.5" SSD and 1x M.2 2280 NVME
  • 6x USB 3.2, 2x serial interfaces, VGA and Displayport
  • 3x Ethernet ports, optionally with 10G
  • 3 additional PCIe x8 slots for expansion cards
  • Operating temperature -25 °C to 60 °C

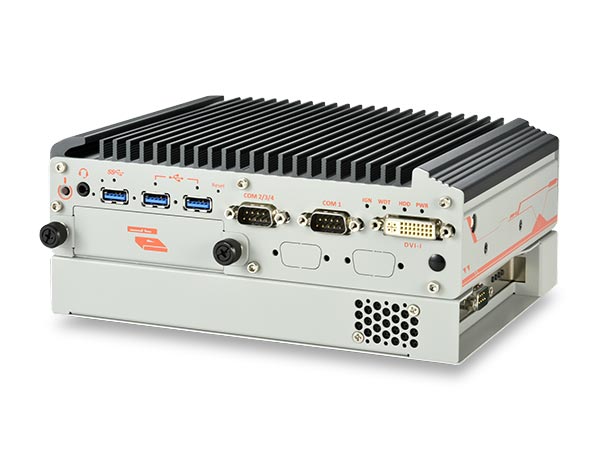

Nuvo-2600 Series
  • Intel® Elkhart Lake Atom® x6425E quad-core processor
  • Up to 32GB DDR4-3200 SDRAM
  • 3x USB, VGA, and DVI-I, 2x serial interfaces
  • Four (optional PoE+) Gigabit Ethernet ports
  • 4-CH isolated DI and 4-CH isolated DO
  • Optional with ignition control
  • Fanless operation from -25 to 70°C
  • With PCIe expansion cassette or 2500Ws UPS

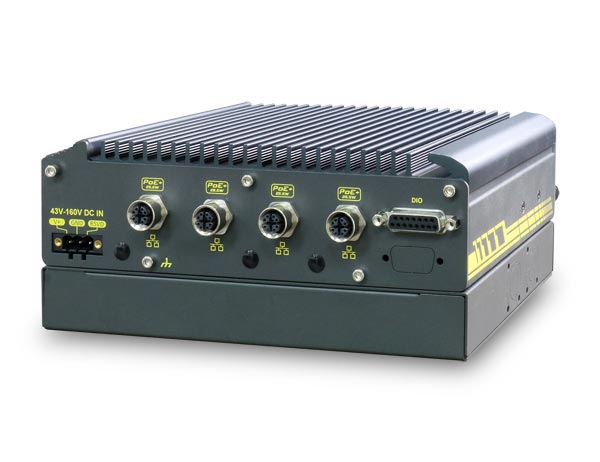

Nuvo-2615RL
  • Intel® Elkhart Lake Atom® x6425E CPU
  • Up to 32 GB DDR4-3200 RAM
  • USB 3.1, 2x COM, VGA and DVI-I
  • 4x M12 X-coded PoE+ Gigabit Ethernet
  • 1x 2.5’ SSD, 1x M.2 2280 NVME
  • 4-CH isolated DI and 4-CH isolated DO
  • Optionally with integrated 2500 Ws UPS
  • EN50155 & EN45545 certified railway computer

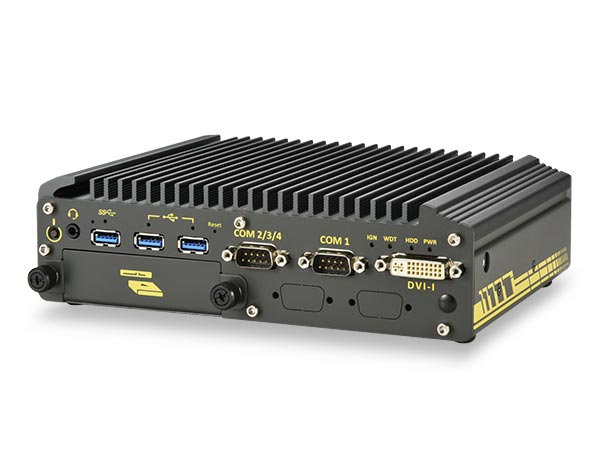

Nuvo-2610VTC Serie
  • Intel® Elkhart Lake Atom® x6425E quad-core processor
  • Up to 32 GB DDR4 RAM
  • Four GbE PoE+ ports via X-coded M12 connectors
  • 1x M.2 NVME, 1x 2.5" SSD
  • An M.2 3042/3052 B-key for mobile 4G/5G broadband connectivity
  • 2x Full-Size Mini-PCIe for Wi-Fi, CAN, or GNSS modules
  • Rugged, operating temperature range from -40°C to 70°C, fanless
  • Certified for E-Mark and EN 50155 EMC compliance
Nuvo-2700DS
  • AMD Ryzenâ„¢ Embedded V1605B CPU
  • Up to 64 GB DDR4 RAM
  • 1x M.2 3042/3052 B-key for 4G/5G module
  • 2x USB 3.1, 2x USB 2.0, 2x Gigabit Ethernet
  • 4x 4K DP display output, each with a resolution of 3840x2160
  • AI inference capability with 2 optional Google Edge TPUs
  • Flexible power input options: 12V mini-DIN or 8 - 35V terminal block
