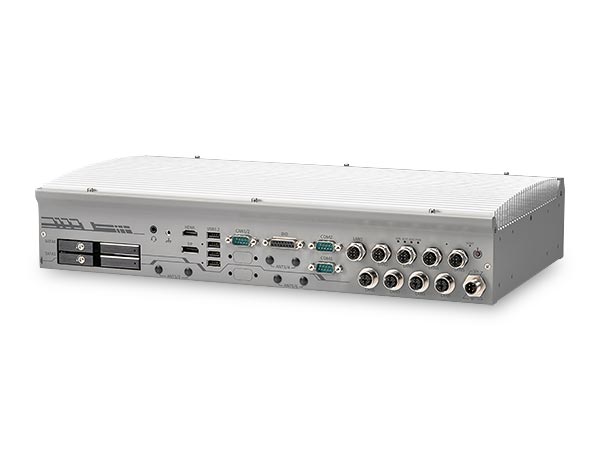

GT-92RL-H
EN50155 & EN45545 19" rack mount railway GPU computer including NVIDIA® 2000 ADA, supporting Intel® 14th/ 13th / 12thGen Core™ processor, 43V to 160V DC input with isolation
Features
- Compliant with EN 50155 mandatory tests and EN 45545-2
- Intel® 14th/13th/12th Gen LGA1700 processor (35W/65W)
- Fanless GPU computer with NVIDIA® RTX 2000 ADA
- 2U 19" chassis for rack-mount or wall-mount
- 43V to 160V DC input via M12 K-Coded connector
- 9x GbE ports via M12 X-Coded connectors
- 1x M.2 2280 M Key with PCIe-Gen 4x4 for NVMe storage
- 2x full-size mPCIe sockets for MVB modules
- -40°C to 55°C wide-temperature fanless operation
The GT-92RL-H is a fanless 19-inch rackmount GPU computer that delivers outstanding CPU and GPU performance by leveraging the Intel® 14th/13th/12th generation platform and NVIDIA® RTX 2000 ADA. Thanks to its high performance and flexible camera expansion, the GT-92RL-H is ideal for multi-camera applications requiring real-time responses, such as pantograph and track gauge monitoring, video analytics in train carriages, track object identification, and tunnel inspection.
The GT-92RL-H features a proven thermal design that ensures reliable operation at temperatures ranging from -40°C to 55°C. The system and 70-watt GPU card utilize a passive cooling design. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, the GT-92RL-H is perfect for AI-based vision applications in rolling stock. Its 110V DC input design and EN 50155/EN 45545 certifications make it the ideal solution for railway applications.
For data storage, the GT-92RL-H offers flexible options, including one M.2 2280 Gen4x4 NVMe slot providing extremely fast read and write speeds of up to 7000 MB/s, as well as two 2.5-inch SATA HDDs/SSDs to expand storage capacity.
With enhanced performance and comprehensive I/O features, the GT-92RL-H is the perfect edge AI inference platform for railway applications.
Technical details
| Audio: | 1x 3,5mm jack mic in & speaker out |
|---|---|
| CAN Bus: | 1x CAN 2.0 port |
| COM-Ports: | 2 COM Ports |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 12th generation, 13th generation, 14th generation |
| CPU Socket: | LGA1700 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, EN 50121, EN50155 |
| Channels: | 4-CH |
| Chipset: | Intel® R680E |
| DC Input: | M12 L-coded |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 2x DDR5 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Rack-mount (optional), Wall-mount (optional) |
| Number of graphics cards: | 1x 350W graphics card |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 43 ~ 160V DC |
| RAID: | RAID 0, RAID 1 |
| Screen resolution: | 4096 x 2160 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2x 2,5" SSD/HDD, M.2 2242 M Key NVMe |
| Supported graphics cards: | RTX Axxxx series |
| TPM: | dTPM 2.0 |
| USB: | USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
