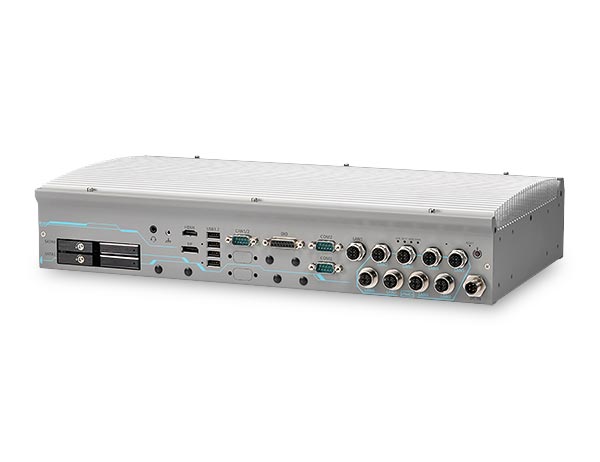

GT-92GC
2U 19" rack mount fanless GPU computer including NVIDIA® 2000 ADA, supporting Intel® 14th / 13th / 12th-Gen Core™ processor
Features
- Intel® 14th/13th/12th Gen LGA1700 processor (35W/65W)
- Fanless GPU computer with NVIDIA® RTX 2000 ADA
- 2U 19" chassis for rack-mount or wall-mount
- 8V to 48V DC input via M12 L-Coded connector
- 8x GbE PoE+, 1x GbE ports via M12 X-Coded connectors
- On-board isolated CAN bus for in-vehicle communication
- 1x M.2 2280 M Key with PCIe Gen 4x4 for NVMe storage
- 2x full-size mPCIe sockets with internal SIM sockets
- -25°C to 55°C fanless wide-temperature operation
The GT-92GC is a fanless 19-inch rackmount GPU computer based on the Intel® 14th/13th/12th generation platform, delivering impressive computational and graphical performance with NVIDIA® RTX 2000 ADA. The computer is ideal for multi-camera applications requiring real-time responses, such as AI inspections, robotic navigation, and autonomous machines.
The GT-92GC features a proven thermal design that ensures reliable operation at temperatures ranging from -25°C to 55°C. Its passive cooling system for the motherboard and 70-watt GPU card provides stability even under demanding conditions. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, the GT-92GC is perfect for AI-based vision applications.
For data storage, the GT-92GC offers flexible options, including an M.2 2280 Gen4x4 NVMe slot with extremely fast read and write speeds of up to 7000 MB/s and two 2.5-inch SATA HDDs/SSDs for expanding storage capacity.
With its outstanding performance, comprehensive I/O functions, and flexible storage options, the GT-92GC is the ideal platform for edge AI applications in industrial environments such as inspection vehicles, smart agriculture, and autonomous machines.
Technical details
| Audio: | 1x 3,5mm jack mic in & speaker out |
|---|---|
| COM-Ports: | 2 COM Ports |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 12th generation, 13th generation, 14th generation |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, EN 50121, EN50155 |
| Channels: | 4-CH |
| Chipset: | Intel® R680E |
| DC Input: | M12 L-coded |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 2x DDR5 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Rack-mount (optional), Wall-mount (optional) |
| Number of graphics cards: | 1x 350W graphics card |
| Operating Temperature: | -25°C ~ 50°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 48V DC |
| RAID: | RAID 0, RAID 1 |
| Screen resolution: | 4096 x 2160 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2x 2,5" SSD/HDD, M.2 2242 M Key NVMe |
| Supported graphics cards: | RTX Axxxx series |
| TPM: | dTPM 2.0 |
| USB: | USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
