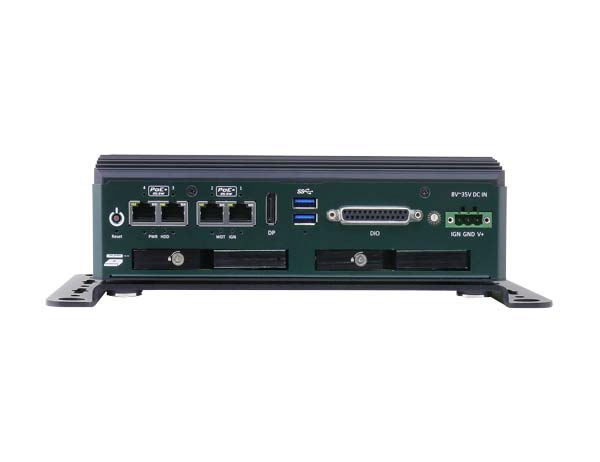

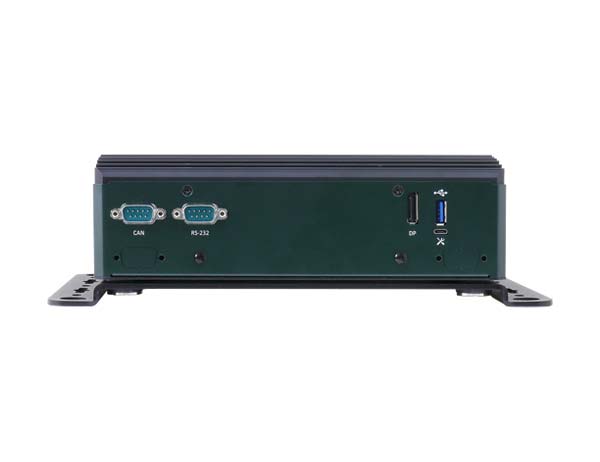

NRU-120S

The NRU-120S series is a rugged edge AI-based solution for video analysis, offering features such as video recording, transcoding, and real-time inferences. Powered by an NVIDIA® Jetson AGX Xavier™ system-on-module, it is equipped with an 8-core ARM CPU and an NVIDIA® Volta GPU with 512 CUDA cores and 64 Tensor cores, delivering 11 TFLOPS of FP16 performance and 22 TOPS in INT8 benchmarks.

Thanks to the low power consumption design of the NVIDIA® Jetson AGX Xavier™ SOM, the NRU-120S series provides significant computational power for inferences while consuming only 30W of power. Its energy-efficient design and compact form factor make the series a perfect edge AI solution for both fixed and mobile applications. The NRU-120S series offers four 802.3at PoE+ ports, each capable of powering devices such as IP cameras with up to 25.5W of power. In addition to the 32GB eMMC on the Xavier module, the NRU-120S series includes two front-accessible, hot-swappable 2.5-inch bays for expanding storage capacity, as well as an M.2 2280 NVMe slot for fast SSD read and write operations. The platform also features a Mini-PCIe socket for a Wi-Fi or 4G module, a GPS-PPS input, and isolated 3-channel DI and isolated 4-channel DO for data exchange with external devices.

By integrating PoE+ connectivity, various NVIDIA® AI tools, and modern deep learning frameworks, the NRU-120S platforms enable real-time inference on image and video data at the edge. The series is an all-in-one solution for video analysis with 802.3at PoE+ camera connectivity, decoding, streaming, video recording, and AI inference at the edge. With Neousys' specially designed vibration-dampening brackets, ignition control, and wide voltage range for power supply, the NRU-120S series is the ideal video inference platform for autonomous machines, predictive maintenance, law enforcement, and smart city applications.

Also available with a fan kit for operating temperatures up to +70°C.
