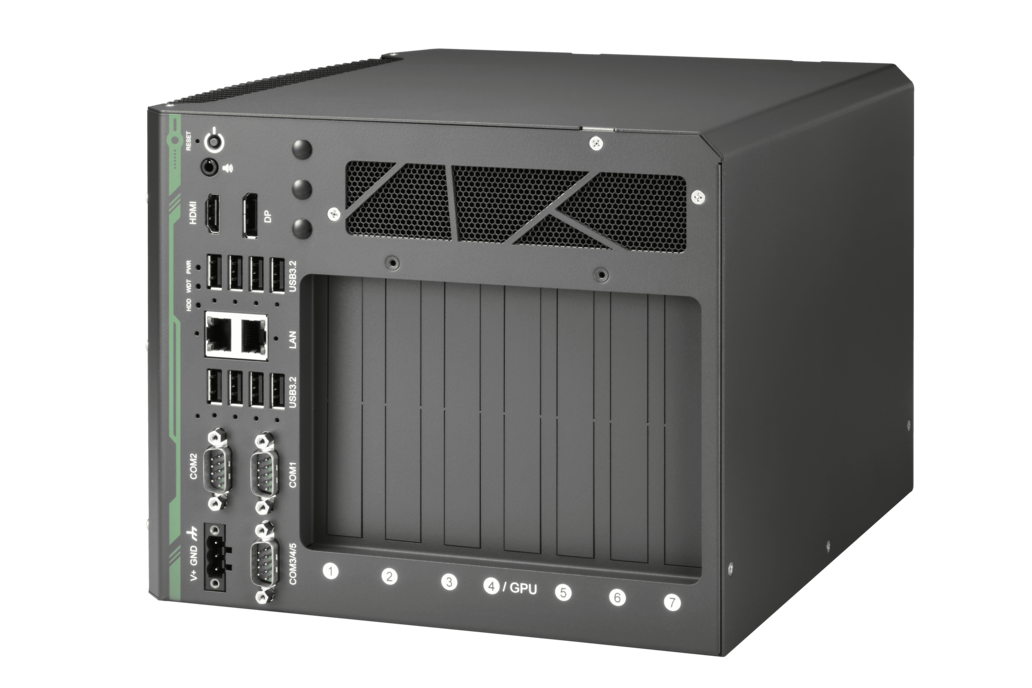

Nuvo-10007
Expandable industrial box PC with 14th Gen Intel® Core™ CPU and numerous expansion interfaces
Features
- Seven PCIe slots for expansion cards with compact dimensions
- Intel® 14th/13th/12th Gen Core™ i9/i7/i5/i3, Pentium® and Celeron® CPU
- Up to 64GB DDR5-4800 SDRAM

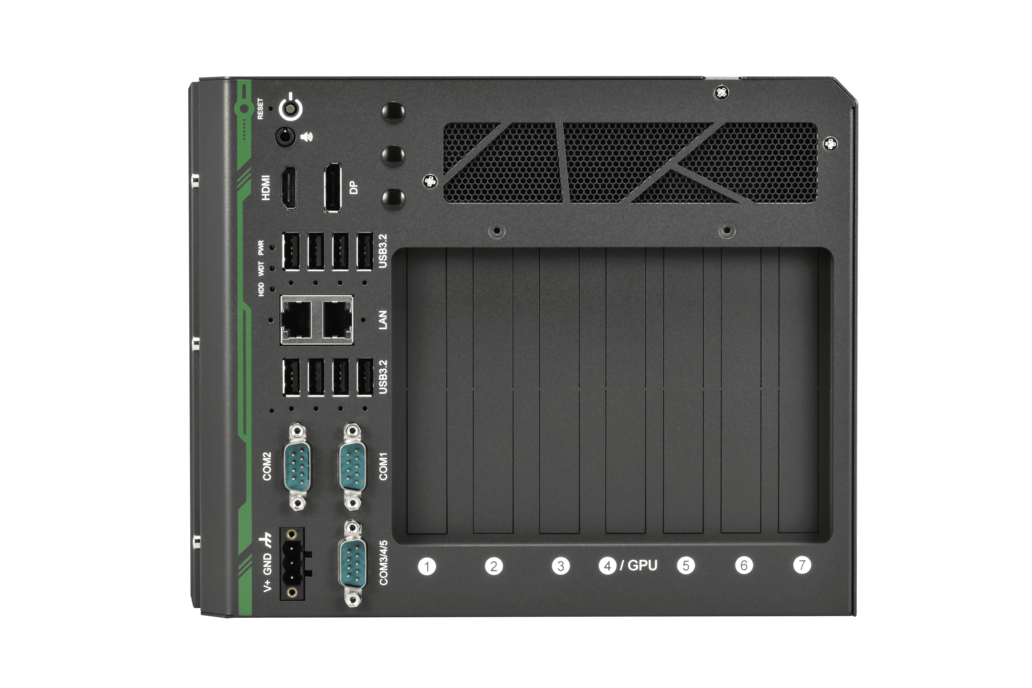

- 8x USB 3.2 Gen2 ports, 1x 2.5G & 1x Gigabit Ethernet
- 1x DisplayPort and 1x HDMI 1.4b
- 1x M.2 2280 NVME, 2x 2.5’ SSD with RAID
- Supports one NVIDIA® graphics card up to 115W
- MIL-STD-810H and EN 55032 & EN 55035 certified
The Nuvo-10007 is the ideal choice to replace your bulky rack- or wall-mounted IPC systems. The system offers a full seven PCIe slots in its compact chassis to provide the same level of expandability as standard 4U 19’ IPCs. Users can install a variety of AIO, DIO, communications, image capture and motion control cards for versatile applications.
Utilising Intel® Alder Lake Core™ 14th/13th/12th generation i-Desktop processors with Q670 chipset, the Nuvo-10000 series offers exceptional computing power in a comparatively compact size at a competitive price compared to traditional IPCs. It has eight USB 3.2 ports with screw-locking mechanism for USB3 cameras. There is one GbE, one 2.5 GbE and 5 COM ports and space for two 2.5’ HDDs/SSDs with an additional internal SATA port for a third HDD/SSD. The system can also support a 115W NVIDIA® graphics card, providing significant AI computing power for modern deep learning applications.
Driven by the increasing demand for industrial IoT, machine vision inspection and machine automation, the Nuvo-10000 series is a flexible, robust all-round solution that can cover various industrial applications. With a choice of I/O ports and flexible 7-slot PCIe expandability, the Nuvo-10007 is ready for the fifth industrial revolution.
Technical details
| Add-ons: | 2x PCIe x8 Gen3 Slot, 2x PCIe x16 Gen3 Slot, 3x PCIe x8 Gen3 Slot, Full-size Mini PCIe, M.2 2280 M key, MezIO® Port, PCIe x4 Gen3 Slot, PCIe x8 Gen3 Slot, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation, 14th generation |
| CPU Socket: | LGA1700 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| Chipset: | Intel® Q670E |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | 2.5G, Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR5 Slot, 2x DDR5 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| Power supply: | 12 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 10-Pin Wafer Connector (Remote On/Off Control & Status LED Output) |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB 2.0, USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DisplayPort, HDMI |
