Rugged embedded Industrial PCs
Filter
–
NISE 3800E
- Intel Core i3/i5i/7 CPU der 6./7. Generation
- Bis zu 32 GB DDR4-2133 RAM
- 1x 2,5" SSD, 1x mSATA SSD
- USB 3.0, DisplayPort, HDMI, DVI, COM
- 1x PCIe x4 Slot, 2x miniPCIe
- -5°C bis 60°C Betriebstemperatur
- 9V - 30V DC Weitbereichseingang
- CE, FCC Class A, UKCA und UL zertifieziert
NISE 3900E
- Intel® Core™ i3/i5/i7 CPU of the 9th/8th generation
- Up to 64GB DDR4 RAM
- 6x USB 3.1, 4x USB 2.0, 3x Gigabit LAN
- DVI-D, HDMI, DisplayPort
- 1x 2.5" SSD/HDD, 1x M.2 NVME
- 1x PCIe x4 slot for expansion cards
- Fanless operation and wide temperature range from -5°C to 55°C
- 9 - 30V DC wide range input
NISE 3910E
- Intel® Core™ i3/i5/i7/i9 CPU der 13./12. Generation
- Bis zu 64 GB DDR5-4800 RAM
- 6x USB 3.2, 4x USB 2.0, 3x COM
- DisplayPort, HDMI, VGA
- 4x 2.5 G LAN Ports
- 1x 2,5" SSD, 1x M.2 2242, 1x mSATA
- 1x PCIe x4 Slot für Erweiterungskarten
- 1x miniPCIe für optionales WI-FI oder 4g LTE Kommunikation
- -20°C bis +60°C Betriebstemperatur

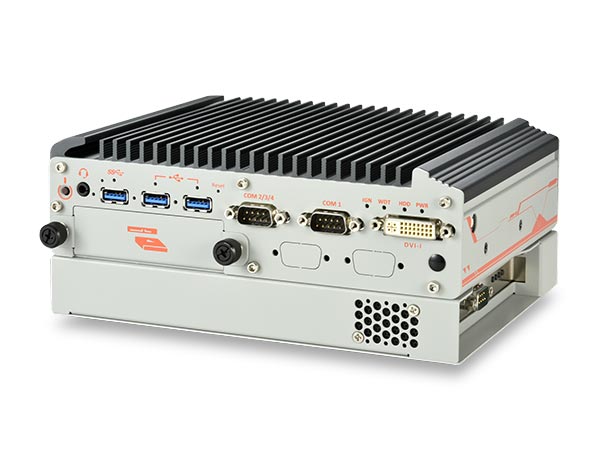

Nuvo-2600 Series
- Intel® Elkhart Lake Atom® x6425E quad-core processor
- Up to 32GB DDR4-3200 SDRAM
- 3x USB, VGA, and DVI-I, 2x serial interfaces
- Four (optional PoE+) Gigabit Ethernet ports
- 4-CH isolated DI and 4-CH isolated DO
- Optional with ignition control
- Fanless operation from -25 to 70°C
- With PCIe expansion cassette or 2500Ws UPS
Nuvo-5000 Series
- Intel® 6th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 32GB DDR4-2133 SD-RAM (two SO-DIMM slots)
- USB 3.0, VGA, DVI, and DisplayPort connections
- 2x 2.5" SSD (+RAID 0/1) and 1x full-size mSATA slot
- 6x / 2x (PoE+) Gigabit Ethernet Ports
- Fanless operation with a wide temperature range of -25°C to 70°C
Nuvo-5501 Series
- Intel® 6th Gen Core™ i7/i5/i3 LGA1151 CPU
- Up to 16 GB RAM
- 3 Gigabit Ethernet ports, 4x USB 3.0
- 4x serial RS232/422/485 interfaces
- 1x 2.5‘ / 3.5’ HDD/SSD
- -25°C ~ 70°C Operating temperature
- Optional isolated DI (8-channel) and isolated DO (8-channel)
Nuvo-7000 Serie
- Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 64 GB DDR4-2400 RAM
- 4x USB 3.1, up to 6x (PoE) Ethernet Ports, DP, VGA, and DVI connections
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key Slot
- Fanless operation with a wide temperature range of -25°C to 70°C
- Expansion cassette and MezIO interface for functionality extension
Nuvo-7501
- Intel® 9th/8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 SDRAM
- 4x USB 3.1 Gen 1, VGA, DVI-D, 6x COM ports, 1x audio, and 2x Gigabit Ethernet
- 1x 2.5" SSD, 1x M.2 2280 NVME
- Fanless, robust operation at -25°C to 60°C
- Compact dimensions
- Wall and DIN-rail mounting options
- Certified to MIL-STD-810G, EN 55032, and EN 55024
Nuvo-7531
- Intel® 9th/8th Gen Core™ CPU
- Up to 32GB DDR4-2666 SDRAM
- 4x USB 3.1, 2x USB 2.0, DVI-I, VGA, 2 serial ports
- 4x Gigabit Ethernet
- 1x 2.5" SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation and space-saving low-profile design
- Certified to MIL-STD-810G, EN62368-1, EN 55032, and EN 55024
Nuvo-9000 Series
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 64GB DDR5-4800 RAM
- 6x USB 3.2, 2x USB 2.0, 1x USB-C
- Up to 6x 2.5G Ethernet (PoE+) ports
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
- Robust and fanless, operating temperature range from -25 °C to 70 °C
- Expansion cassette and MezIO interface
Nuvo-9501
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2 Gen2, 2x USB 2.0, 1x VGA, 1x DisplayPort
- 2x 2.5G Ethernet, 2x serial interfaces, 4x additional possible
- 1x internal 2.5" SSD, 1x M.2 2280 NVME
- Optional 4-CH isolated DI and 4-CH isolated DO
- Fanless operation from -25°C to 60°C
Nuvo-9531 Serie
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2, 2x USB 2.0, VGA, DisplayPort
- 4x 2.5G Ethernet, 2x serial interfaces
- 1x 2.5" internal SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation from -25°C to 60°C
Nuvo-9650AWP
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 96 GB DDR5-4800 SDRAM
- USB 3.1, 2.5G / Gigabit Ethernet, RS232/422/485
- Water and dustproof according to IP66
- Ports via waterproof M12 connectors
- 8 - 48 V DC wide range input with ignition control
- Certified to MIL-STD-810H and CE/FCC
Prime Box Performance
- 9th/8th Gen Intel® Core™ i3/i5/i7 CPU
- Up to 64GB DDR4-2666 RAM
- 2x 2.5" SSD (RAID 0/1), 1x M.2 NVME
- 4x USB 3.1/2, 2x GbE LAN, 2x DisplayPort, 1x DVI-D
- 1x PCIe x16 slot for expansions
- Wi-Fi, Bluetooth, and cellular via mPCIe available
- Fanless operation from -10 to 50°C
- CE, UL, EN 55024, EN 61000-6-2, and other certifications
