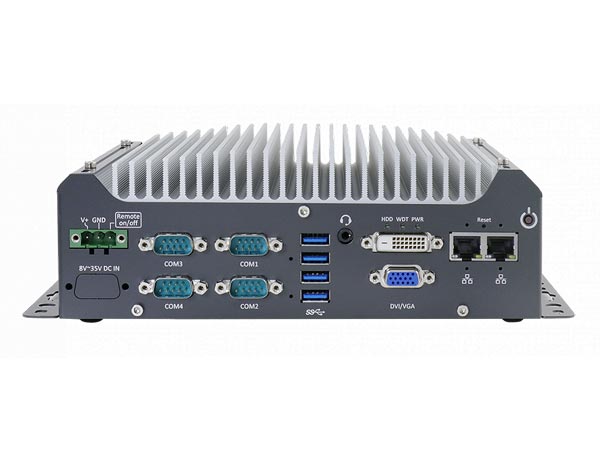

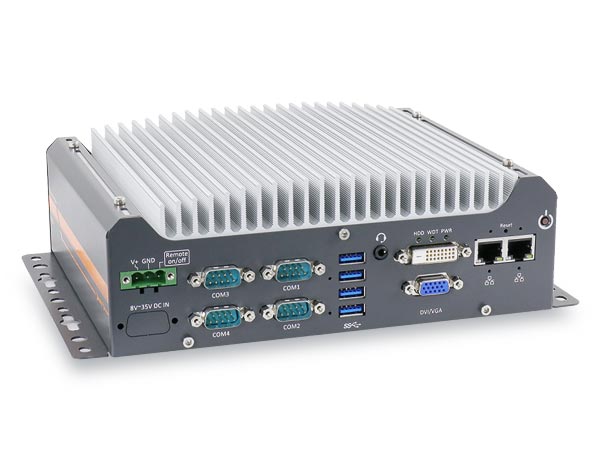

Nuvo-7501
Fanless compact industrial PC with Intel® 9th/8th Gen Core™ CPU, 2 GbE, 4 COM ports, and isolated DIO
Features
- Intel® 9th/8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 SDRAM
- 4x USB 3.1 Gen 1, VGA, DVI-D, 6x COM ports, and 2x Gigabit Ethernet
- 1x 2.5" SSD, 1x M.2 2280 NVME
- Fanless, robust operation from -25°C to 60°C
- Compact dimensions
- Wall and DIN-rail mounting options
- Certified to MIL-STD-810G, EN 55032, and EN 55024
The Nuvo-7501 is a cost-effective fanless computer that offers high system performance in a compact size (footprint of 255 x 173 x 76 mm). With its Intel® 9th Gen/8th Gen Core™ processors with 6 or 8 processor cores, it delivers a performance improvement of over 50% compared to the previous generation.
The development of the Nuvo-7501 focused on creating a simple and compact embedded PC that includes all the essential features of a robust, fanless embedded solution. The embedded PC offers I/O functions such as 2 GbE, 4 USB 3.1 Gen1, and 4 COM ports, making it suitable for many commonly required industrial applications. In addition to the M.2 2280-SATA slot, there is space for a 2.5-inch SSD or HDD, or a 3.5-inch hard drive. The Nuvo-7505D variant offers isolated DIO and isolated COM, protecting the controller from ground loops in harsh environments.
The Nuvo-7501 is a cost-effective solution that, like all other Neousys systems, uses only high-quality materials, is manufactured through a qualified development process, and must meet stringent testing procedures. You receive a fanless embedded platform that provides an ideal combination of low cost, compact size, and performance. The Nuvo-7501 is the ideal fanless embedded solution for various industrial applications.
Technical details
| Add-ons: | M.2 2280 M key |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Chipset: | Intel® H310 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| PoE: | No |
| Power supply: | 8 ~ 35V DC |
| Remote: | 10-Pin Wafer Connector (Remote On/Off Control & Status LED Output) |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| TPM: | fTPM 2.0 |
| USB: | USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DVI-D, VGA |
