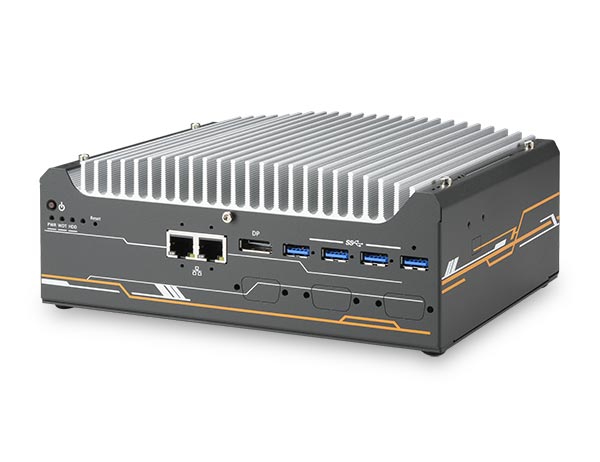

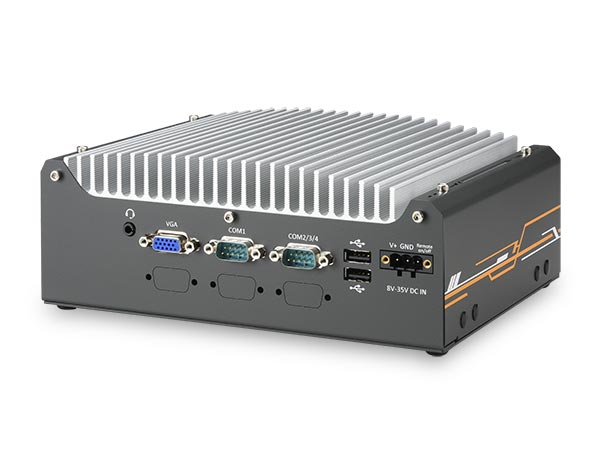

Nuvo-9505D
Compact industrial PC with Intel® 13th/12th Gen Core™ CPU, 2.5GbE, USB 3.2 ports, and 8x isolated DIO
Features
- Intel® 13./12. Gen Core™ i3/i5/i7/i9 CPU
- Bis zu 32GB DDR4-3200 SDRAM
- 4x USB 3.2 Gen2, 2x USB 2.0, 1x VGA, 1x DisplayPort
- 2x 2.5G Ethernet, 2x Serielle Schnittstellen, 4x weitere möglich
- 1x interne 2,5" SSD, 1x M.2 2280 NVME
- Optional 4-CH isolated DI and 4-CH isolated DO
- Lüfterloser, robuster Betrieb bei -25°C ~ 60°C
- MIL-STD-810H sowie EN 55032 & EN 55035 zertifiziert
- 4-CH isolated DI and 4-CH isolated DO
The Nuvo-9505D is a cost-effective, fanless, and compact embedded computer based on the Intel® 12th/13th Gen platform. With up to 24 cores and 32 threads, the Intel® 12th/13th Gen processors built on the Intel 7 architecture deliver twice the performance of the previous generation using Intel 10th or 11th Gen processors. This makes the Nuvo-9505D an outstanding computing solution for various industrial requirements.
Main Features of the Rugged Embedded PC Nuvo-9505D
- Essential I/O Functionality: The Nuvo-9505D features two 2.5GbE ports, two DisplayPorts, four USB 3.2 ports, and 8 isolated DIOs, meeting the fundamental needs of industrial applications.
- Powerful Storage Options: An M.2 Gen4 NVMe slot (x4) supports the latest NVMe SSDs with read/write speeds of up to 7000 MB/s. Additionally, the system accommodates a 2.5-inch or 3.5-inch hard drive to store large data volumes for surveillance or data acquisition applications.
- Expandable Connectivity: With two mPCIe slots and one M.2 E-key slot, the Nuvo-9505D allows for the integration of Wi-Fi or 4G/5G modules, making it flexible and future-proof.
- Cost-Effective Performance: The Nuvo-9505D combines excellent computing power with essential interfaces while maintaining cost efficiency to meet the needs of most users.
- Compact Design: The fanless, rugged chassis is space-saving and robust, making the Nuvo-9505D ideal for demanding industrial environments.
Why the Nuvo-9505D is the Ideal Rugged Embedded PC
With its exceptional computing power, versatile connectivity, and robust design, the Nuvo-9505D is the perfect solution for industrial applications. It combines cutting-edge technology with an attractive price-performance ratio, making it suitable for a wide range of requirements.
Choose the Rugged Embedded PC Nuvo-9505D to implement your industrial projects efficiently, reliably, and with future-proof performance.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2230 E key, M.2 2280 M key, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| Chipset: | Intel® H610E |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| Power supply: | 8 ~ 35V DC |
| Remote: | 3-pin pluggable terminal block for remote control |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| TPM: | fTPM 2.0 |
| USB: | USB 2.0, USB 3.2 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Video: | DisplayPort, VGA |
