Extendable Industrial PCs
Expandable Industrial PCs – Flexible and Powerful for Your Needs
Expandable industrial PCs offer high flexibility to support modern industrial applications. They can be expanded with additional cards and modules as needed. Ideal for companies seeking scalable IT solutions, whether in manufacturing, automation, or IoT.
Key features of our Expandable Industrial PCs:
- Scalable: Support for additional PCIe and PCI cards to expand performance and functionality.
- High Connectivity: Ethernet, USB, COM ports, and wireless options.
- Fanless: Low maintenance and reliable.
- Powerful Processors: Intel® and AMD options.
- Modular Design: Easy upgrades for growing requirements.
Our expandable industrial PCs provide the ideal combination of flexibility and performance to meet the changing demands of your industry.

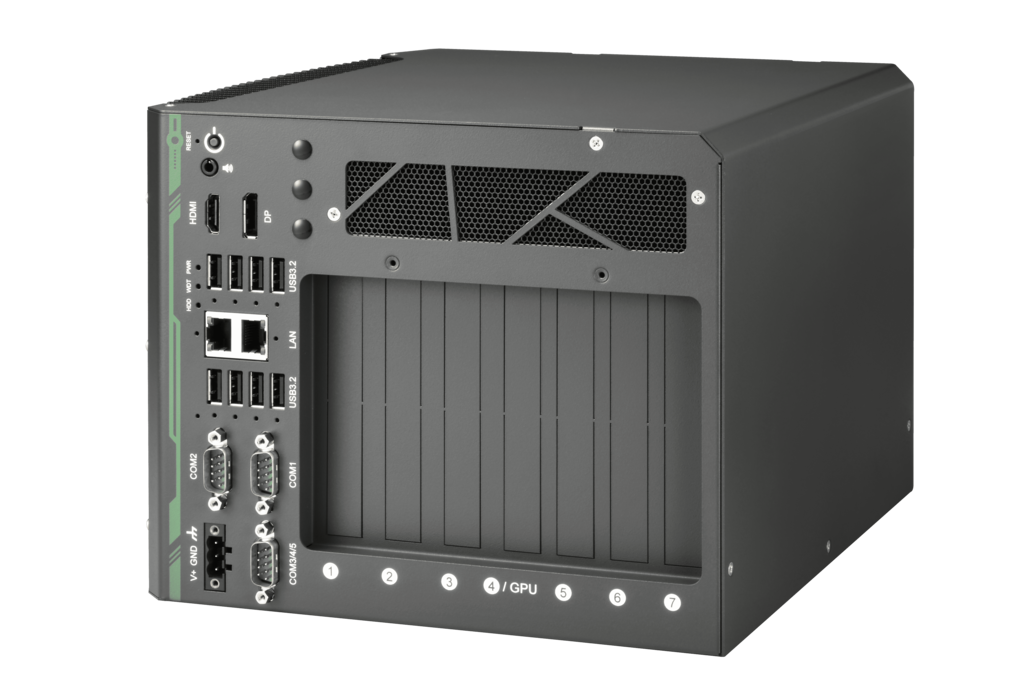

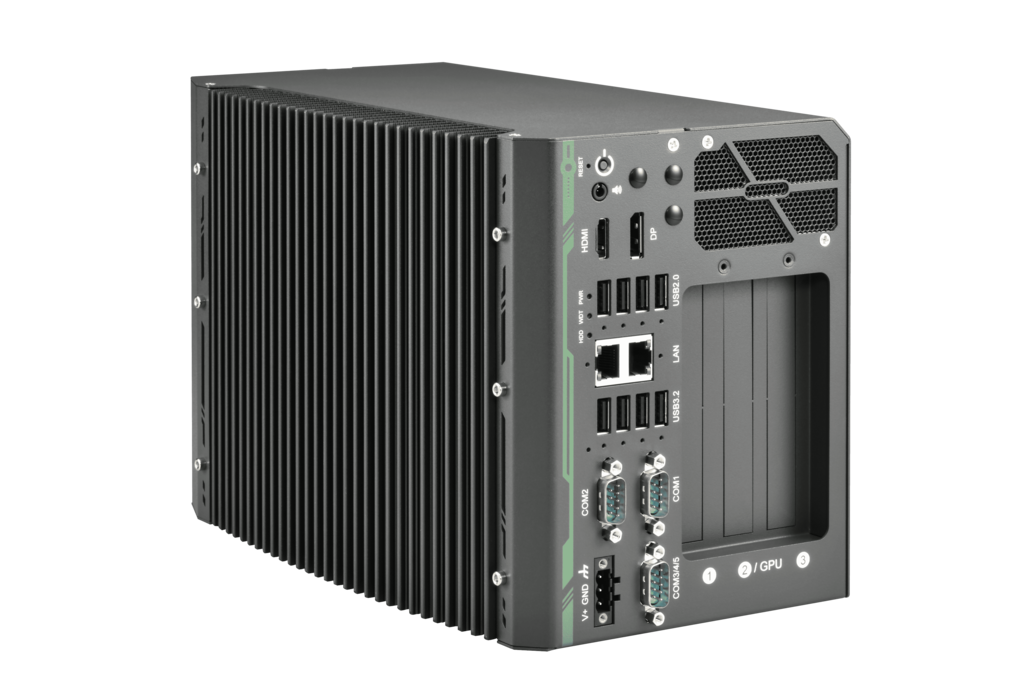

Nuvo-10000 Series
- Up to seven PCIe/PCI slots for expansion cards despite compact dimensions
- Intel® 14th/13th/12th Gen Core™ i9/ i7/ i5/ i3, Pentium® and Celeron® CPU
- Up to 64GB DDR5-4800 SDRAM
- 8x USB 3.2 Gen2 ports, 1x 2.5G & 1x Gigabit Ethernet
- 1x M.2 2280 NVME, 2x 2.5’ SSD with RAID
- Supports one NVIDIA® graphics card up to 115W
- EN & MIL-STD-810H certified

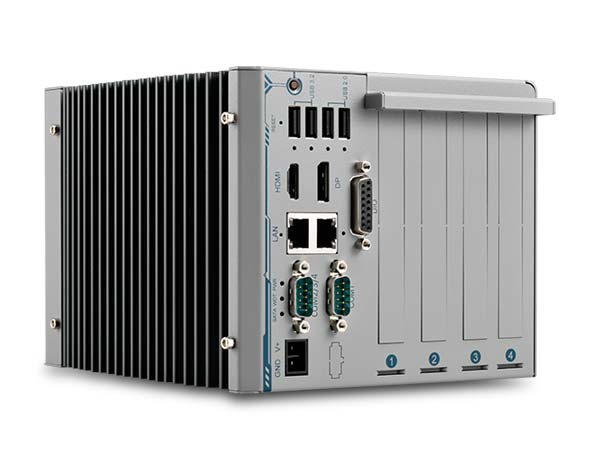

Nuvo-2822
- Intel® Alder Lake N97 processor 12W with 4 E-Cores
- 2x PCIe slots and 2x PCI slots
- 2x GbE, 2x USB3.2 and 2x USB2.0 ports
- 1x M.2 2280 for storage, 1x RS232/422/485, 3x RS232
- 1x DP++ & 1x HDMI 1.4b
- 4-CH isolated DI + 4-CH isolated DO
- 12 to 24V DC input, ultra-low power consumption during shutdown states

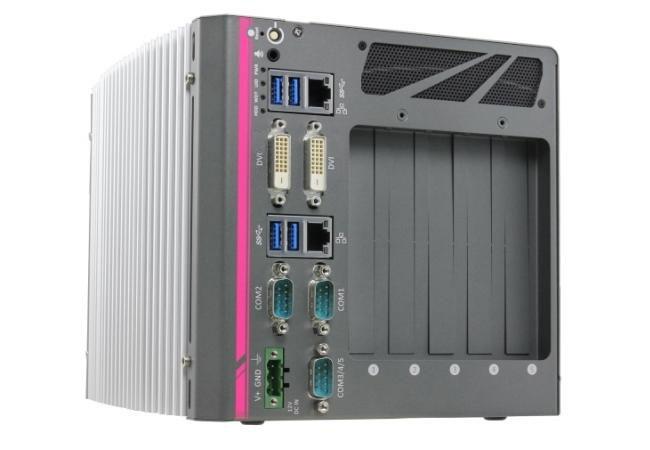

Nuvo-6000 Serie
- Supports up to five PCIe / PCI expansion cards
- Intel® 6th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 16GB DDR4-2133 RAM
- 4x USB 3.1, 2x Gigabit Ethernet, 2x Serial ports, 2x DVI-D
- Up to 3x 2.5" SSDs and 1x full-size mSATA slot
- Rugged, fanless operation with a wide temperature range from -25°C to 60°C
- Wall, DIN-Rail, or Rack-Mount options

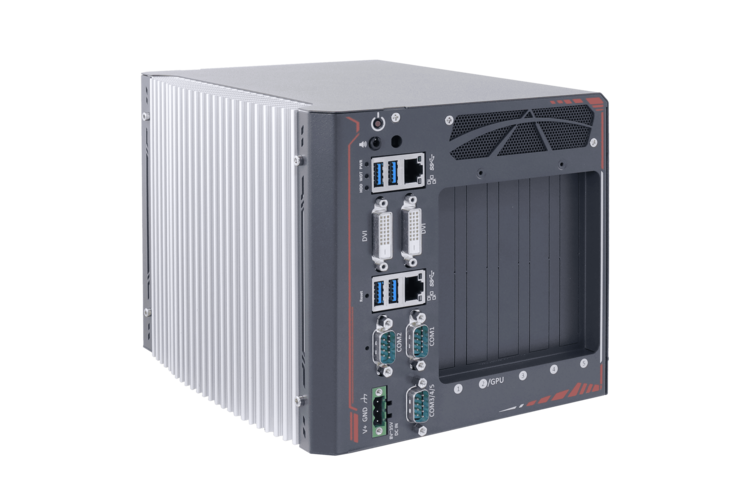

Nuvo-8000 Serie
- Supports up to five expansion cards
- Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 32 GB DDR4-2666 RAM
- 2x 2.5" SSDs and mSATA port
- 4x USB 3.1, 2x Gigabit Ethernet ports, DVI-D video output, 3x serial ports
- Fanless operation with a wide temperature range from -25°C to 60°C
- Wall and rack mounting options available
