Nuvo-2822

Intel® Alder Lake N Compact Expansion Box-PC with 2x PCIE and 2x PCI slots

Compact
Extendable
Robust

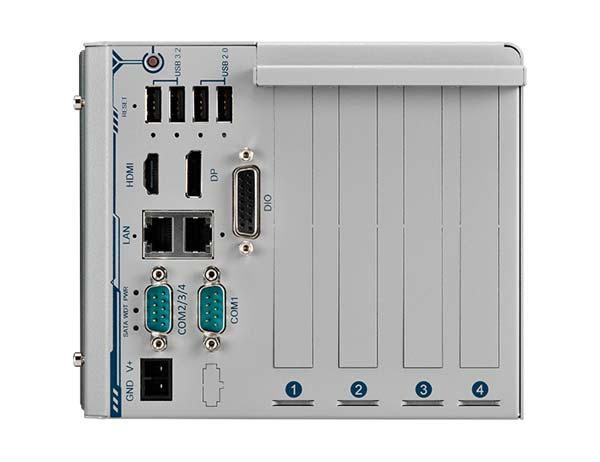

Features

  • Intel® Alder Lake N97 processor 12W with 4 E-Cores
  • 2x PCIe slots and 2x PCI slots
  • 2x GbE, 2x USB3.2 and 2x USB2.0 ports
  • 1x M.2 2280 for storage, 1x RS232/422/485, 3x RS232
  • 1x DP++ & 1x HDMI 1.4b
  • 4-CH isolated DI + 4-CH isolated DO
  • 12 to 24V DC input, ultra-low power consumption during shutdown states
Product information "Nuvo-2822"

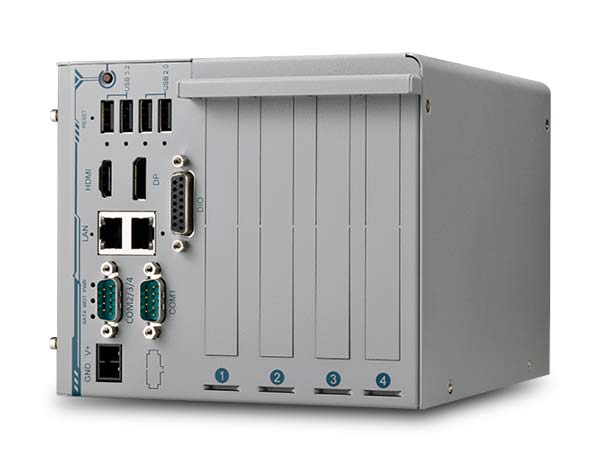

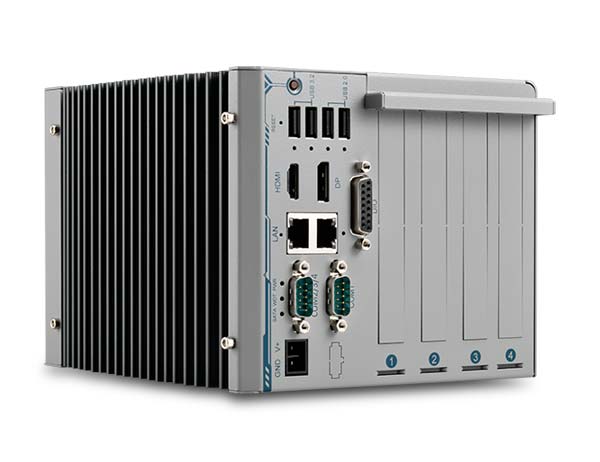

Nuvo-2822 is a compact expansion box PC powered by an Intel® Alder Lake N CPU featuring two PCIe and two PCI slots. The expansion slots are designed to support various frame grabbers, motion control cards, COM port expansion cards, and data acquisition cards.

With up to five times the performance boost compared to our previous Nuvo-2400 series, the new Nuvo-2822 can efficiently process vast amounts of data acquired from extensive I/O interfaces in real time. It features two Ethernet ports with I210-IT controllers, and two USB 3.2 Gen 2 ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Furthermore, the Nuvo-2822 supports 8-channel isolated DIO and four COM ports to communicate with and control various industrial sensors, indicators, motors, and actuators.

The system also features a unique "Super Power Saving Mode" to minimize energy consumption when the system is in standby (S4/S5) mode, significantly reducing electricity usage. Thanks to its compact dimensions, it can be deployed in restricted spaces or small cabinets. With support for versatile PCIe and PCI expansion cards, it is ideal for industrial control and machine automation applications.

Technical details

Add-ons: 1x PCIe x4 slot @ Gen3, 1-lanes, 1x PCIe x4 slot @ Gen3, 4-lanes, 2x 33MHz/ 32-bit 5V PCI slots
CPU: Intel® Alder Lake N97 processor (4C/4T, 2.0 /3.6 GHz, 12W TDP)
Certificates: CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I
Ethernet Ports: 1x, 2x
Humidity: 10% ~ 90% (non-condensing)
Internal Graphics: Intel® UHD Graphics
Memory: 1x DDR5 Slot
Memory capacity: 4 GB, 8 GB, 16 GB
Mounting: Wall-mount (optional)
Operating Temperature: with Fan -10°C ~ 70°C, without Fan -10°C ~ 60°C
Power supply: 12 ~ 24V DC
Serial Ports: RS-232, RS-422, RS-485
Storage: mSATA SSD
TPM: TPM 2.0
