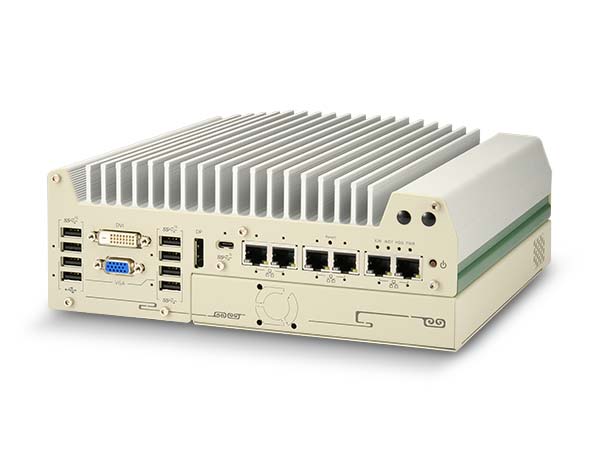

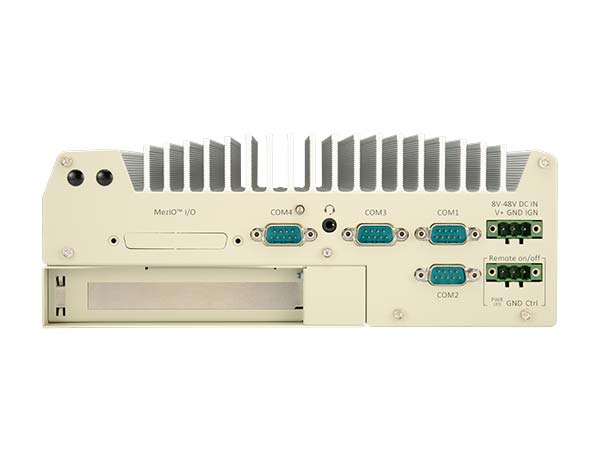

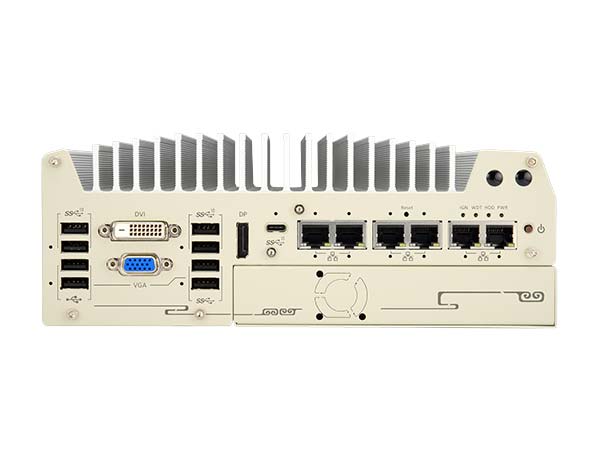

Nuvo-9006P-PoE
Rugged Embedded Computer with Intel® 13./12. Gen Core™-CPU, 2.5GbE Ports and USB 3.2
Features
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 64GB DDR5-4800 RAM
- 6x USB 3.2, 2x USB 2.0, 1x USB-C
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
- Robust and fanless, operating temperature range from -25 °C to 70 °C
- PCI cassette and MezIO interface for functional expansion
- 6x 2.5G Ethernet ports, 4x with PoE+ function
The Neousys Nuvo-9006P-PoE is redefining the standards of embedded industrial PCs, offering exceptional performance for industrial automation, surveillance, and AI-driven systems. With integrated Power-over-Ethernet (PoE) capabilities, this system excels in connectivity and efficiency. Its PCI interface ensures compatibility with legacy cards and machinery, making it a versatile choice for diverse environments.
Key Features of the Nuvo-9006P-PoE Industrial PC
- Intel® Core™ 12th/13th Generation Processors: Powered by high-performance Intel® Core™ processors, the Nuvo-9006P-PoE delivers exceptional computing power and reliability, making it ideal for resource-intensive applications.
- PoE+ Capability: This innovative industrial PC supports simultaneous data and power transmission over a single Ethernet cable, simplifying the installation and maintenance of PoE-enabled devices like cameras and sensors.
- PCI Interface: Equipped with a PCI interface, the Nuvo-9006P-PoE provides flexible expansion options, from adding custom interfaces to integrating specialized accelerator cards for enhanced functionality.
- Rugged Design for Industrial Environments: Designed to withstand extreme conditions, this industrial PC ensures reliability in environments with high temperatures, vibrations, and shocks.
- Superior Graphics Performance: Featuring integrated Intel® UHD Graphics, the Nuvo-9006P-PoE offers sharp image quality and supports multiple displays, enhancing visualization for demanding industrial applications.
- Multi-OS Compatibility: This embedded PC supports a range of operating systems, including Windows and Linux, ensuring seamless integration with existing systems and workflows.
Why the Nuvo-9006P-PoE is Your Ideal Industrial PC
The Neousys Nuvo-9006P-PoE combines advanced PoE connectivity, robust design, and flexible expansion options to meet the demands of modern industrial applications. With its state-of-the-art technology and compatibility with legacy hardware via the PCI interface, this industrial PC offers a future-proof solution tailored to your needs. Enhance your processes and optimize efficiency with the Nuvo-9006P-PoE industrial PC.
Invest in reliable and innovative technology by choosing the Nuvo-9006P-PoE for your industrial automation projects.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, PCI Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Chipset: | Intel® Q670E |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR5 Slot, 2x DDR5 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount |
| Operating system: | Windows 10, Windows 10 IoT, Windows 11 |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 48V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB-C, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x, 9x |
| Video: | DVI-D, DisplayPort, VGA |

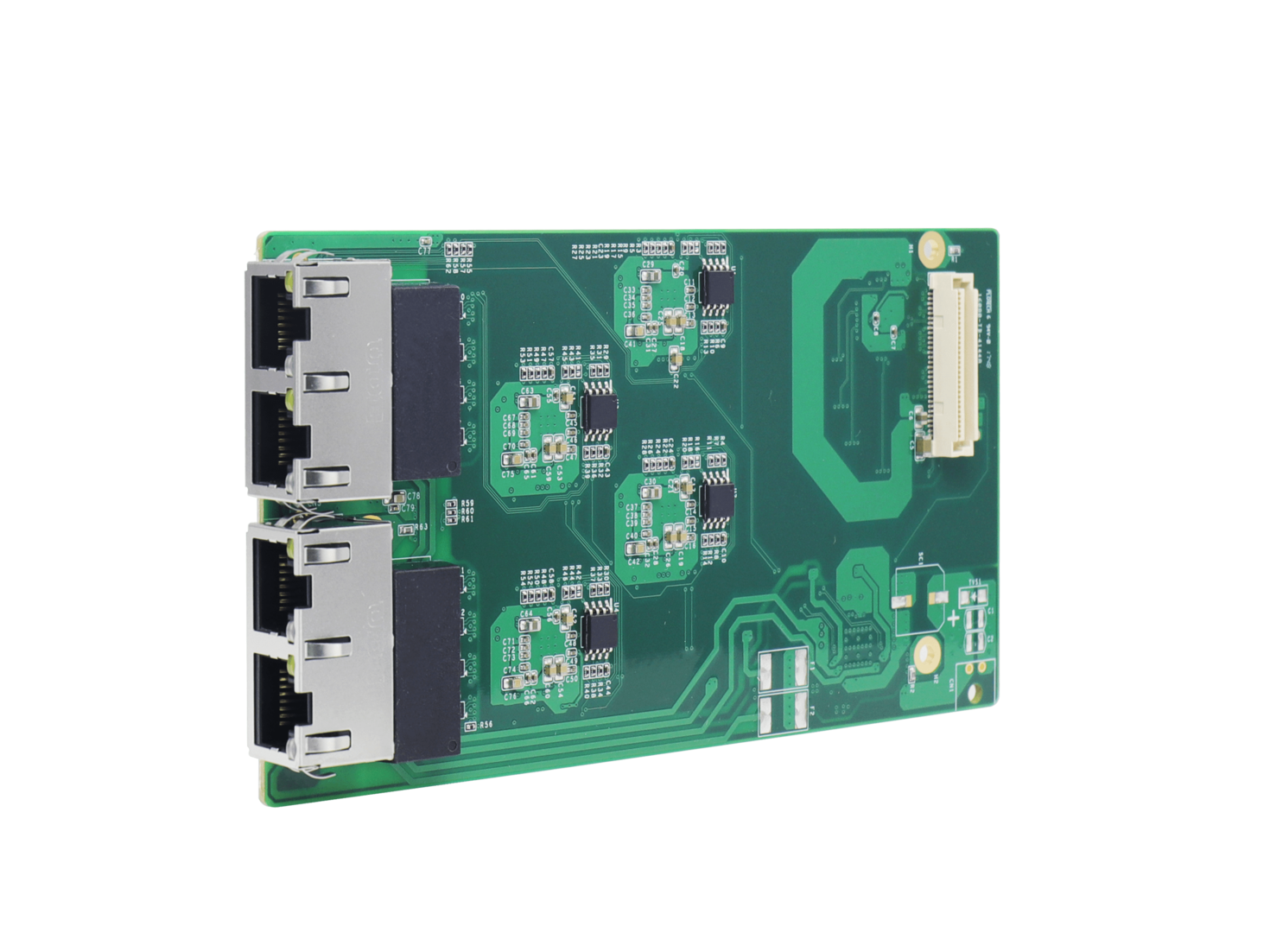

Suitable MezIO® modules

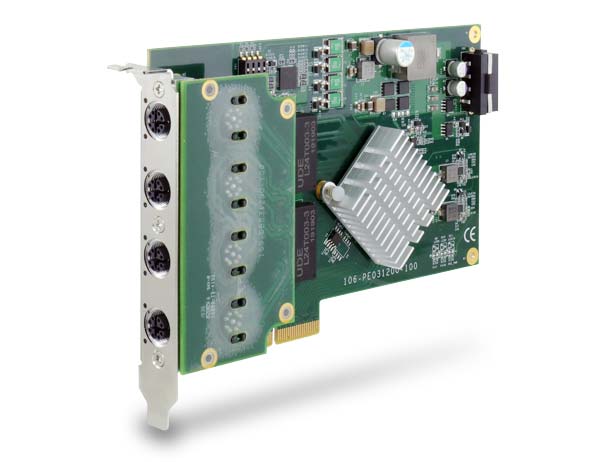

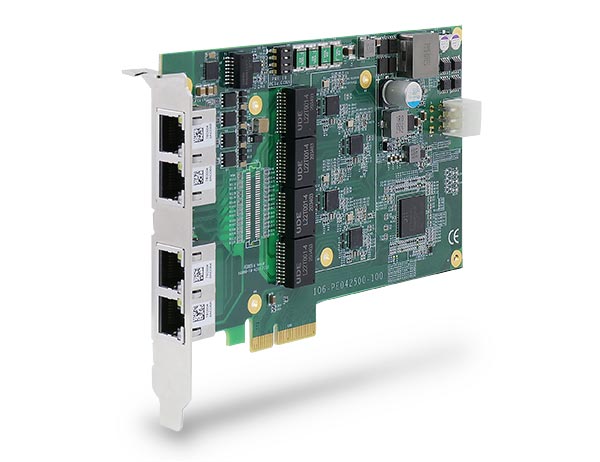

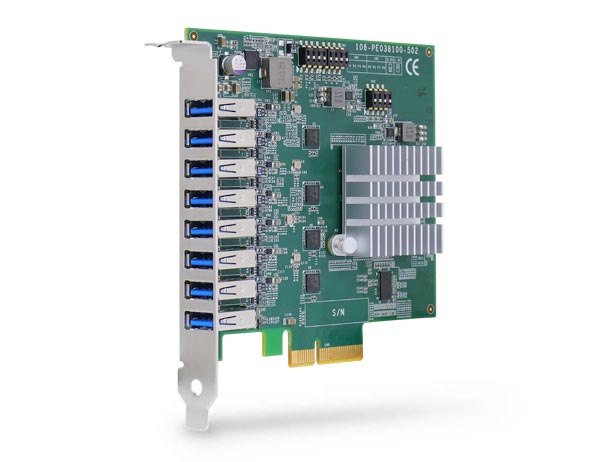

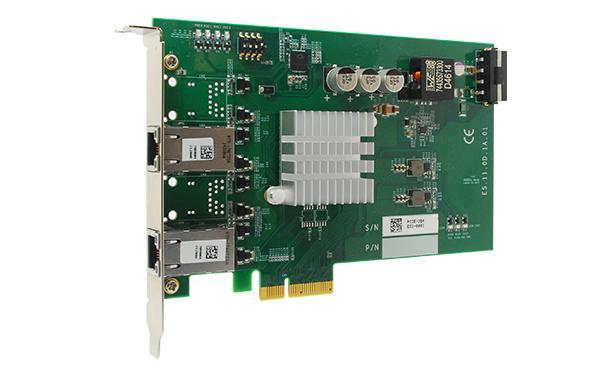

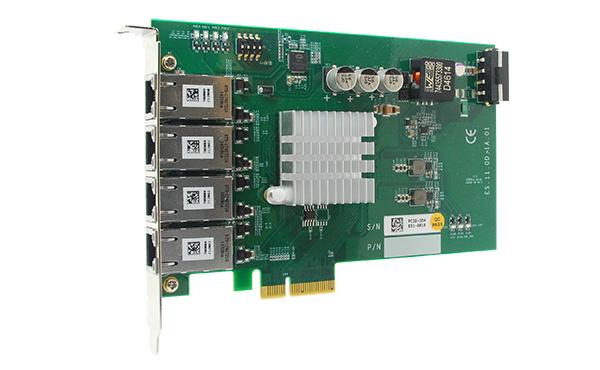

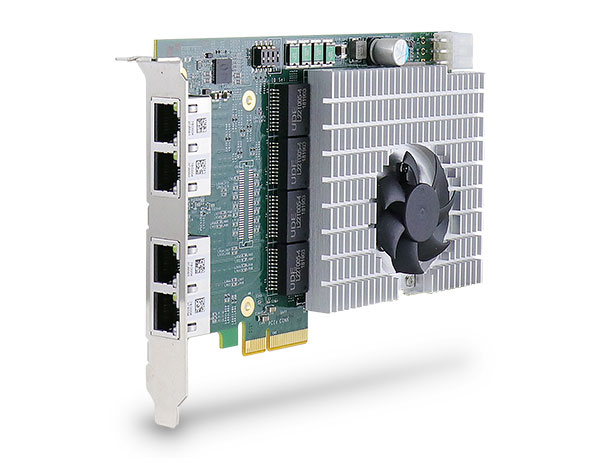

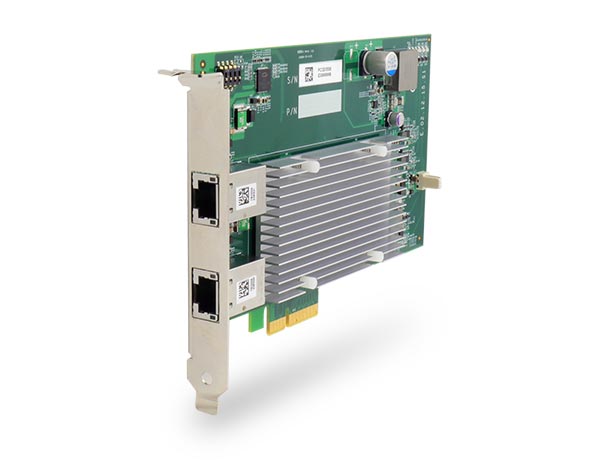

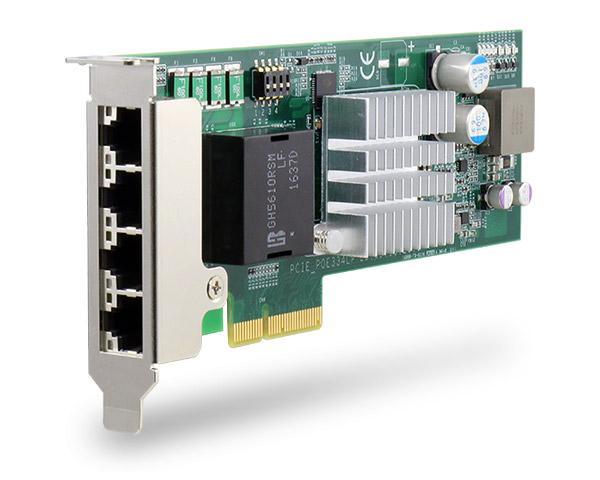

Suitable PCIe-Cards
