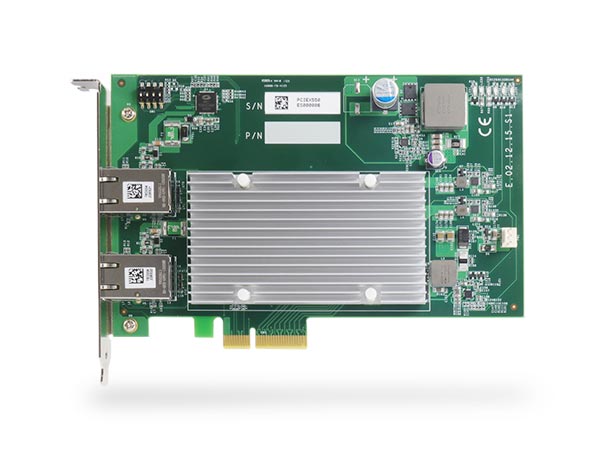

PCIe-10G550X
2-port 10GbE network adapter machine vision frame grabber card
Features
- Two 10 GbE ports; Intel® X550-AT2 10 GigE controller
- Gen3 PCI Express x4 interface
- Supports 10GbE with CAT-6/ 6a cable (Max. 100 meters)
- Supports NBASE-T and 1000BASE-T with CAT-5/ 5e cable
- Supports 15.5 KB jumbo frame, NIC teaming and IEEE 1588
Product information "PCIe-10G550X"
Introducing the world's first 10Gbit Ethernet NIC, featuring Intel® X550-AT2, Neousys Technology's PCIe10G550X offers cost-effective 10GBASE-T solution for growing 10GbE applications.
10GBASE-T leverages twisted-pair copper cable and RJ45 connector that dramatically reduces the deployment cost of 10G network. PCIe-PoE550X provides 10Gbit/s connections over a distance of up to 100 meters with CAT 6a cable or 55 meters with CAT 6 cable. It also supports upcoming NBASE-T standard as well as backward compatibility with existing 1000BASE-T GbE network so you can easily implement it into your current network infrastructure.
Technical details
| Add-ons: | PCIe x4 Gen3 Slot |
|---|---|
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, IEC 61000-4-x Class/ Level 3 |
| Ethernet: | 10G |
| Ethernet Ports: | 1x, 2x |
| Operating Temperature: | 0°C ~ 60°C |
