Nuvo-9006E-PoE
Rugged Embedded Computer with Intel® 13./12. Gen Core™-CPU, 2.5GbE Ports and USB 3.2
Features
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 64GB DDR5-4800 RAM
- 6x USB 3.2, 2x USB 2.0, 1x USB-C
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
- Robust and fanless, operating temperature from -25 °C to 70 °C
- PCIe cassette and MezIO interface for functional expansion
- 6x 2.5G Ethernet ports, 4x with PoE+ function
Product information "Nuvo-9006E-PoE"
The Neousys Nuvo-9006E-PoE is an advanced embedded industrial PC solution specifically designed for demanding applications in industrial automation, surveillance, and AI-based systems. With its focus on Power-over-Ethernet (PoE) technology, this system sets new standards in terms of connectivity and performance.
- Intel® Core™ Processors 12th/13th Generation: The Nuvo-9006E-PoE is powered by powerful Intel® Core™ processors from the 12th and 13th generations, providing top-notch computing power and reliability.
- PoE+ Support: With its PoE+ functionality, this industrial PC enables simultaneous data transfer and power supply over a single Ethernet cable. This simplifies the installation and maintenance of surveillance cameras, industrial sensors, and other PoE devices.
- Rugged Design for Industrial Environments: The Nuvo-9006E-PoE is designed for use in challenging industrial environments, meeting high standards for temperature, vibrations, and shock resistance, ensuring its reliability under extreme conditions.
- Enhanced Graphics Performance: The integrated Intel® UHD Graphics enables sharp image quality and supports multiple displays, improving visualization in demanding applications.
- Flexible Expansion Options: With various PCIe and mini-PCIe slots, the Nuvo-9006E-PoE offers flexible expansion options for custom requirements, from additional interfaces to AI accelerators.
- Operating System Independence: This embedded PC supports various operating systems (Windows and Linux-based), allowing broad compatibility and easy integration into existing systems.
With the Neousys Nuvo-9006E-PoE, you get a reliable and high-performance solution for your industrial applications, characterized by advanced technology, PoE connectivity, and robust design. Invest in the future of your industrial automation with this innovative embedded system.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Chipset: | Intel® Q670E |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR5 Slot, 2x DDR5 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount |
| Operating system: | Windows 10, Windows 10 IoT, Windows 11 |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 48V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB-C, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x, 9x |
| Video: | DVI-D, DisplayPort, VGA |
Downloads

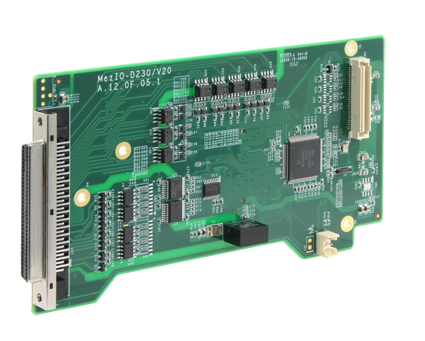

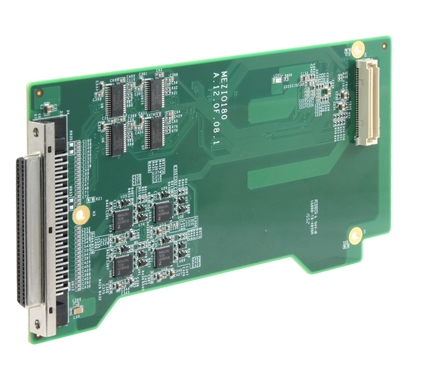

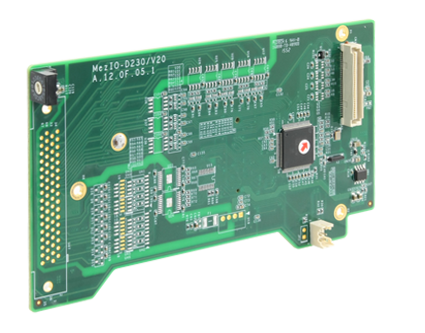

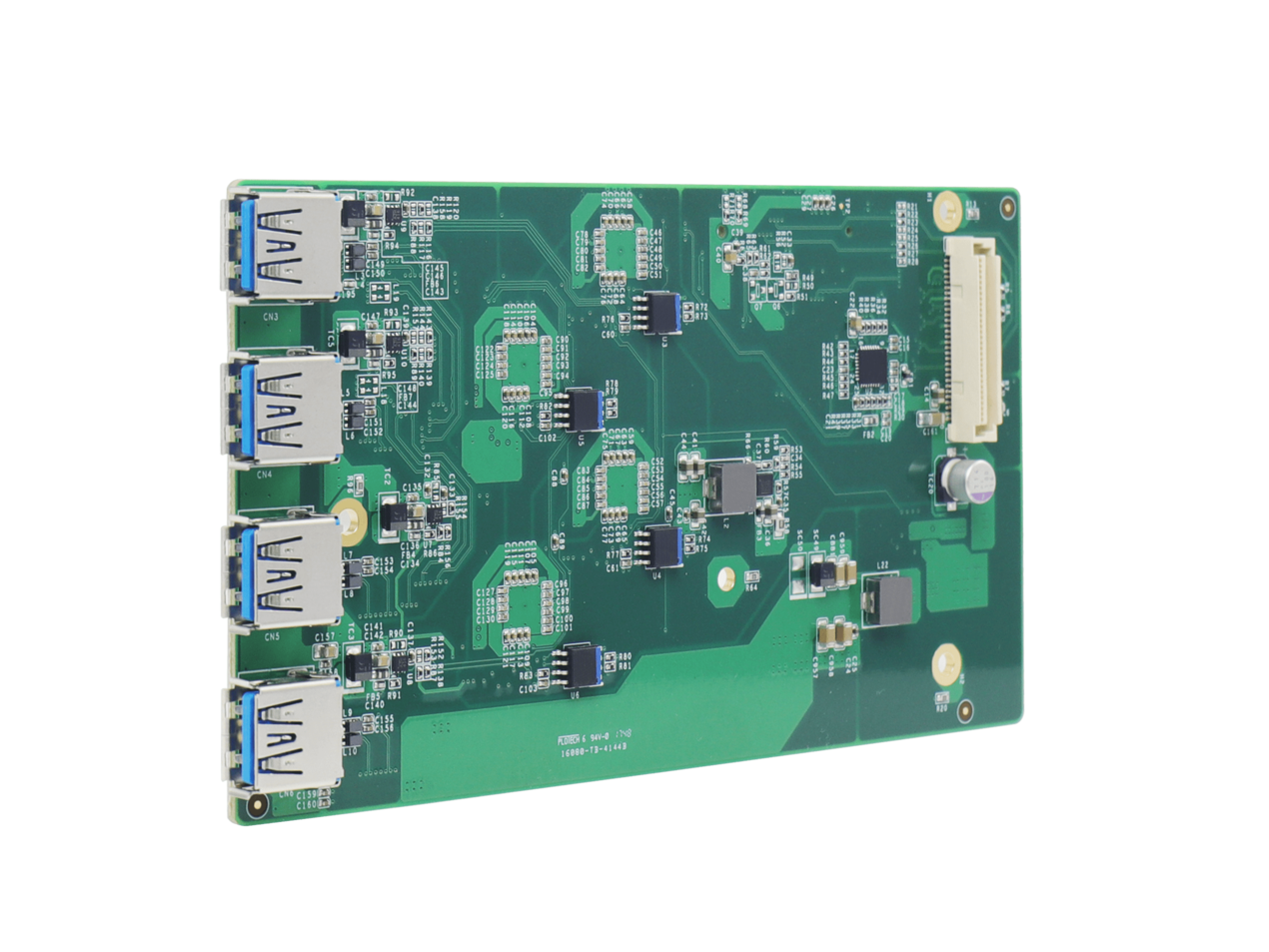

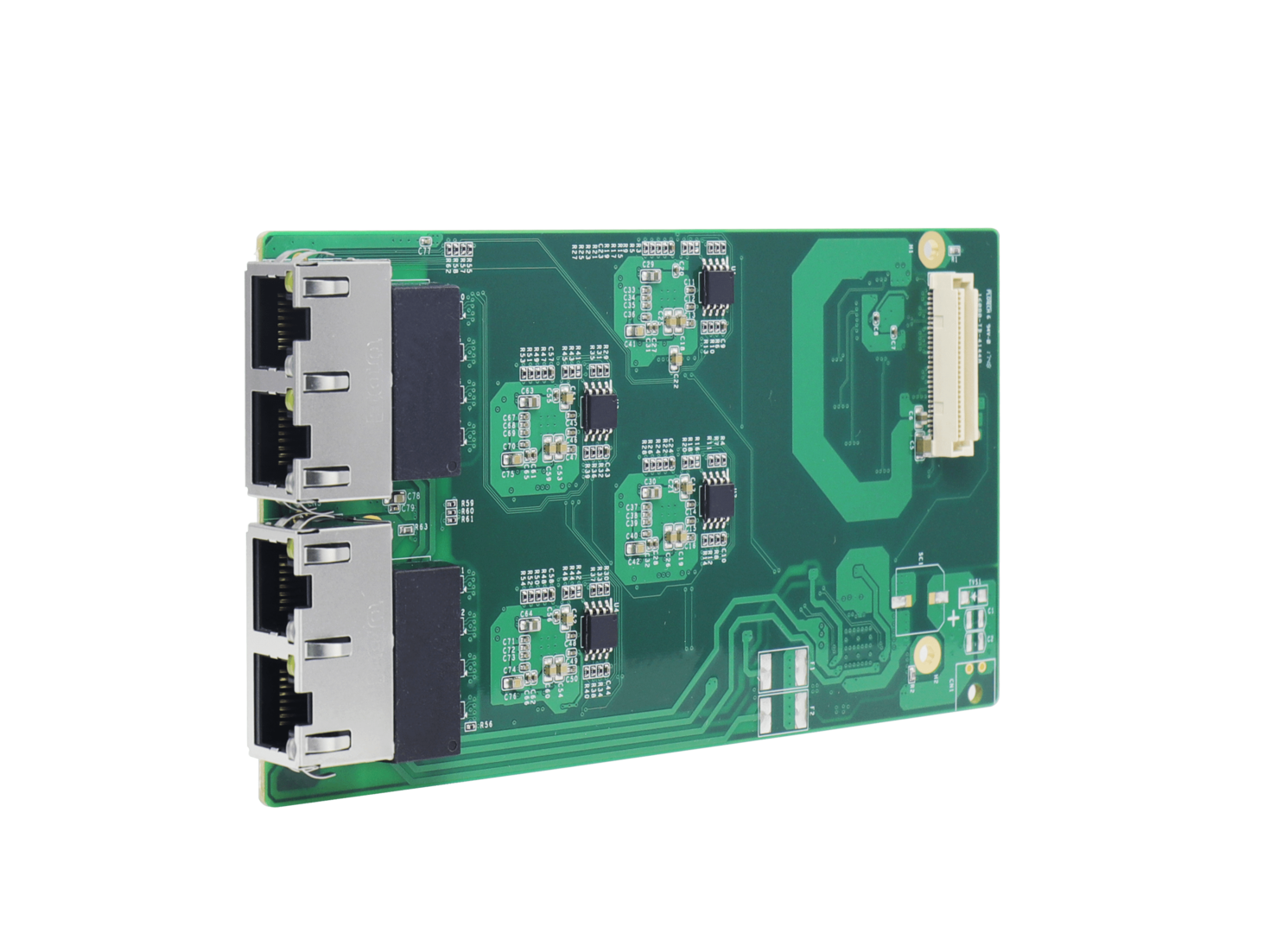

Suitable MezIO® modules
