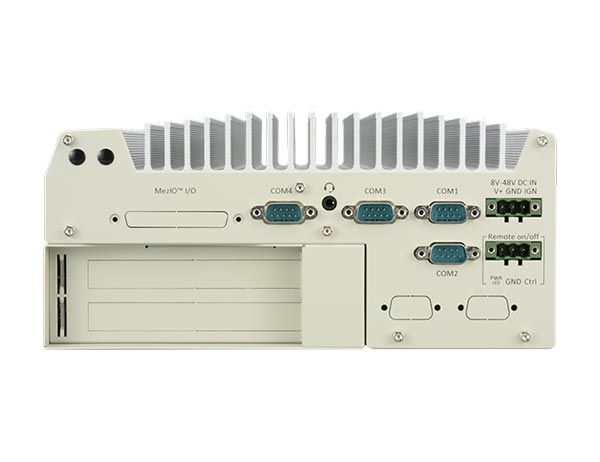

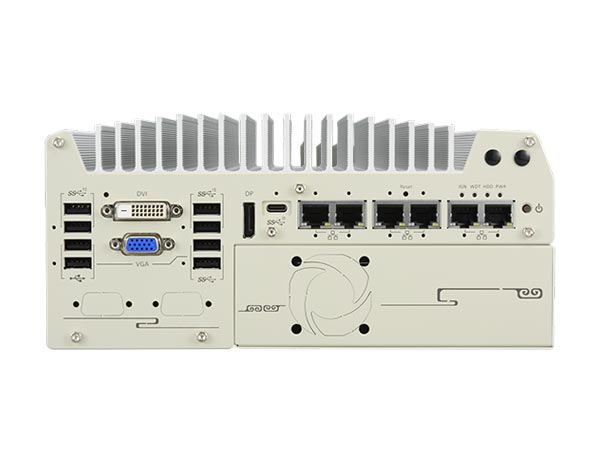

Nuvo-9006DE

Rugged Embedded Computer with Intel® 13./12. Gen Core™-CPU, 2.5GbE Ports and USB 3.2

Fanless
Compact
High-End

Features

  • Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
  • Up to 64GB DDR5-4800 RAM
  • 6x USB 3.2, 2x USB 2.0, 1x USB-C
  • 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
  • Robust and fanless, operating temperature range from -25 °C to 70 °C
  • Expansion cassette with 2x PCIe x16 slots and MezIO interface for functional expansion
  • 6x 2.5G Ethernet ports
Add-ons
Ethernet Ports
PoE
Product information "Nuvo-9006DE"

The Neousys Nuvo-9006DE is a groundbreaking embedded industrial PC designed for complex tasks in industrial automation, surveillance, and AI-based applications. With its powerful architecture and versatile connectivity, this system sets new standards. Featuring two PCIe x16 Gen. 3 slots, it enables the integration of up to two PCIe cards, allowing for flexible customization to meet specific requirements.

Key Features of the Nuvo-9006DE Industrial PC

  • Intel® Core™ 12th/13th Generation Processors: The Nuvo-9006DE is equipped with the latest Intel® Core™ processors, offering exceptional computing power and stability for demanding industrial applications.
  • Dual PCIe Slots: With two PCIe slots, the Nuvo-9006DE provides extensive options for system expansion, including additional interfaces or specialized accelerator cards.
  • Rugged Design for Industrial Environments: This industrial PC is engineered to withstand extreme conditions such as high temperatures, strong vibrations, and mechanical shocks, ensuring reliable performance under challenging circumstances.
  • High-Quality Graphics Performance: Integrated Intel® UHD Graphics delivers brilliant visuals and supports multiple displays, making it ideal for graphically intensive applications.
  • Multi-OS Compatibility: The Nuvo-9006DE supports popular operating systems such as Windows and Linux, enabling seamless integration into existing infrastructures.

Why the Nuvo-9006DE is the Ideal Industrial PC

The Neousys Nuvo-9006DE combines cutting-edge technology with rugged construction and flexible expansion options. These features make it the perfect solution for industrial applications requiring maximum performance and reliability. Optimize your processes and enhance efficiency with the Nuvo-9006DE industrial PC.

Discover the advantages of the Nuvo-9006DE and invest in a powerful, future-proof solution for your industrial projects.

Technical details

Add-ons: 2x PCIe x16 Gen3 Slot, Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, PCIe x16 Gen3 Slot, SIM Socket
Audio: 1x 3,5mm jack mic in & speaker out
CPU: Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium®
CPU Generation: 12th generation, 13th generation
CPU Socket: LGA1700
Chipset: Intel® Q670E
DC Input: 3-pin pluggable terminal block
Ethernet: 2.5G
Ethernet Ports: 1x, 2x, 3x, 4x, 5x, 6x
Intel AMT: AMT 16.0
Internal Graphics: Intel® UHD Graphics 770
Memory: 1x DDR5 Slot, 2x DDR5 Slots
Memory capacity: 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting: DIN-rail mount (optional), Wall-mount
Operating system: Windows 10, Windows 10 IoT, Windows 11
Power supply: 8 ~ 48V DC
RAID: RAID 0, RAID 1
Remote: 3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME
TPM: dTPM 2.0
USB: USB-C, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x, 9x
Video: DVI-D, DisplayPort, VGA
Downloads

Suitable MezIO® modules

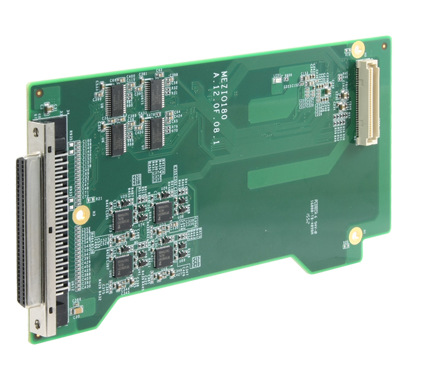

MezIO-C180-50
4x RS-232/422/485 and 4x RS-232 Ports via 68-Pin SCSI-II Connector

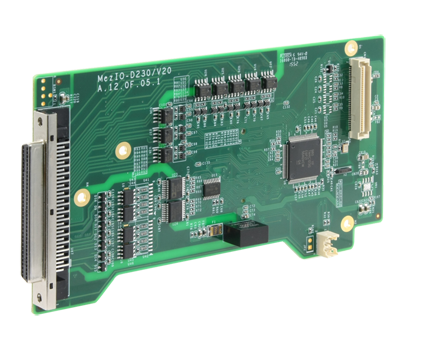

MezIO-D230-50
16-Channel Isolated DI and 16-Channel Isolated DO MezIO® Module

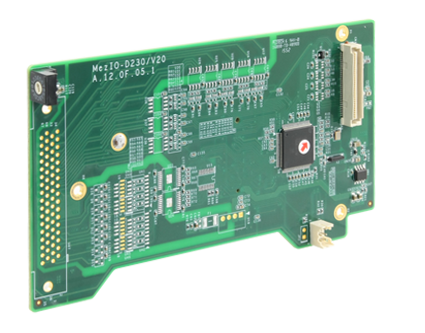

MezIO-V20
MezIO® Module with 16 Operating Modes for Ignition Control Function in Vehicles

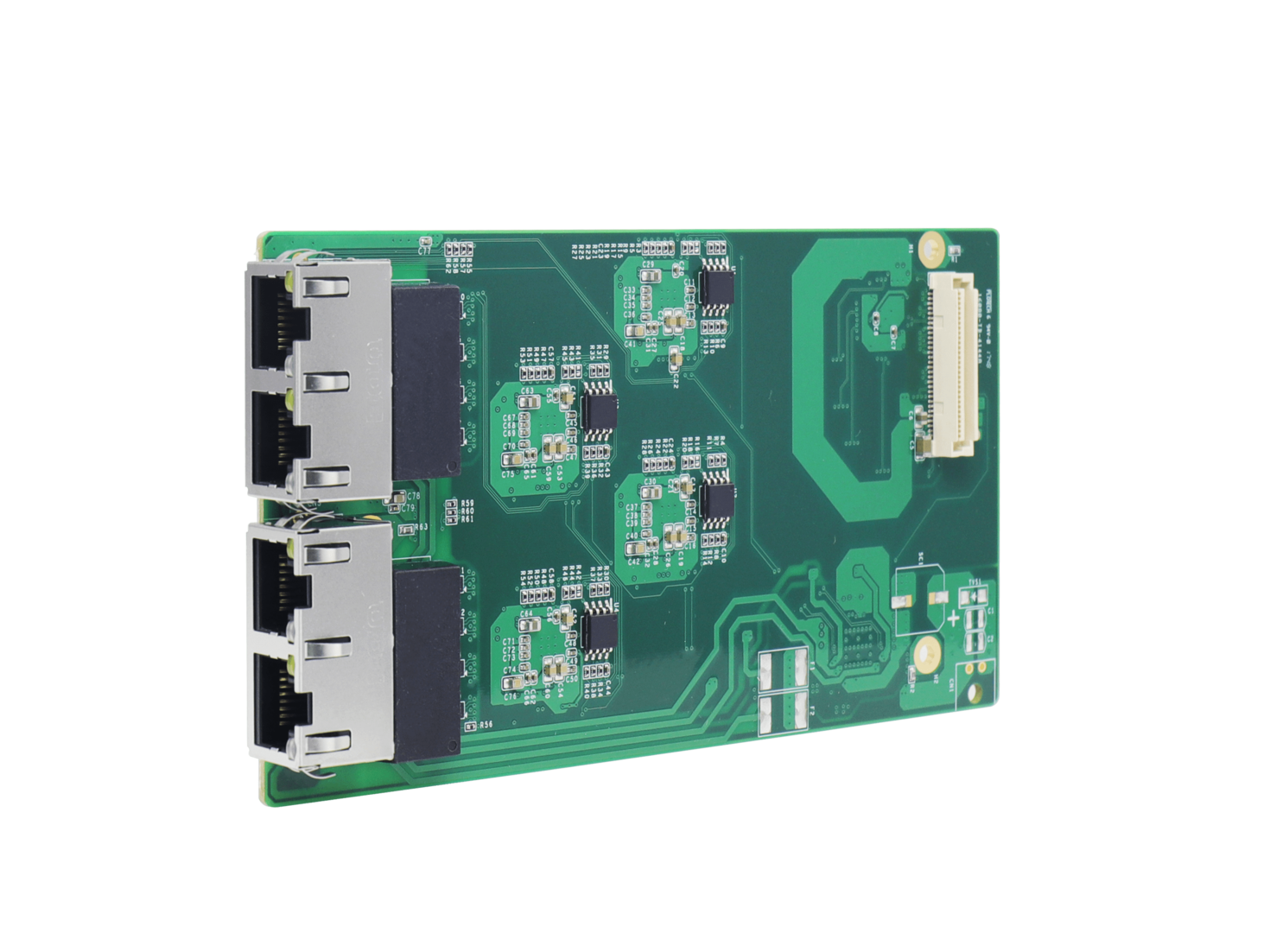

MezIO-G4
4-Port GbE MezIO Expansion Card with 9.5 kB Jumbo Frame Support

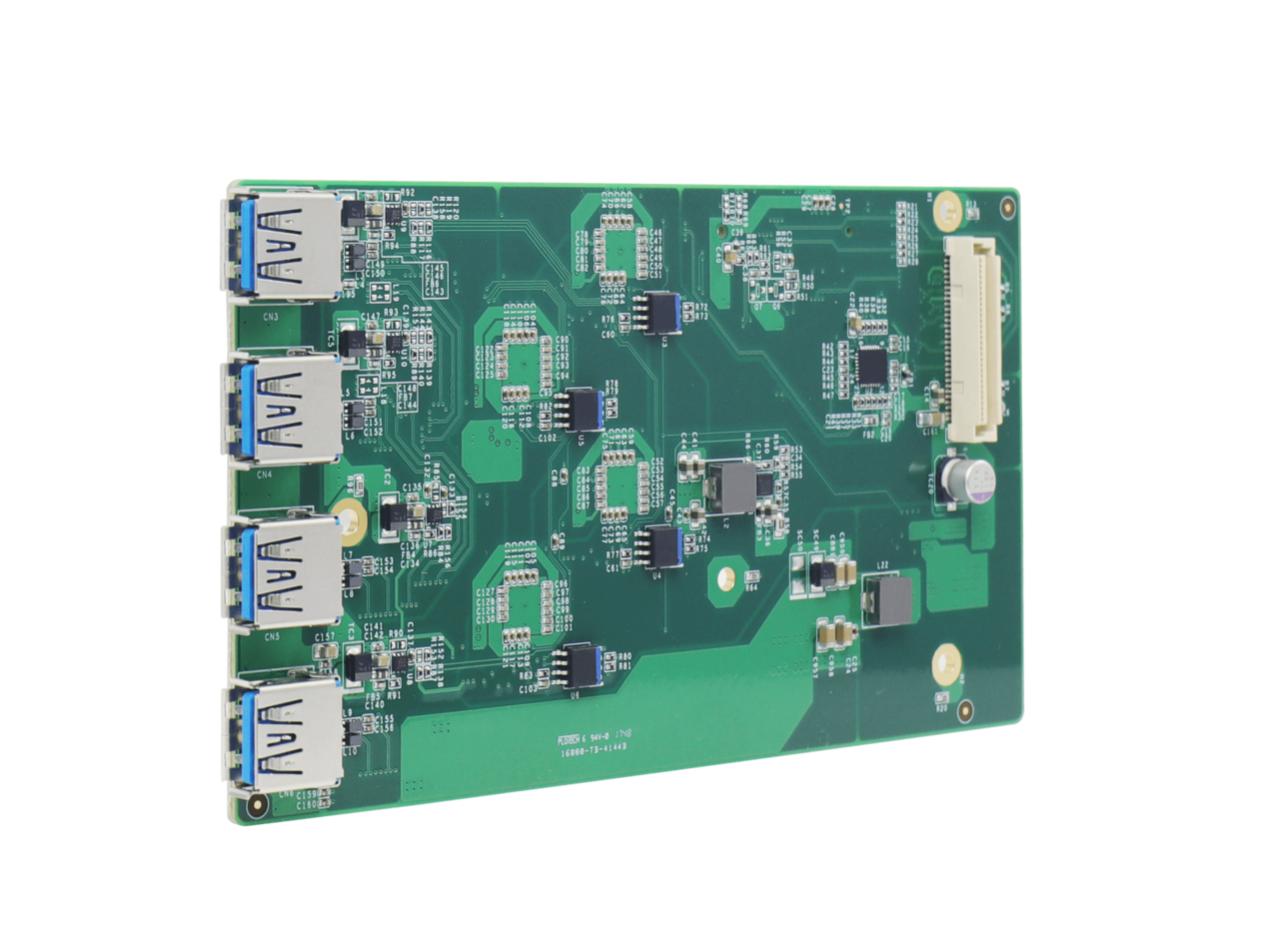

MezIO-U4-50
4-Port USB 3.1 Typ A MezIO® Modul with 5Gbps

Suitable PCIe-Cards

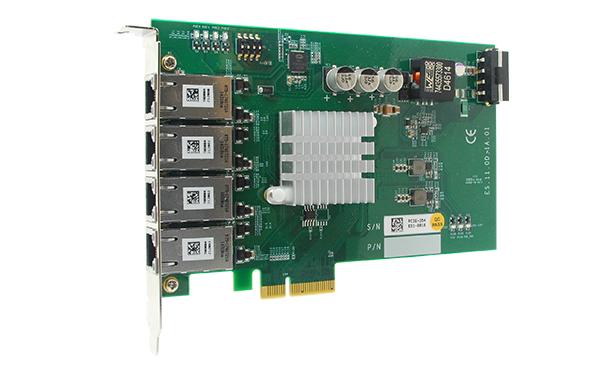

PCIe-PoE354at
Server-grade 4-Port Image Digitizer Card with Gigabit 802.3at PoE+

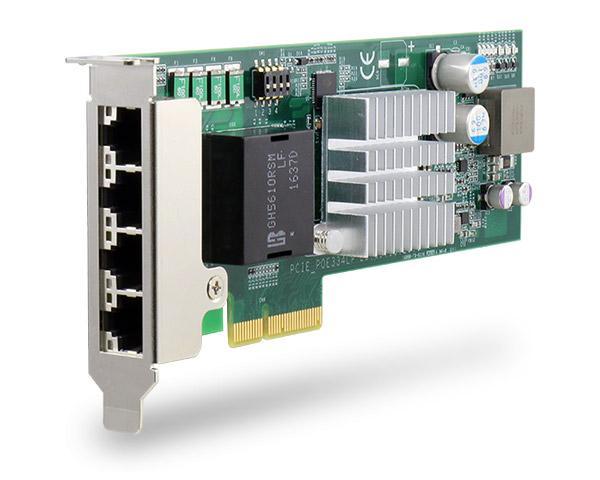

PCIe-PoE334LP
Low-profile 4-port server-grade gigabit mobile surveillance PoE+ NIC card with 1kV surge protection

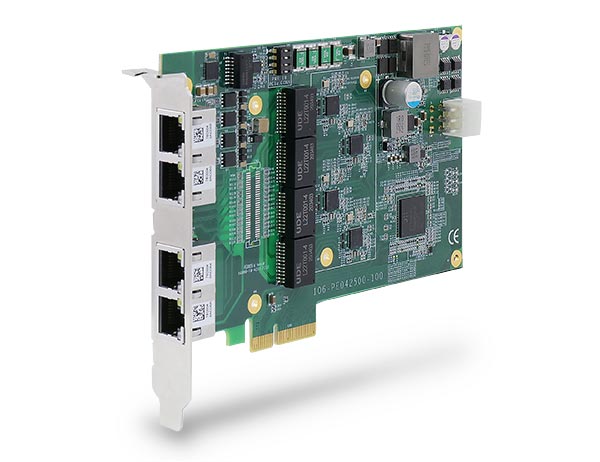

PCIe-PoE425bt
4-Port 2.5GBASE-T Network Adapter with IEEE 802.3bt PoE++
PCIe-PoE454
4-port 5GBASE-T Ethernet 802.3at PoE+ Frame Grabber Card
PCIe-PoE550X
2-port 10GbE network adapter machine vision frame grabber card with optional IEEE 802.3at PoE+

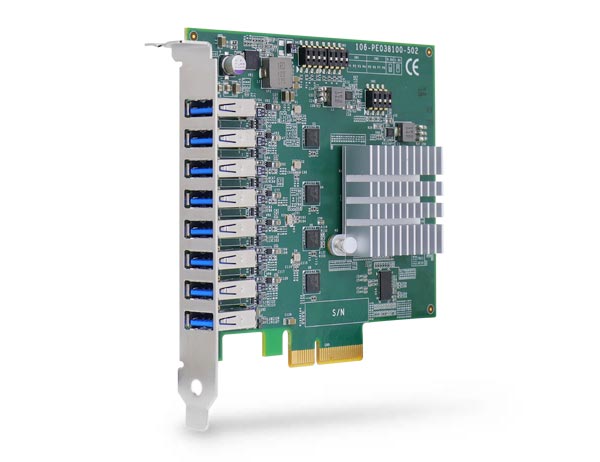

PCIe-USB381F
8-port USB 3.1 host adapter frame grabber card with 4 independent USB controllers

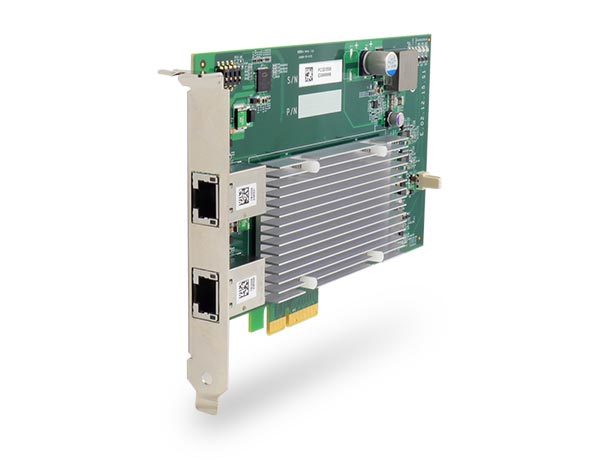

PCIe-10G550X
2-port 10GbE network adapter machine vision frame grabber card with optional IEEE 802.3at PoE+

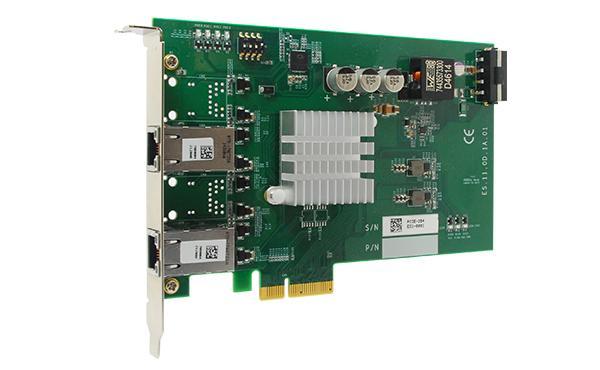

PCIe-PoE352at
Server-grade 2-Port Image Digitizer Card with Gigabit 802.3at PoE+

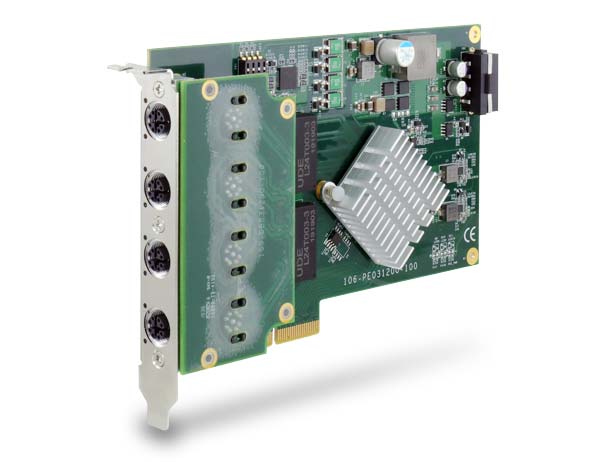

PCIe-PoE312M
4-port Server-grade Gigabit 802.3at PoE+ Card with M12 x-coded Connectors
