Features
- Intel® 9th/8th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 64 GB DDR4 2666/2400 SDRAM (two SO-DIMM slots)

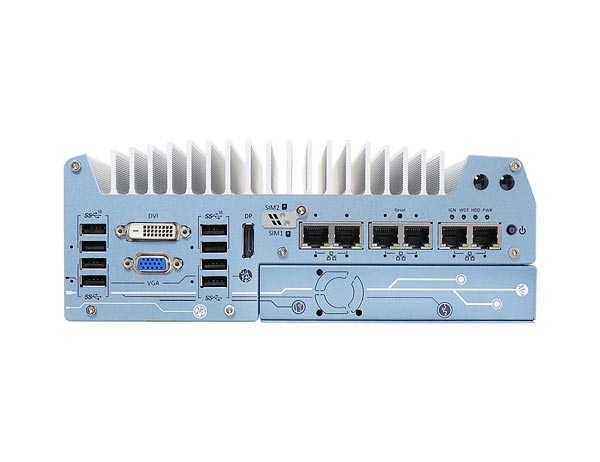

- 4x USB 3.1, DP, VGA, and DVI connections
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key Slot
- Fanless operation with a wide temperature range of -25°C to 70°C
- PCI cassette and MezIO interface for functionality extension
- 6x Gigabit Ethernet ports, 4 of which have PoE+ functionality
The Nuvo-7006P-PoE is a powerful Rugged Embedded Computer designed specifically for demanding industrial applications. With its durable construction and innovative Power-over-Ethernet (PoE) technology, this embedded PC is the perfect solution for automation, surveillance, and AI-powered systems.
Main Features of the Nuvo-7006P-PoE Rugged Embedded Computer
- High-Performance Processors: Powered by Intel® Core™ processors of the 8th and 9th generation, the Nuvo-7006P-PoE delivers exceptional computing performance and reliability for resource-intensive applications.
- Innovative PoE+ Technology: PoE+ support allows simultaneous power and data transmission over a single Ethernet cable, significantly simplifying the installation and maintenance of cameras and sensors.
- Robust Design for Extreme Environments: The Nuvo-7006P-PoE is built for use in harsh industrial settings, offering resistance to extreme temperatures, vibrations, and shocks.
- Superior Graphics Performance: Equipped with Intel® UHD Graphics, this embedded PC supports multiple displays and delivers impressive visual quality for demanding visualization tasks.
- Flexible Expansion Options: The Nuvo-7006P-PoE features PCIe and PCI slots, providing versatile customization and expansion capabilities for diverse industrial applications.
- Compatibility and Integration: This embedded PC is compatible with various operating systems and integrates seamlessly into existing systems.
Why the Nuvo-7006P-PoE is the Ideal Rugged Embedded Computer
The Nuvo-7006P-PoE combines cutting-edge technology with a rugged design to meet the high demands of industrial automation and surveillance. Its combination of powerful Intel® Core™ processors, PoE connectivity, and versatile expansion options makes it the perfect choice for challenging applications. Discover the advantages of the Nuvo-7006P-PoE and enhance your industrial processes with this innovative system.
Invest in the Nuvo-7006P-PoE Rugged Embedded Computer and benefit from a future-proof solution for your industrial challenges.
Technical details
Add-ons: | Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, PCI Slot, SIM Socket |
---|---|
Audio: | 1x 3,5mm jack mic in & speaker out |
CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
CPU Generation: | 8th generation, 9th generation |
CPU Socket: | LGA1151 |
Chipset: | Intel® Q370 |
DC Input: | 3-pin pluggable terminal block |
Ethernet: | Gigabit |
Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
Intel AMT: | AMT 12.0 |
Internal Graphics: | Intel® UHD Graphics 630 |
Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
Mounting: | DIN-rail mount (optional), Wall-mount |
Operating system: | Windows 10, Windows 10 IoT, Windows 11 |
PoE-Standard: | IEEE 802.3at (PoE+) |
Power supply: | 8 ~ 35V DC |
RAID: | RAID 0, RAID 1 |
Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
Serial Ports: | RS-232, RS-422, RS-485 |
Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
TPM: | TPM 2.0 |
USB: | USB 3.1 Gen 1, USB 3.1 Gen 2 |
USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
Video: | DVI-D, DisplayPort, VGA |
