Area of application Industry Machine control

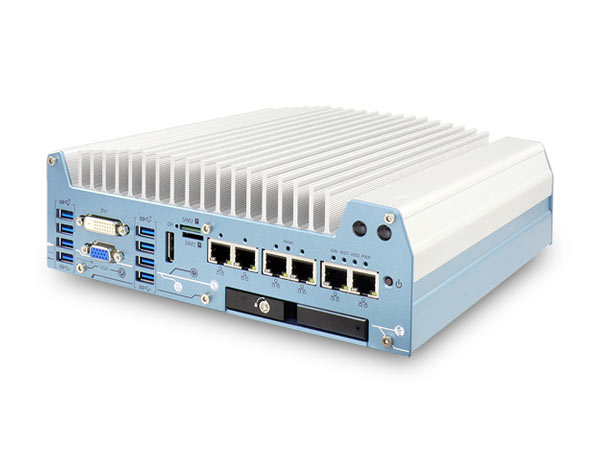

Nuvo-7006LP

Lüfterloser Embedded-PC mit Intel Core i7 / i5 / i3 CPU der 9./8. Generation

Fanless

Robust

Longterm

Product information "Nuvo-7006LP"

The Nuvo-7006LP is a modern Rugged Embedded Computer, specifically designed for applications in industrial automation, surveillance, and AI systems. Combining powerful technology with a compact design, this system sets new standards in performance and reliability.

Main Features of the Nuvo-7006LP Rugged Embedded Computer

High-Performance Intel® Core™ Processors: The Nuvo-7006LP is equipped with Intel® Core™ processors of the 8th and 9th generations, delivering excellent computing power and high reliability for demanding industrial tasks.
Rugged Design for Extreme Conditions: The Nuvo-7006LP is built to operate in harsh environments and provides protection against extreme temperatures, vibrations, and shocks, ensuring maximum reliability.
Optimized Graphics Performance: Integrated Intel® UHD Graphics offers exceptional visualizations and supports multiple displays for flexible and efficient operation.
Flexible Expansion Options: With a variety of PCIe and PCI slots, the Nuvo-7006LP allows for customization to meet diverse requirements.
Compatibility with Various Systems: This embedded PC is compatible with a wide range of operating systems and can be seamlessly integrated into existing infrastructures.

Why the Nuvo-7006LP is the Ideal Rugged Embedded Computer

The Nuvo-7006LP combines a compact form factor, powerful technology, and a rugged design to meet the demands of modern industrial applications. Its versatility and reliability make it a future-proof solution for automation, surveillance, and more.

Choose the Nuvo-7006LP Rugged Embedded Computer and benefit from a compact and powerful platform that optimizes your industrial processes and sets new benchmarks.

Technical details

Add-ons:	Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, SIM Socket
Audio:	1x 3,5mm jack mic in & speaker out
CPU:	Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium®
CPU Generation:	8th generation, 9th generation
CPU Socket:	LGA1151
Chipset:	Intel® Q370
DC Input:	3-pin pluggable terminal block
Ethernet:	Gigabit
Ethernet Ports:	1x, 2x, 3x, 4x, 5x, 6x
Intel AMT:	AMT 12.0
Internal Graphics:	Intel® UHD Graphics 630
Memory:	1x DDR4 Slot, 2x DDR4 Slots
Memory capacity:	2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting:	DIN-rail mount (optional), Wall-mount
Operating system:	Windows 10, Windows 10 IoT, Windows 11
Power supply:	8 ~ 35V DC
RAID:	RAID 0, RAID 1
Remote:	3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports:	RS-232, RS-422, RS-485
Storage:	2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME
TPM:	TPM 2.0
USB:	USB 3.1 Gen 1, USB 3.1 Gen 2
USB Ports:	1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Video:	DVI-D, DisplayPort, VGA
