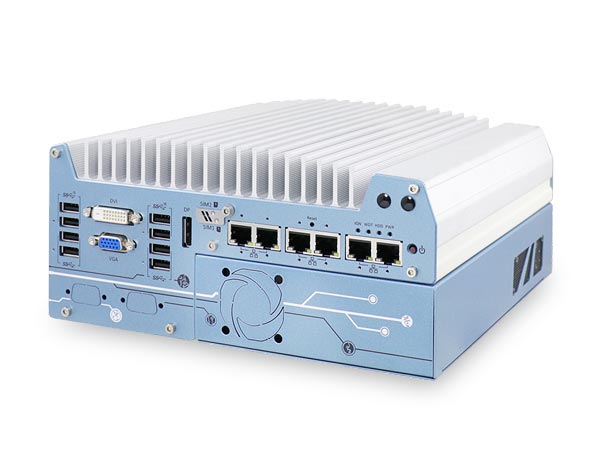

Nuvo-7006DE-PoE

Lüfterloser Embedded-PC mit Intel Core i7 / i5 / i3 CPU der 9./8. Generation

Fanless
Robust
Longterm

Features

  • Intel® 9th/8th Gen Coreâ„¢ i3/i5/i7/Pentium/Celeron CPU
  • Up to 64 GB DDR4 2666/2400 SDRAM (two SO-DIMM slots)

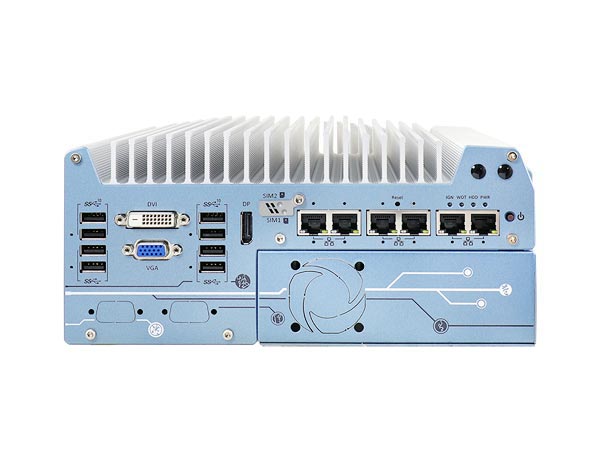

  • 4x USB 3.1, DP, VGA, and DVI connections
  • 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key Slot
  • Fanless operation with a wide temperature range of -25°C to 70°C

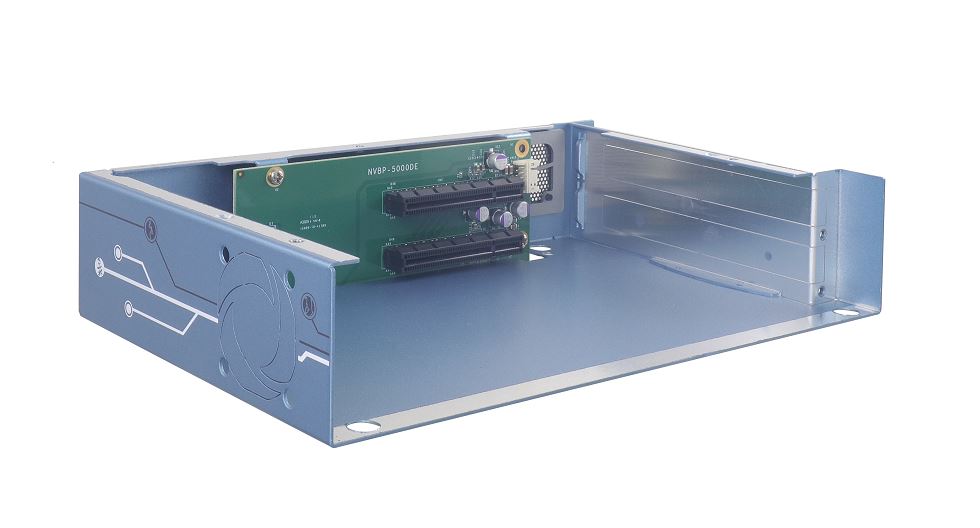

  • Expansion cassette with 2x PCIe x16 slots and MezIO interface for functionality extension
  • 6x Gigabit Ethernet ports, 4 of which have PoE+ functionality
Add-ons
Ethernet Ports
PoE
Product information "Nuvo-7006DE-PoE"

Explore the performance and versatility of the Neousys Nuvo-7006DE-PoE, an advanced embedded industrial PC specifically designed for demanding applications in industrial automation, surveillance, and AI-based systems. This innovative system sets new standards in connectivity and performance.

  • Intel® Coreâ„¢ Processors 8th/9th Generation: The Nuvo-7006DE-PoE is powered by powerful Intel® Coreâ„¢ processors from the 9th generation, providing outstanding computing power and reliability.
  • Exceptional Industrial Design: Designed for use in challenging industrial environments, the Nuvo-7006DE-PoE meets the highest standards for temperature resistance, vibration, and shock resistance, ensuring reliable performance.
  • Future-Ready Graphics Performance: The integrated Intel® UHD Graphics ensures impressive image quality and effortlessly supports multiple displays, optimizing visualization in demanding applications.
  • Versatile Expansion Options: The Nuvo-7006DE-PoE offers a wide range of PCIe and PCI slots for flexible expansion options, meeting individual requirements.
  • Cross-Compatible: This embedded PC is compatible with a variety of operating systems, allowing seamless integration into existing systems.

The Neousys Nuvo-7006DE-PoE redefines the standards for powerful embedded PCs in a new way. Experience the future of industrial automation with this groundbreaking system that combines advanced technology and robust design at the highest level. Harness the unique performance and versatility of the Nuvo-7006DE-PoE for your individual industrial applications.

Technical details

Add-ons: 2x PCIe x16 Gen3 Slot, Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, PCIe x16 Gen3 Slot, SIM Socket
Audio: 1x 3,5mm jack mic in & speaker out
CPU: Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium®
CPU Generation: 8th generation, 9th generation
CPU Socket: LGA1151
Chipset: Intel® Q370
DC Input: 3-pin pluggable terminal block
Ethernet: Gigabit
Ethernet Ports: 1x, 2x, 3x, 4x, 5x, 6x
Intel AMT: AMT 12.0
Internal Graphics: Intel® UHD Graphics 630
Memory: 1x DDR4 Slot, 2x DDR4 Slots
Memory capacity: 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting: DIN-rail mount (optional), Wall-mount
Operating system: Windows 10, Windows 10 IoT, Windows 11
PoE-Standard: IEEE 802.3at (PoE+)
Power supply: 8 ~ 35V DC
RAID: RAID 0, RAID 1

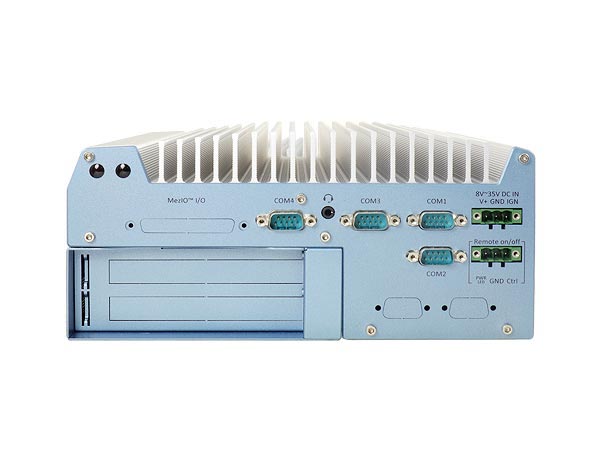

Remote: 3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME
TPM: TPM 2.0
USB: USB 3.1 Gen 1, USB 3.1 Gen 2
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Video: DVI-D, DisplayPort, VGA
