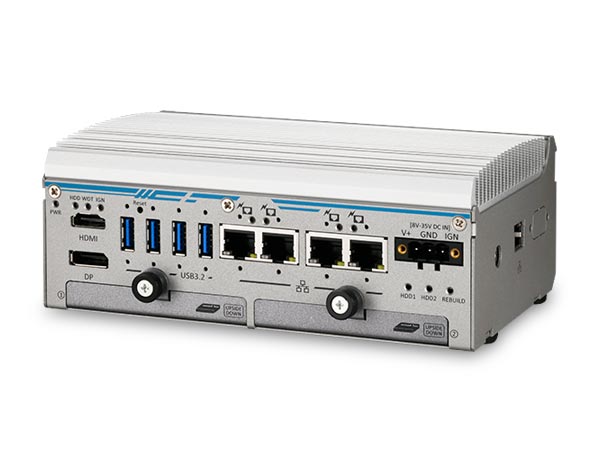

POC-700 series
POC-700 Serie
- Intel® Alder Lake Core™ i3-N305 or Atom® x7425E CPU
- Up to 16GB DDR5-4800 RAM
- 4x USB 3.2, 4x Gigabit Ethernet (PoE+) ports, Displayport, HDMI
- 1x M.2 2280 M key slot, 1x full-size mini PCIe
- Fanless operation with a wide temperature range from -25°C to 70°C
- High performance with very compact dimensions
POC-751VTC
- Intel® Alder Lake i3-N305 Processor (15 W)
- Four GbE-PoE+ ports and four USB 3.2 Gen 2 ports with screw lock
- Two monitor outputs (DP++ and HDMI 1.4b)
- Two isolated CAN 2.0 ports, with support for SocketCAN in Linux
- Isolated DI (8-channel) and isolated DO (8-channel)
-
Power supply via 8 – 35 V DC input, with integrated ignition control
-
E-Mark and EN 50155 EMC certification
