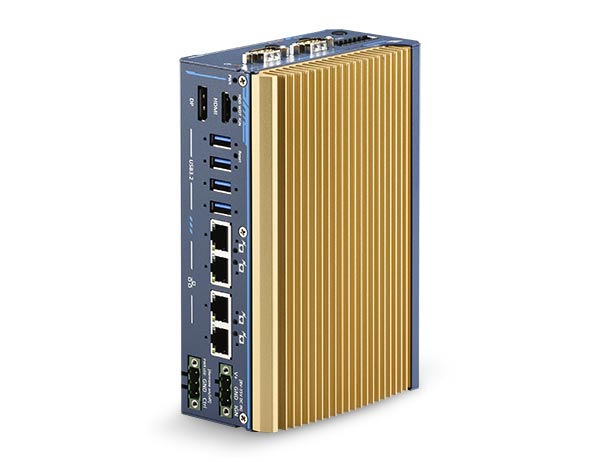

POC-715
Ultra-compact Embedded Computer with Intel® Core™ i3-N305 CPU and 4x PoE+
Features
- Intel® Alder Lake Core™ i3-N305 CPU
- Up to 16GB DDR5-4800 RAM
- 4x USB 3.2, 1x Displayport, 1x HDMI
- 4x Gigabit Ethernet ports with PoE+ function
- 1x M.2 2280 M key, 1x full size mini PCIe
- Ultra compact fanless design
- DIN rail mount
- UL, CE/FCC Class A and MIL-STD-810G certified
POC-715 is Neousys' next-generation ultra-compact embedded controller, with a choice of the latest Intel® Alder Lake i3-N305 or x7425E processor that is capable of delivering up to 1.3x the CPU performance when compared to previous POC-500 series.
Neousys POC-715 is powered by Intel's Alder Lake i3-N305 featuring 8-core/ 8-thread processor with 32EUs UHD Graphics to support Intel OpenVINO™ for AI inference capabilities. The systems adopts DDR5-4800 to offer up to 1.8x the memory bandwidth over DDR4 to boost overall system performance. It also has four USB3.2 Gen2, and four GigE PoE+ ports with screw lock mechanisms to connect and secure industrial cameras for machine vision applications. Display output wise, there are HDMI and DP video outputs to support high-definition display devices. As for connections and expansions, POC-700 features isolated DIO for device monitoring/control, M.2 2280 M key for SATA SSD and a mini-PCIe socket for wireless WiFi, LTE/5G or CAN bus device.
Measuring just 64 x 116 x 176mm, the ultra-compact POC-715 can easily fit into confined spaces and is a seamless upgrade from POC-500 series with identical footprint. Benefiting from the performance gains of the latest Intel CPU, wide-temperature fanless design, and ample interfaces for industrial cameras and I/Os, POC-715 is perfect for machine vision and smart city applications.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, MezIO® Port, SIM Socket |
|---|---|
| CPU: | Intel® i3-N305 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, EN62368-1, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II, UL 62368-1 (UL series only) |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR5 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB |
| Mounting: | DIN-rail mount, Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2280 NVME |
| TPM: | dTPM 2.0, fTPM 2.0 |
| USB: | USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
