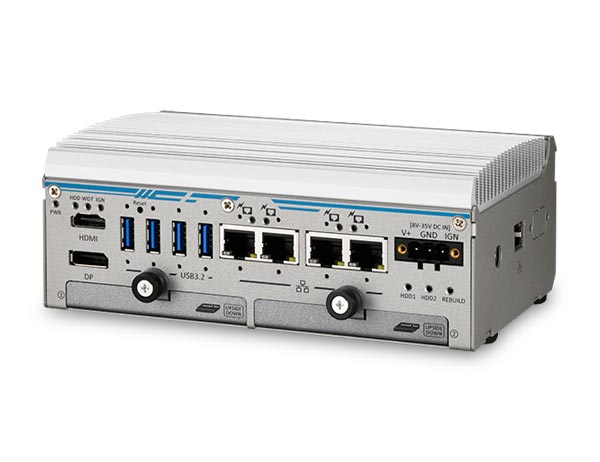

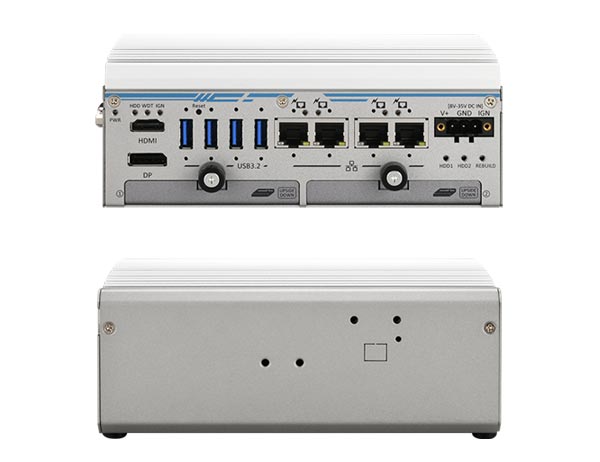

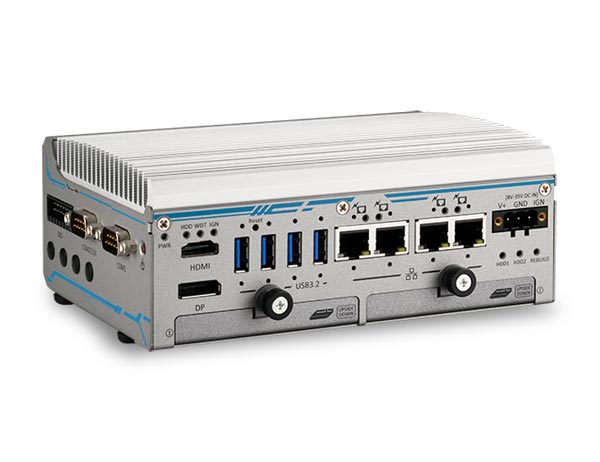

POC-764VR
Fanless surveillance system with Intel® Core™ i3-N305, 4x PoE+, and 2x 2.5” SSDs with RAID 0/1
Features
- Intel® Alder Lake Core i3-N305 CPU
- Up to 16GB DDR5-4800 SODIMM
- 2x 2.5" SSD with RAID 0/1 or JBOD
- 1x M.2 2280 NVME
- 4x Gigabit PoE+ ports, 1x 2.5G Ethernet
- 4x USB 3.2 Gen2 ports, DisplayPort, and HDMI
- 2x miniPCIe and SIM socket for expansions
- -10°C ~ 55/70°C operating temperature
- 8-35V wide input range with ignition power control
- MIL-STD-810H & CE/FCC EN 55032 & EN 55035 certification
The POC-764VR is Neousys' new ultra-compact surveillance computer platform. Based on the POC-700 series, it offers advanced RAID storage and enhanced networking features, making it ideal for surveillance, security, and smart city applications. The system ensures data redundancy, reliability, and seamless connectivity in critical environments.
Equipped with four Gigabit PoE+ ports and an ignition function, the POC-764VR can connect up to four IP cameras for mobile and stationary surveillance applications. Its RJ45 locking mechanism guarantees reliable Ethernet connectivity in dynamic environments. For video recording, it features a built-in hardware RAID controller that supports two 2.5-inch HDDs/SSDs in RAID 0/1 configuration, enhancing data redundancy or providing extensive storage capacity. Additionally, a 2.5 GbE port offers flexible data exchange with the backbone infrastructure, while two Mini-PCIe slots support wireless WiFi, LTE/5G, or CAN bus devices.
The POC-764VR is powered by an Intel® Alder Lake Core™ i3-N305 8-core/8-thread processor with 32EUs UHD graphics, providing not only impressive computing performance but also real-time AI inference through Intel OpenVINO™. Its compact size, PoE+ capabilities, and RAID storage make the POC-764VR an ideal platform for surveillance, security, and asset management applications.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, SIM Socket |
|---|---|
| CPU: | Intel® i3-N305 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | 2.5G, Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR5 Slot |
| Memory capacity: | 4 GB, 8 GB, 16 GB |
| Mounting: | DIN-rail mount, Wall-mount (optional) |
| Operating Temperature: | -10°C ~ 55°C, with Fan -10°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE+ Ports: | 4x RJ45 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
