NISE 50 series

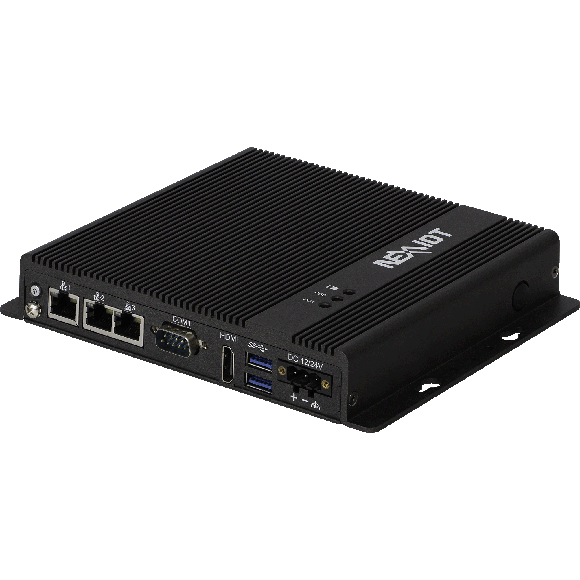

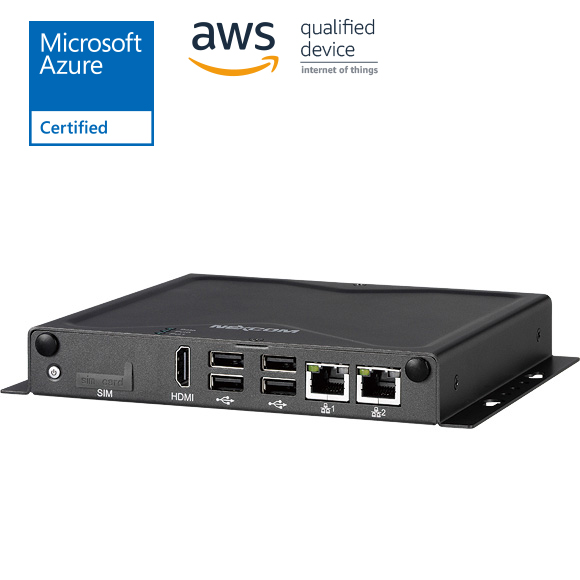

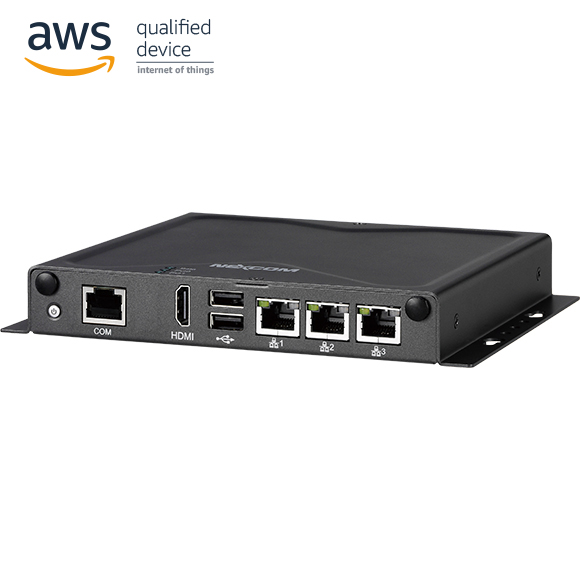

NISE-50 Series – Compact Low-Power Industrial PCs for IoT and Automation
The NISE-50 Series from Nexcom offers fanless, compact industrial PCs specifically designed for applications in factory automation, building management and IoT gateway deployment. Equipped with energy-efficient Intel® Atom™ or Celeron® processors, these systems deliver reliable performance at minimal power consumption.
- Onboard Intel N97 Quad Core CPU
- Up to 16GB DDR5 RAM
- M.2 2280/2242 SATA NVME
- 3x Intel 2.5 GbE ports
- 2x/6x USB 3.2, 1x/2x COM, 1x HDMI
- TPM 2.0, Windows 11 approved
- 12/24V DC input
- CE/FCC Class A certified
- Intel Dual Core / Quad Core CPU
- Up to 8GB DDR3 RAM
- 16GB - 32GB Onboard EMMC + optional M.2 2242 module
- mPCIe Slots for add-on cards
- USB 2.0 / 3.0, 3x COM, 1x DisplayPort
- 12V / 24V DC input
- CE/FCC certified
- Intel Atom / Celeron CPU
- Up to 16GB DDR4 RAM
- 2x USB 3.0, 2x USB 2.0, 2x COM
- 3x HDMI, 3x GbE LAN
- 32GB Onboard EMMC and M.2 SATA Slot
- Full Size mPCIe for add-on cards
- -10 ~ 60°C operating temperature
- CE & FCC Class A certified
- Intel Celeron / Core CPU der 11. Generation
- Bis zu 32GB DDR4 RAM
- 3x USB 3.0, 1x USB 2.0, 2x COM
- 3x Intel GbE LAN Port
- 4x HDMI, unterstützt 4k @ 30Hz
- TPM 2.0 Modul
- -10 ~ 60°C Betriebstemperatur
- 12V - 24V DC Input
Thanks to their rugged design and extended operating temperature range of -10°C to 60°C, these devices are ideal for deployment in demanding industrial environments. The extensive connectivity options, including Gigabit Ethernet, RS-232/422/485 and USB ports, enable seamless integration into existing systems. Additionally, three Mini-PCIe slots provide flexibility for wireless communication via Wi-Fi, Bluetooth or LTE modules.
With support for various operating systems such as Windows 10 IoT and Linux, as well as optional storage options via eMMC or mSATA, the NISE-50 industrial PCs offer a versatile platform for modern automation and IoT applications.
