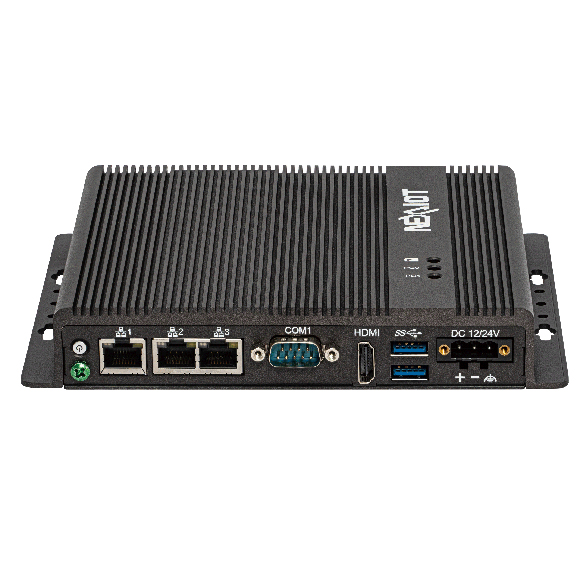

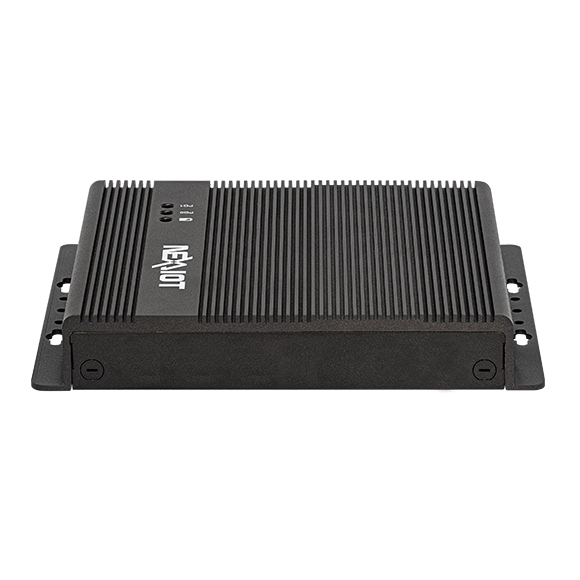

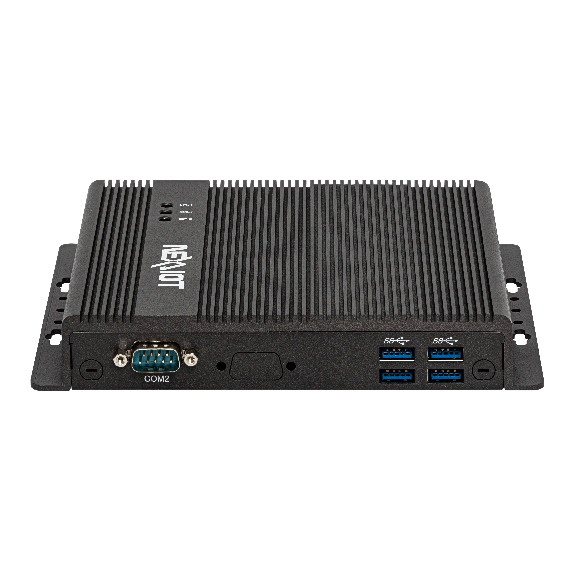

NISE-50-A04-03
Fanless compact low-power industrial PC with Intel N97 Quad Core CPU
Features
- Onboard Intel N97 Quad Core CPU
- Up to 16GB DDR5 RAM
- M.2 2280/2242 SATA NVME
- 3x Intel 2.5 GbE ports
- 6x USB 3.2, 2x COM, 1x HDMI
- TPM 2.0, Windows 11 approved
- 12/24V DC input
- CE/FCC Class A certified
NISE 50 A04-03 is a fanless PC powered by the latest generation Intel® N97 processor. It delivers power-efficient performance designed for next-generation industrial edge embedded systems that require high-resolution graphics and low power consumption - such as industrial automation, intelligent transportation, retail, and smart city IoT solutions.
NISE 50 A04-03 supports an operating temperature range of -20°C to 60°C, ensuring reliable performance in industrial environments. It features strong connectivity with 3 x 2.5GbE LAN ports and 2 x COM ports, ideal for Modbus TCP and Modbus RTU communication. The system supports scalable networks and flexible storage configurations with 1 x M.2 slot for 5G/LTE, 1 x M.2 slot for Wi-Fi and Bluetooth, and 1 x M.2 slot for storage. It also supports 12V DC/24V DC power input and features onboard TPM 2.0 for enhanced security.
Technical details
| Add-ons: | M.2 2242 B key, M.2 3052 B key, SIM Socket |
|---|---|
| CPU: | Intel® N97 |
| Certificates: | CE, FCC Class A |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x, 3x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR5 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -20°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11, Windows 11 IoT |
| Power supply: | 12V DC, 24V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2242 NVMe, M.2 2280 NVME |
| TPM: | TPM 2.0 |
| USB: | USB 3.2 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Video: | HDMI |
