NISE-505
Fanless compact low-power IoT gateway with Intel Celeron J1900 CPU
Features
- Intel Celeron J1900 Quad Core CPU
- Up to 4GB DDR3L RAM
- 32GB onboard EMMC, optional mSATA module
- 3x Intel GbE LAN ports
- mPCIe-Slot for add-on cards

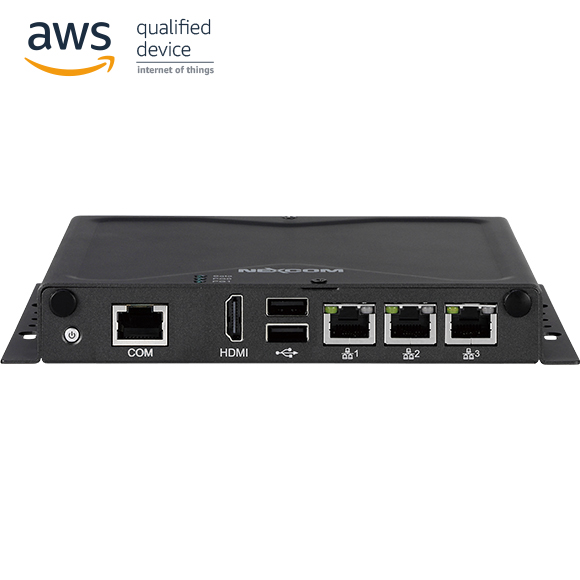

- 2x USB 2.0, 1x HDMI, 1x RJ45 COM

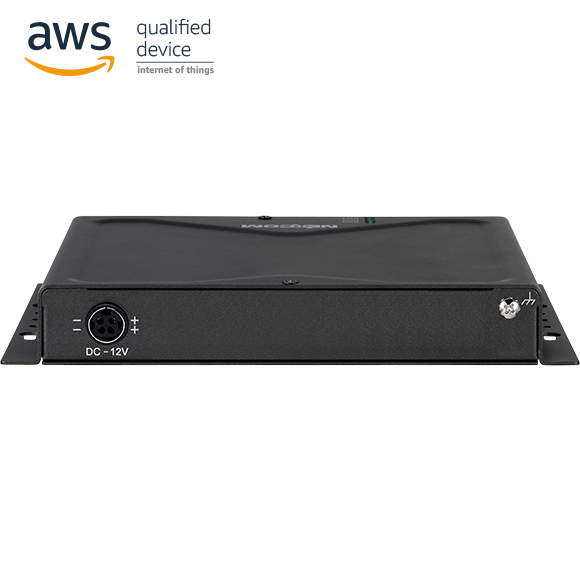

- 12V DC Input
- CE/FCC certified
Powered by the latest generation of Intel® Celeron® processor J1900 (formerly codenamed "Bay Trail"), NISE 505 series positions at the intelligent IoT gateway for factory automation and for smart city applications. Up to 4G DDR3L memory, the NISE 505 series support operating temperature from -10°C to 60°C with 12V DC input with +/-20% range. The NISE 505 series have strong connectivity - Ethernet-based LAN port and traditional RS232, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there is 1 x mini-PCIe sockets which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth module. NISE 505 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port |
|---|---|
| CPU: | Intel® Celeron® J1900 |
| Certificates: | CE, FCC Class A |
| DC Input: | 4-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -10°C ~ 55°C |
| Operating system: | Windows 7, Windows 10, Windows 10 IoT |
| Power supply: | 12V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | On-board EMMC, mSATA module (optional) |
| USB: | USB 2.0 |
| USB Ports: | 1x, 2x |
| Video: | HDMI |
