AC-IMX390-H190
GMSL2 camera with Sony IMX390 sensor and a 2MP resolution (1920x1080)
Features
- SONY IMX390 CMOS Sensor and GEO SEMI GW5200 ISP
- 1920x1080 uncompressed UYVY video output
- IP67 + IP69K waterproof on the lens side
- Enhanced edge focus and lens centering via 5-axis active adjustmen
- Object Distance 0.5 M to infinity
Product information "AC-IMX390-H190"
The AC-IMX390 series cameras feature advantages such as IP67 waterproof, high dynamic range (120dB HDR), auto white balance (AWB), and LED flicker mitigation (LFM), making them ideal choices for computer vision applications on mobile platforms in outdoor environments where illumination conditions are constantly changing.
Technical details
| CMOS : | SONY IMX390, 1/2.7” optical format with 3μm x 3μm pixel size |
|---|---|
| Connectors: | Male FAKRA Z Connector |
| Current Consumption : | ≤ 165mA @ 12V |
| FPS: | 30 FPS (fixed) |
| HDR (High Dynamic Range): | 120dB |
| ISP: | GEO SEMI GW5200 |
| LFM (LED Flicker Mitigation): | Yes |
| Lens Mounting: | 5-axis active adjustment with adhesive dispense |
| Operating Temperature: | -40°C ~ 85°C |
| Screen resolution: | 2MP (1920 x 1080) |
| Serializer: | MAX9295 |
| Video Format: | YUV422 (UYVY) |
| Waterproof: | IP67 + IP69K on the lens side IP67 on the FAKRA side, waterproof FAKRA connector |
Downloads
Jetson Orin

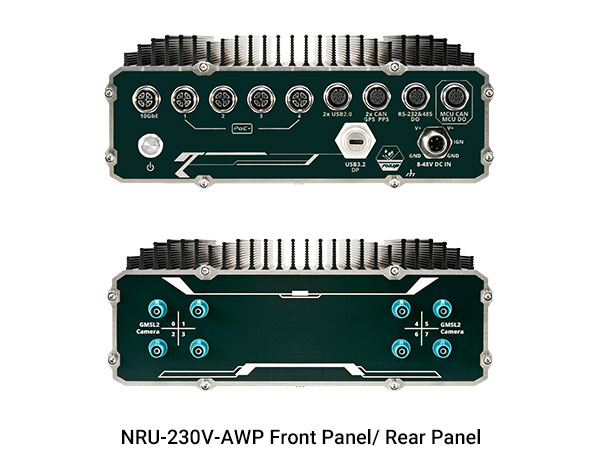

NRU-230V-AWP-JAO32
- Powered by NVIDIA® Jetson AGX Orin™ SoM
- IP66 waterproof and dustproof
- Supports 8x GMSL2 automotive cameras via FAKRA Z connectors
- 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
- 2x isolated CAN 2.0, 1x RS232 and 1x isolated RS485 via M12 A-coded connectors
NRU-230V-AWP-JAO64
- Powered by NVIDIA® Jetson AGX Orin™ SoM
- IP66 waterproof and dustproof
- Supports 8x GMSL2 automotive cameras via FAKRA Z connectors
- 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
- 2x isolated CAN 2.0, 1x RS232 and 1x isolated RS485 via M12 A-coded connectors

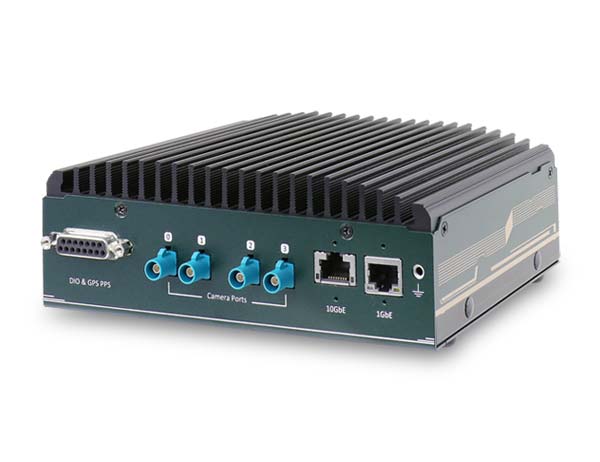

NRU-51V-NX8
- NVIDIA® Jetson Orin™ NX / Xavier™ NX SOM with JetPack
- Support for 4x GMSL2 vehicle cameras via FAKRA Z connectors
- 1x 10GBASE-T 10Gb, 1x 1GBASE-T 1Gb Ethernet port
- 2x Mini-PCIe sockets for Wi-Fi/GNSS/NVMe/CAN modules
- 1x M.2 3042/3052 B Key socket for mobile 4G/5G communication
- 1x isolated CAN 2.0, 1x COM port, and 1x GPS PPS input
NRU-51V-NX16
- NVIDIA® Jetson Orin™ NX / Xavier™ NX SOM with JetPack
- Support for 4x GMSL2 vehicle cameras via FAKRA Z connectors
- 1x 10GBASE-T 10Gb, 1x 1GBASE-T 1Gb Ethernet port
- 2x Mini-PCIe sockets for Wi-Fi/GNSS/NVMe/CAN modules
- 1x M.2 3042/3052 B Key socket for mobile 4G/5G communication
- 1x isolated CAN 2.0, 1x COM port, and 1x GPS PPS input

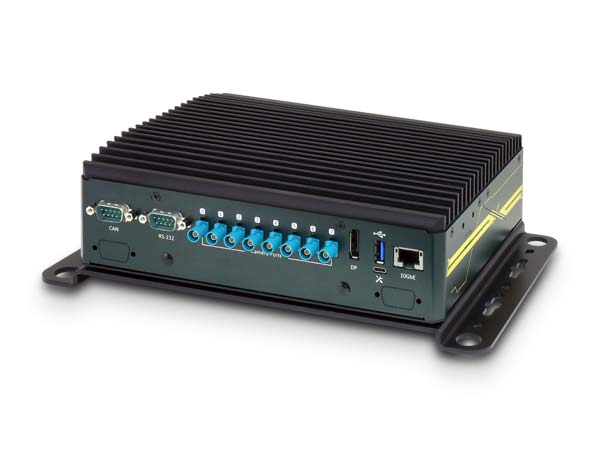

NRU-110V-F
- NVIDIA® Jetson AGX Xavier™ SOM combined with JetPack 4.4
- 32GB LPDDR4 SOM RAM
- 1x 10 Gigabit Ethernet port
- 1x M.2 2280 NVME
- Mini-PCIe socket for a Wi-Fi or 4G module
- 1x CAN 2.0 and 1x isolated DIO
- Support for 8 GMSL vehicle cameras via FAKRA Z connectors
NRU-51V+-JON16
- NVIDIA® Jetson Orin™ NX / Xavier™ NX SOM with JetPack
- Support for 4x GMSL2 vehicle cameras via FAKRA Z connectors
- 1x 10GBASE-T 10Gb, 1x 1GBASE-T 1Gb Ethernet port
- 2x Mini-PCIe sockets for Wi-Fi/GNSS/NVMe/CAN modules
- 1x M.2 3042/3052 B Key socket for mobile 4G/5G communication
- 1x isolated CAN 2.0, 1x COM port, and 1x GPS PPS input
