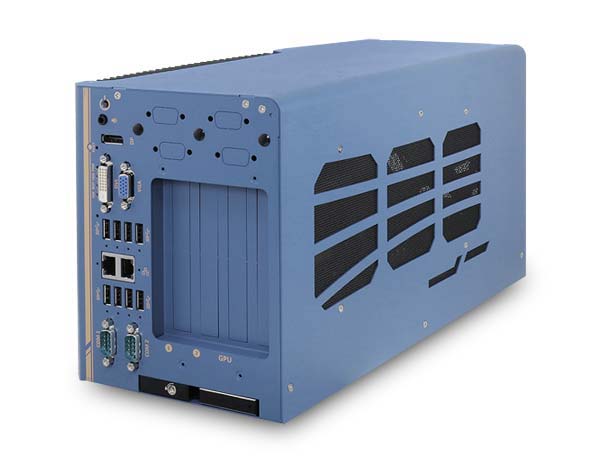

Nuvo-8108GC
Industrial-Grade Edge AI Platform with Support for NVIDIA® RTX GPUs
Features
- Supports an NVIDIA® RTX 2xxx graphics card up to 250W
- Intel® Xeon® E- or 9th/8th Gen Core™ i7/i5 CPU
- Up to 128 GB DDR4-2133 RAM (4 SODIMM slots)
- 2 x16 and 2 x8 PCIe slots (Gen3) for expansion cards
- 8 – 35V wide-range input with built-in ignition control
- Suitable for harsh environments with temperatures from -25 °C to 60 °C
The Nuvo-8108GC is a robust edge AI platform designed in an industrial PC form factor, featuring special capabilities for use in vehicles. The platform is optimized for utilizing a high-end NVIDIA® graphics card (250 W power), providing an enormous computing performance of up to 14 TFLOPS at FP32 precision for new GPU-accelerated edge computing applications, such as autonomous vehicles, visual inspections, and surveillance/security technology.

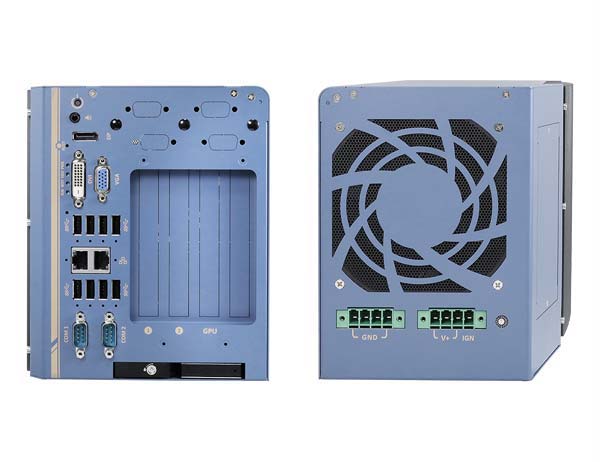

The Nuvo-8108GC operates with Intel® Xeon® E- or 8th/9th Gen Core™ CPUs (up to 8 processor cores/16 threads), paired with the workstation-proven Intel® C246 chipset, which supports up to 128 GB of DDR4 memory (ECC or non-ECC). The system features an internal SATA connector for a 2.5-inch SATA hard drive or SSD and a hot-swappable 2.5-inch drive bay for easy drive replacement. Additionally, it includes an M.2 2280 NVMe socket for fast read and write access. The front-accessible GbE and USB 3.1 ports (Gen1/Gen2) are protected from accidental disconnection with a screw-locking mechanism. Besides the x16 PCIe slot (8 lanes) for the GPUs, the Nuvo-8108GC includes two additional x8 PCIe slots (4 lanes each) and one x16 PCIe slot (8 lanes) to expand functionality for data acquisition and analysis applications or data exchange.
The Nuvo-8108GC features a brand-new power supply concept with input voltages ranging from 8 to 35 V DC, capable of meeting the substantial power requirements of the 250 W GPU. The platform includes built-in ignition control, allowing it to be installed in vehicles without further preparation and powered via the vehicle's onboard system. Mechanical features of the Nuvo-8108GC platform include Neousys' patented heat dissipation concept*, vibration-dampening mounting brackets*, and a pressure bar for GPUs (patent pending), ensuring the platform remains operational under extreme conditions and in various environments. The Nuvo-8108GC is Neousys' solution for the ever-increasing demand for TFLOPS in industrial GPU platforms. This industrial PC brings industrial-grade concepts for power supply, heat dissipation, and well-thought-out mechanics to AI inference applications, extending their traditional application scenarios from laboratory computing environments to practical applications where robust and reliable solutions are required.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Xeon E, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Chipset: | Intel® C246 |
| DC Input: | 2x 4-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Intel AMT: | AMT 12.0 |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots, 3x DDR4 Slots, 4x DDR4 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB |
| Mounting: | Damping brackets |
| Operating Temperature: | -25°C ~ 50°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | TPM 2.0 |
| USB: | USB 2.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x |
| Video: | DVI-D, DisplayPort, VGA |
