TDM-P156WH5TAGF-RND2
15.6" touch monitor for defense, MIL-STD-461G/1275E certified
Features
- 15.6 inch touch monitor especially for defense
- Robust capacitive LCD touchscreen
- 1920 x 1080p resolution
- Front protection class IP65
- Rackmount with special handles
- Screwable connections
- Temperature range from -40 ~ 70°C
- Certified according to MIL-STD-1275E, MIL-STD-461G and others
Product information "TDM-P156WH5TAGF-RND2"
The TDM-P156WH5TAGF-RND2 is a particularly robust 15.6-inch touch monitor from Elgens that has been specially developed for military deployment scenarios and harsh industrial environments. Despite its compact format, it offers impressive brightness, state-of-the-art image technology and the highest reliability according to military standards.
Main features:
- 15.6" Full-HD LCD (1920x1080) - High-resolution display in a compact format.
- P-Cap touchscreen - Responsive, precise touch operation even under difficult conditions.
- 1500 nits LED backlight - For excellent readability even in direct sunlight.
- Optical bonding with Mosmite film and AR coating - Reduces internal reflections, improves image sharpness and increases structural robustness.
- Anti-glare surface - Prevents distracting reflections for optimum visibility.

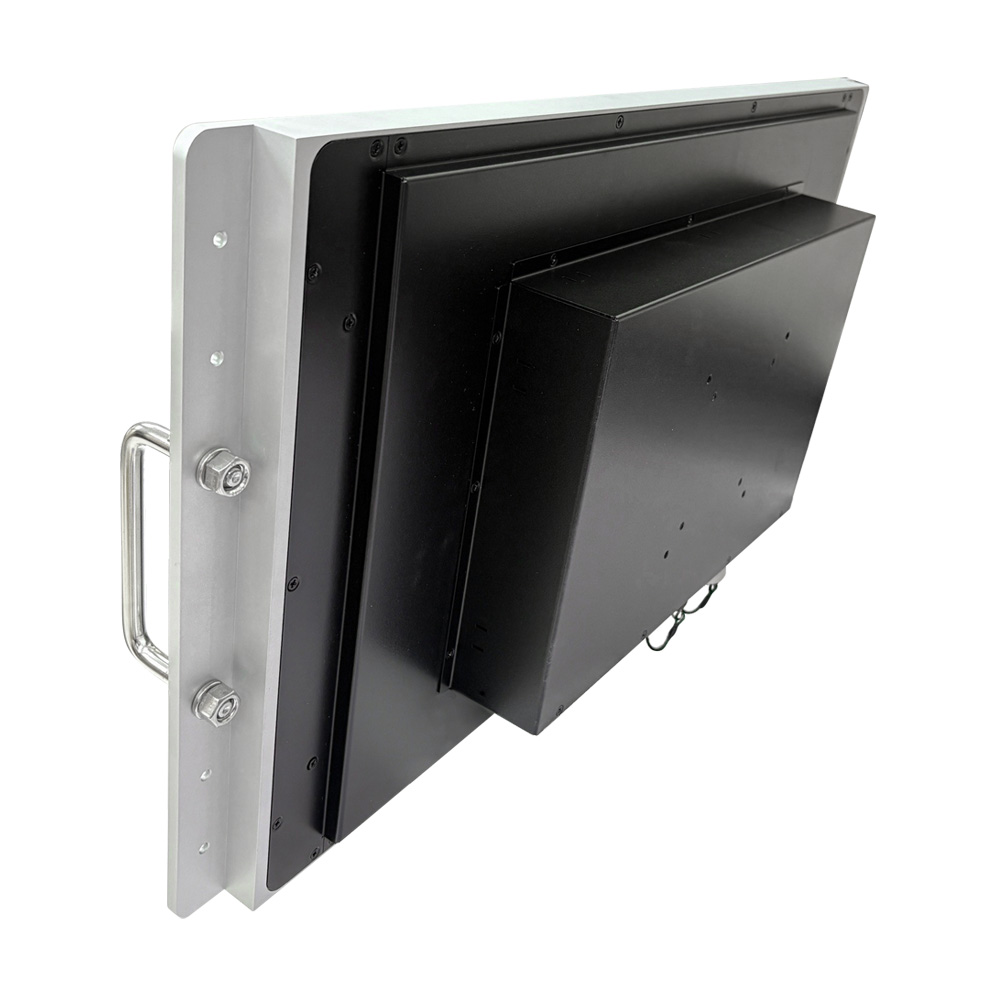

- IP65-certified aluminum front panel in rackmount design - Protection against dust, water and shocks, ideal for field use.
- Versatile video inputs (HDMI, VGA, DisplayPort) - For flexible integration into existing systems.

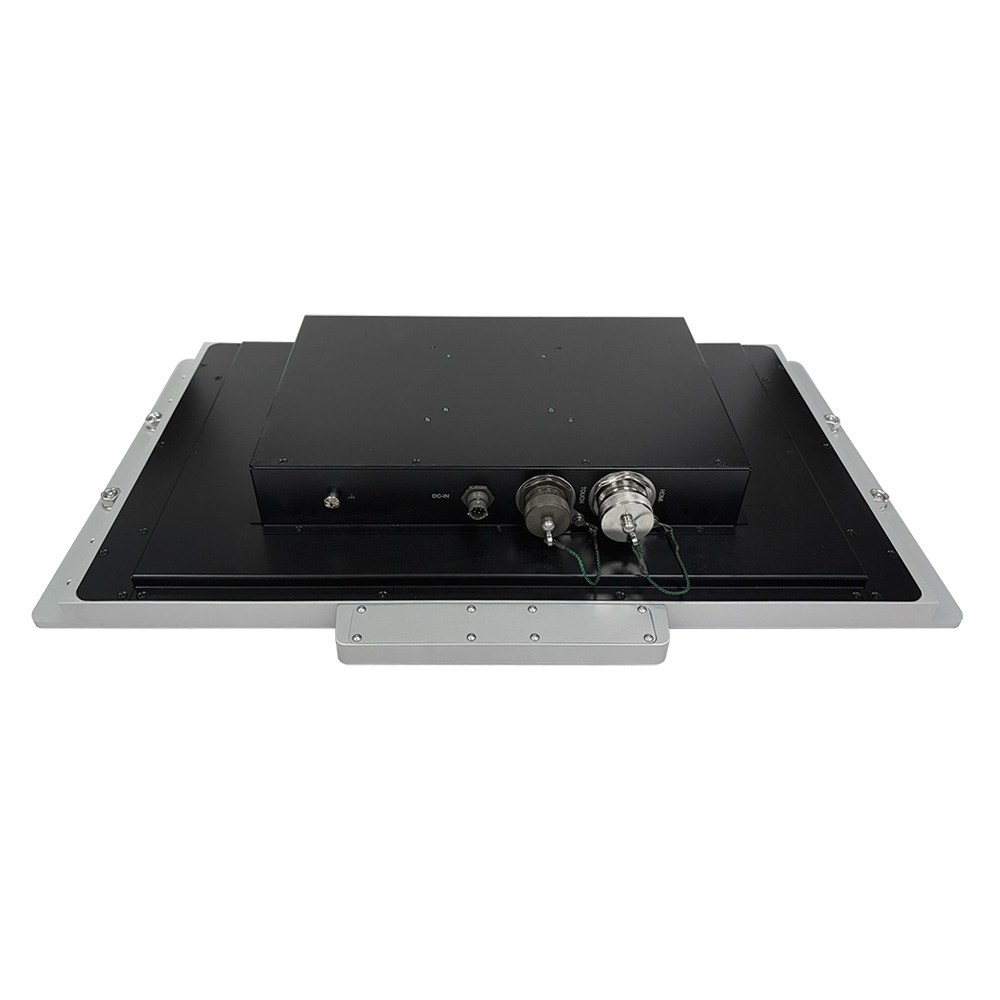

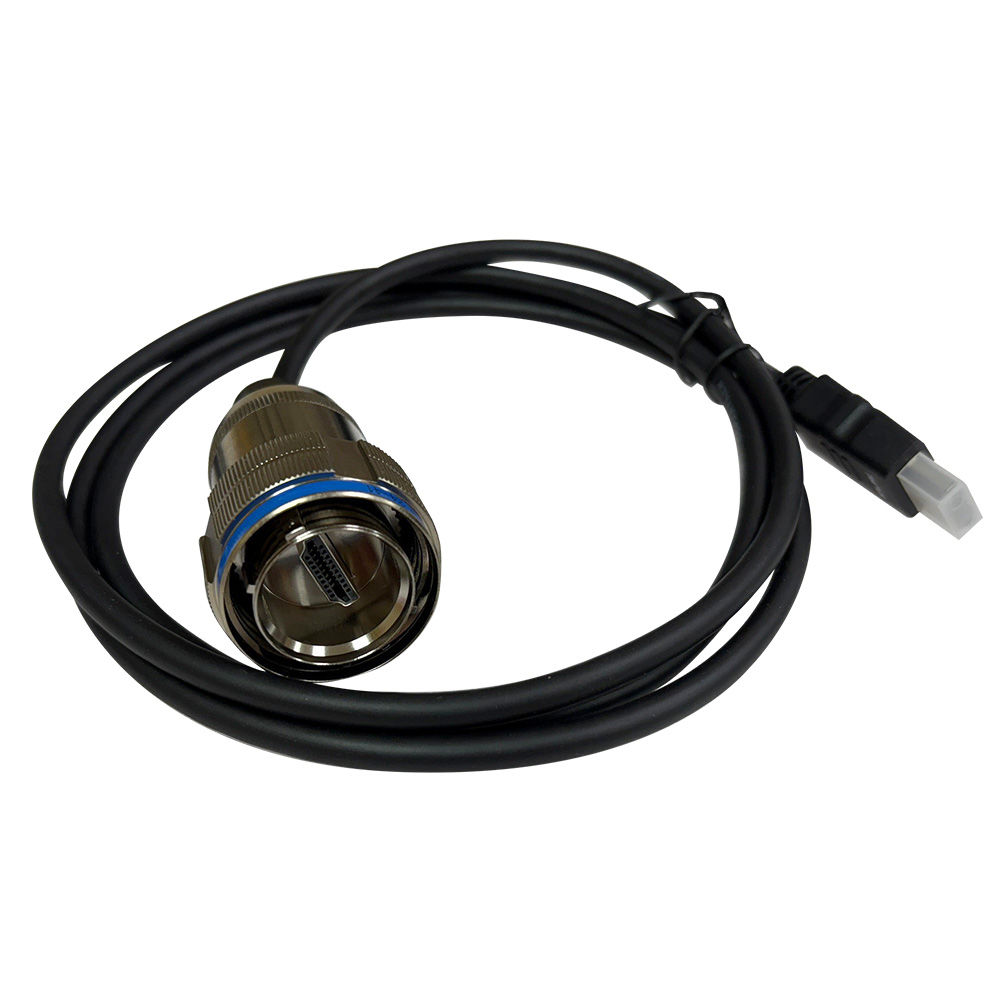

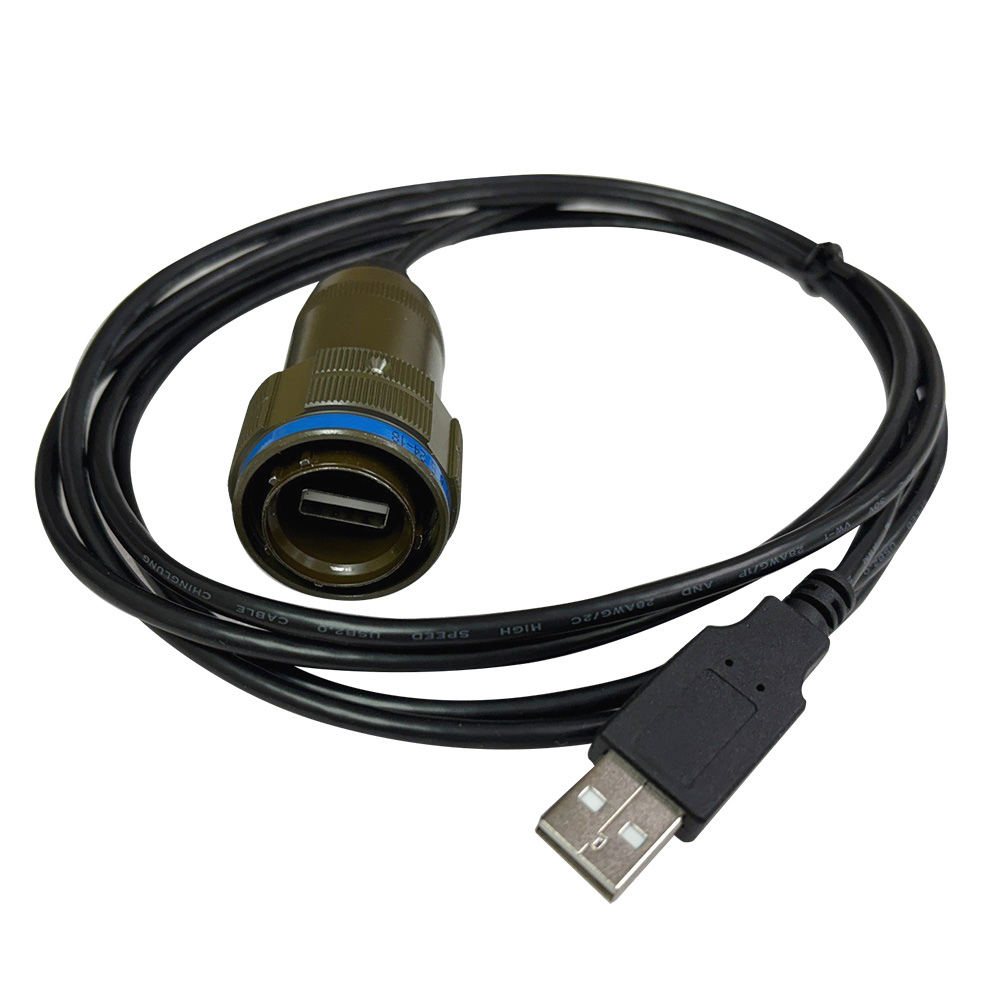

- Robust metal circular connectors (MIL-DTL series) - HDMI, USB (touch) and DC power via vibration-resistant, military-specific connectors.
- DC 9-36V input via MS3114E8 circular connector - Includes 90W power supply for mobile operation and vehicle integration.
- Complies with MIL-STD-461G & MIL-STD-1275E - Meets the highest EMC and power supply safety requirements.
- Operating temperature range from -40 °C to +70 °C - For uncompromising use under extreme environmental conditions.
The TDM-P156WH5TAGF-RND2 is the perfect solution for military control systems, vehicle applications, safety-critical environments or industrial control centers - wherever reliability, light intensity and durability are crucial.
Technical details
| Background light: | 1500 Nits |
|---|---|
| Certificates: | CE, FCC Class A, MIL-STD-810H, Method 514.8, Procedure I, MIL-STD-810H, Method 516.8, Procedure I, MIL-STD-1275E, MILSTD-461G |
| Contrast Ratio: | 800:1 |
| DC Input: | MS3114E8 Connector |
| Display size: | 15,6" |
| Housing: | Aluminum, Stainless steel |
| Humidity: | 10% ~ 90% (non-condensing) |
| Mounting: | VESA, Wall-mount |
| Operating Temperature: | -40°C ~ 70°C |
| Power supply: | 24V DC |
| Screen resolution: | 1920 x 1080 |
| Surface: | Anti-Glare |
| Touch: | Projected Capacitive Touch |
| USB Ports: | 1x |
| Video: | HDMI |
