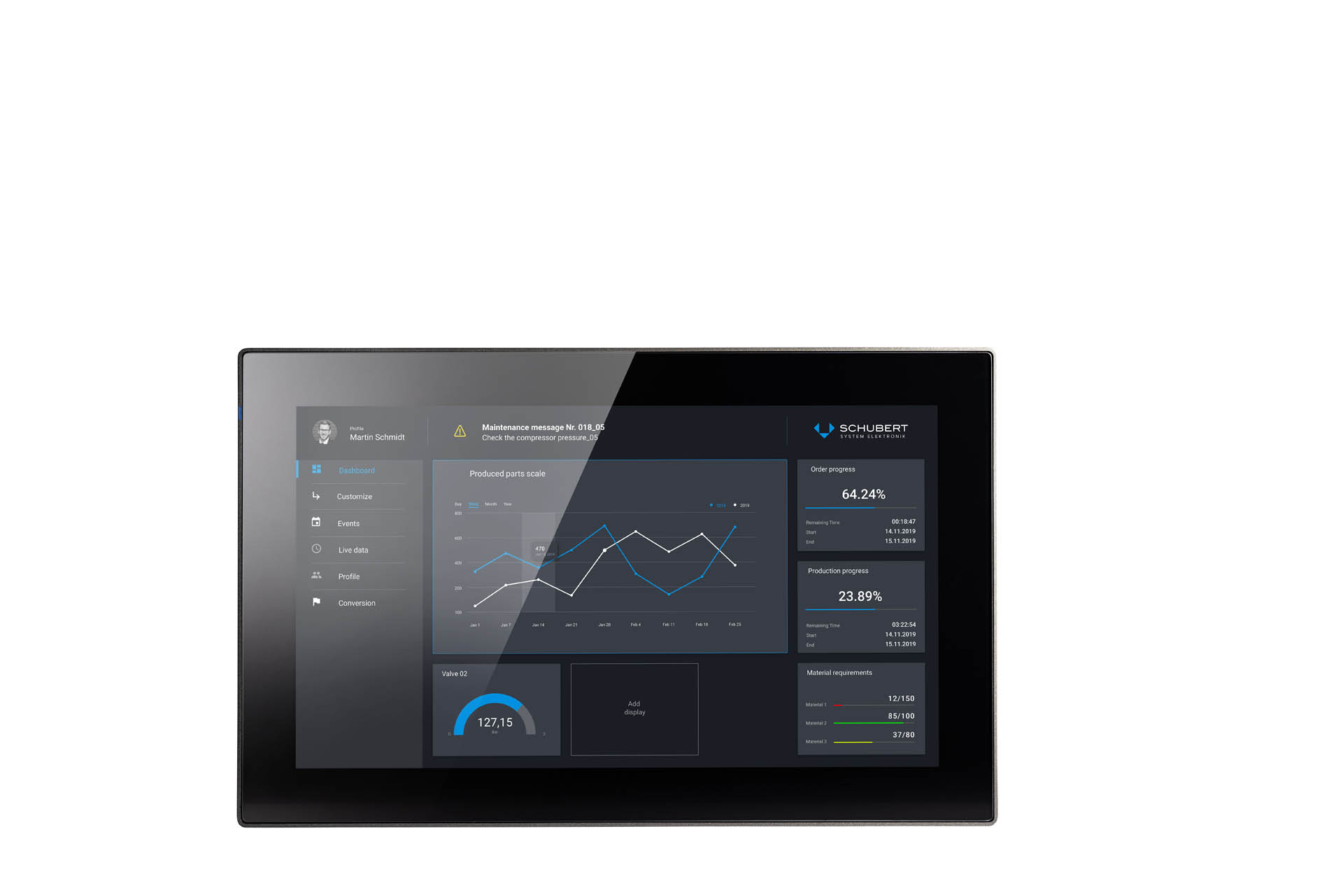

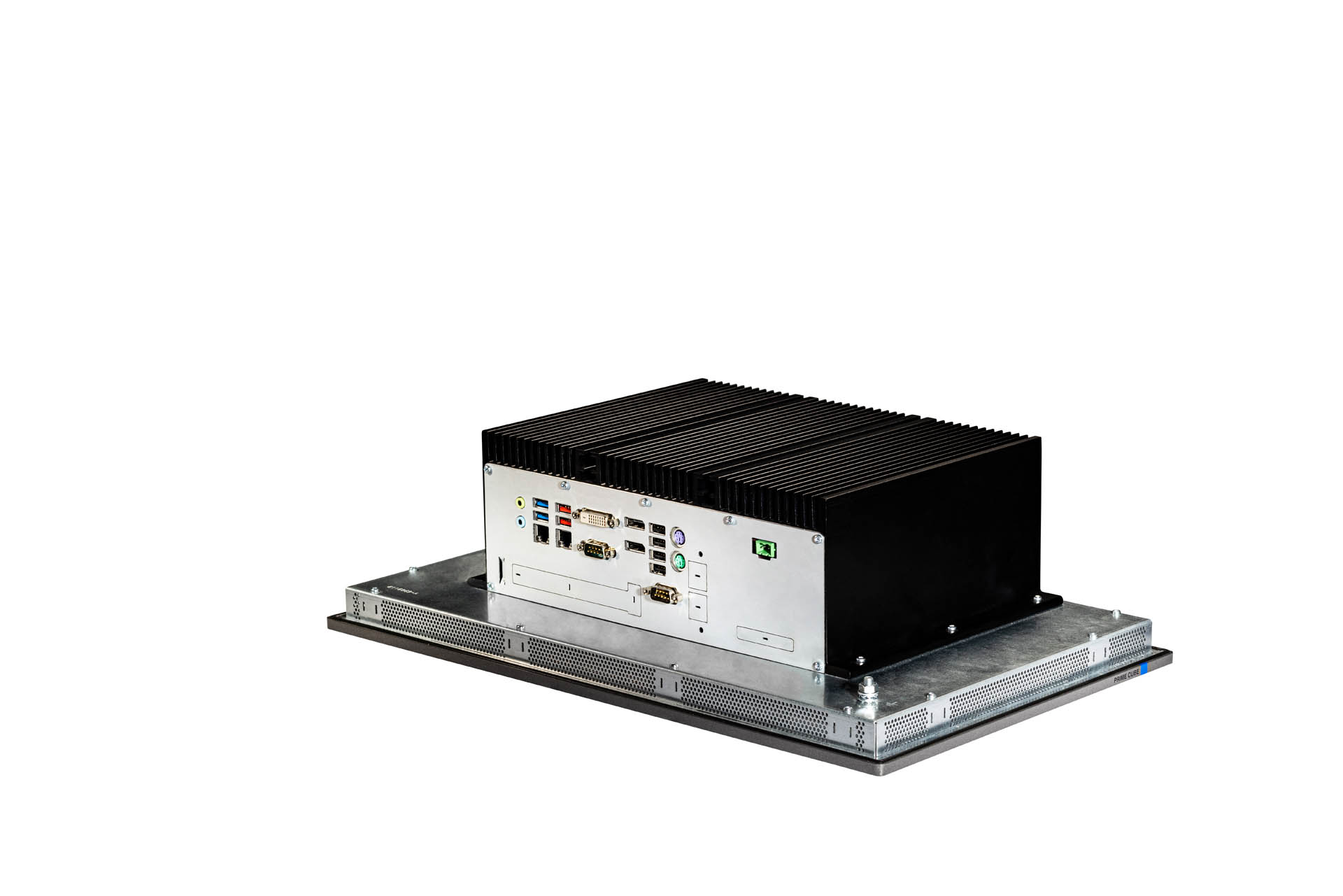

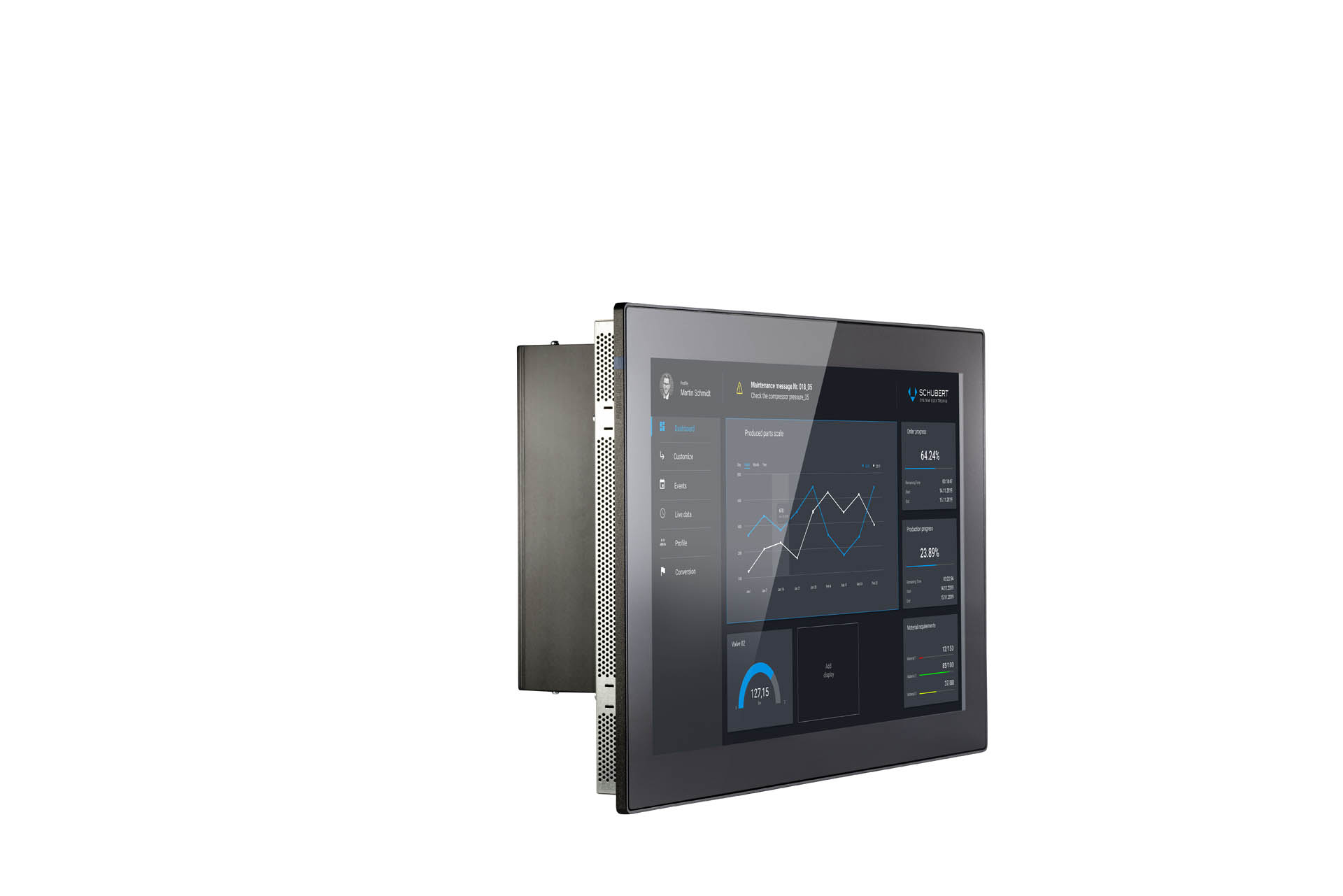

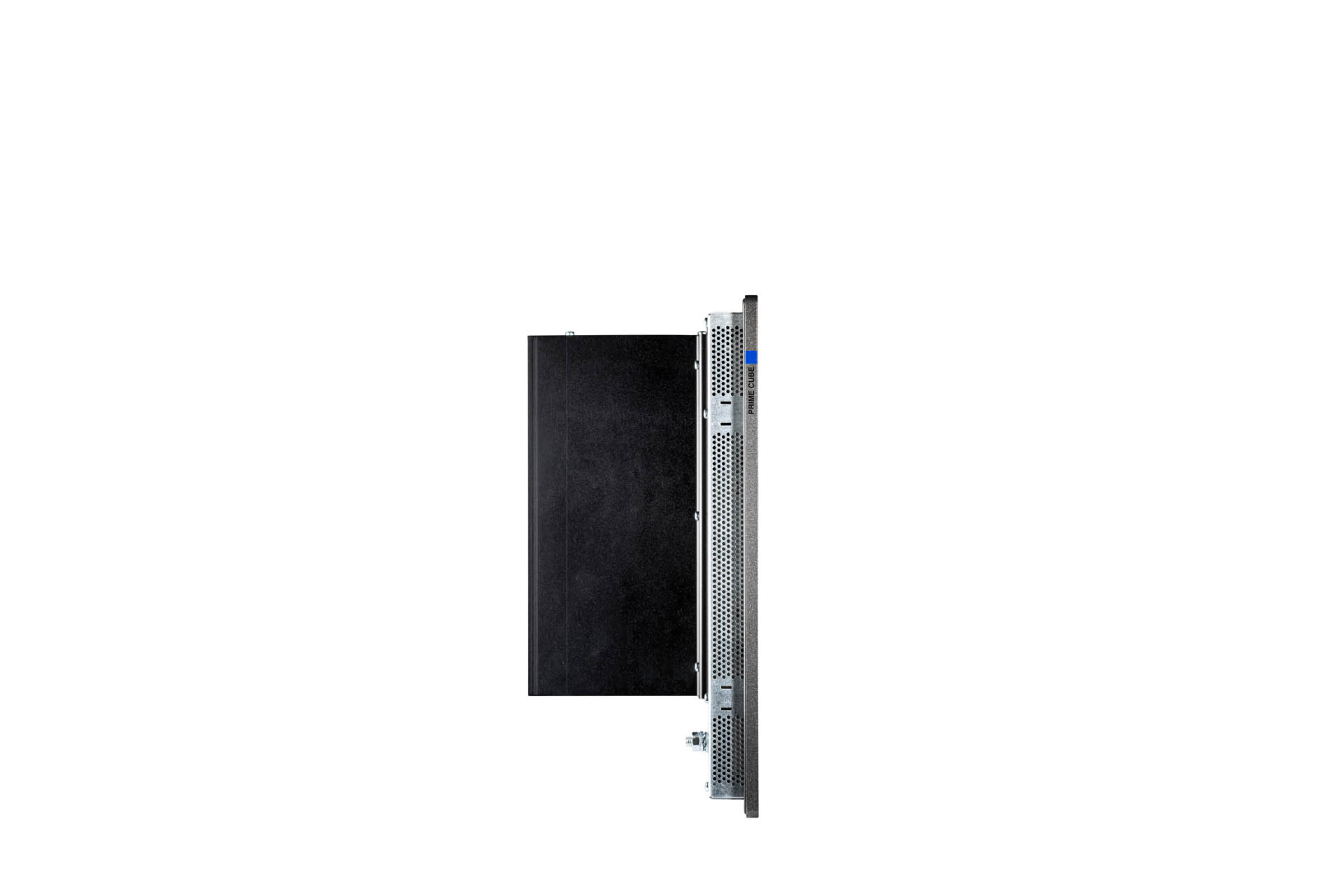

Prime Panel Performance 21,5" Einbau
Robust Capacitive 21.5" IP65 Panel PC with Intel® Core CPU for Built-In or Mounted Applications
Features
- Intel® 9th/8th Gen Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2666 RAM
- 1x 2.5" SSD and 1x M.2 NVME
- Front-side protection class IP65
- 21.5" 1920 x 1080p capacitive touch display
- Fanless modern design Made in Germany
- Available as built-in or mounting version
- With various certifications
The Prime Panel Performance 21.5" is a state-of-the-art, high-performance industrial panel PC designed for demanding industrial applications. Featuring a 21.5-inch multitouch display with Full HD resolution, it delivers excellent image quality and intuitive operation.
With its IP65-protected front design, the Prime Panel Performance is well-protected against dust and water, making it ideal for 24/7 continuous operation in harsh environments. Its fanless design ensures silent and maintenance-free operation, while powerful processor options provide high computing performance.
Thanks to versatile connectivity options, including DisplayPort, HDMI, USB, and serial interfaces, this panel PC integrates easily into existing systems. Support for various power input options allows flexible deployment in different industrial environments.
Whether used in automation technology, machine control, or process monitoring, the Prime Panel Performance 21.5" stands out with reliability, durability, and top-tier performance.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, PCIe x16 Gen3 Slot |
|---|---|
| Audio: | Microphone input, Speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron® |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | EN 55032 Klasse A, EN 60068-2-6, EN 60068-2-27, EN 61000-6-2, UL 61010-2-201 |
| DC Input: | 3-pin pluggable terminal block |
| Display size: | 21,5" |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| IP protection class: | IP65 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | Installation |
| Operating Temperature: | -10°C ~ 50°C |
| Operating system: | Linux, Windows 10 IoT |
| Power supply: | 18 ~ 36V DC |
| Screen resolution: | 1920 x 1080 |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| Touch: | Projected Capacitive Touch |
| USB: | USB 2.0, USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort |
