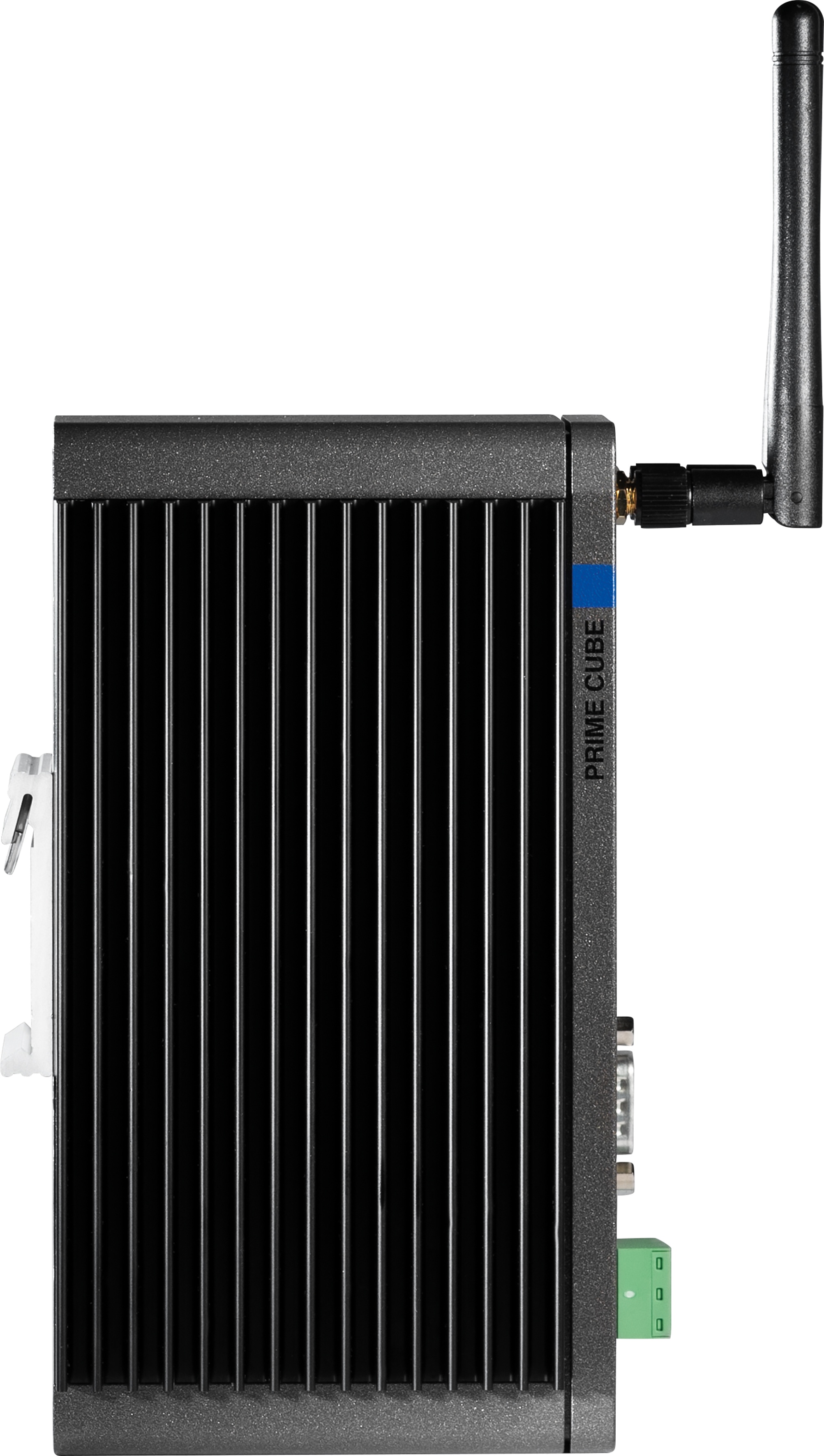

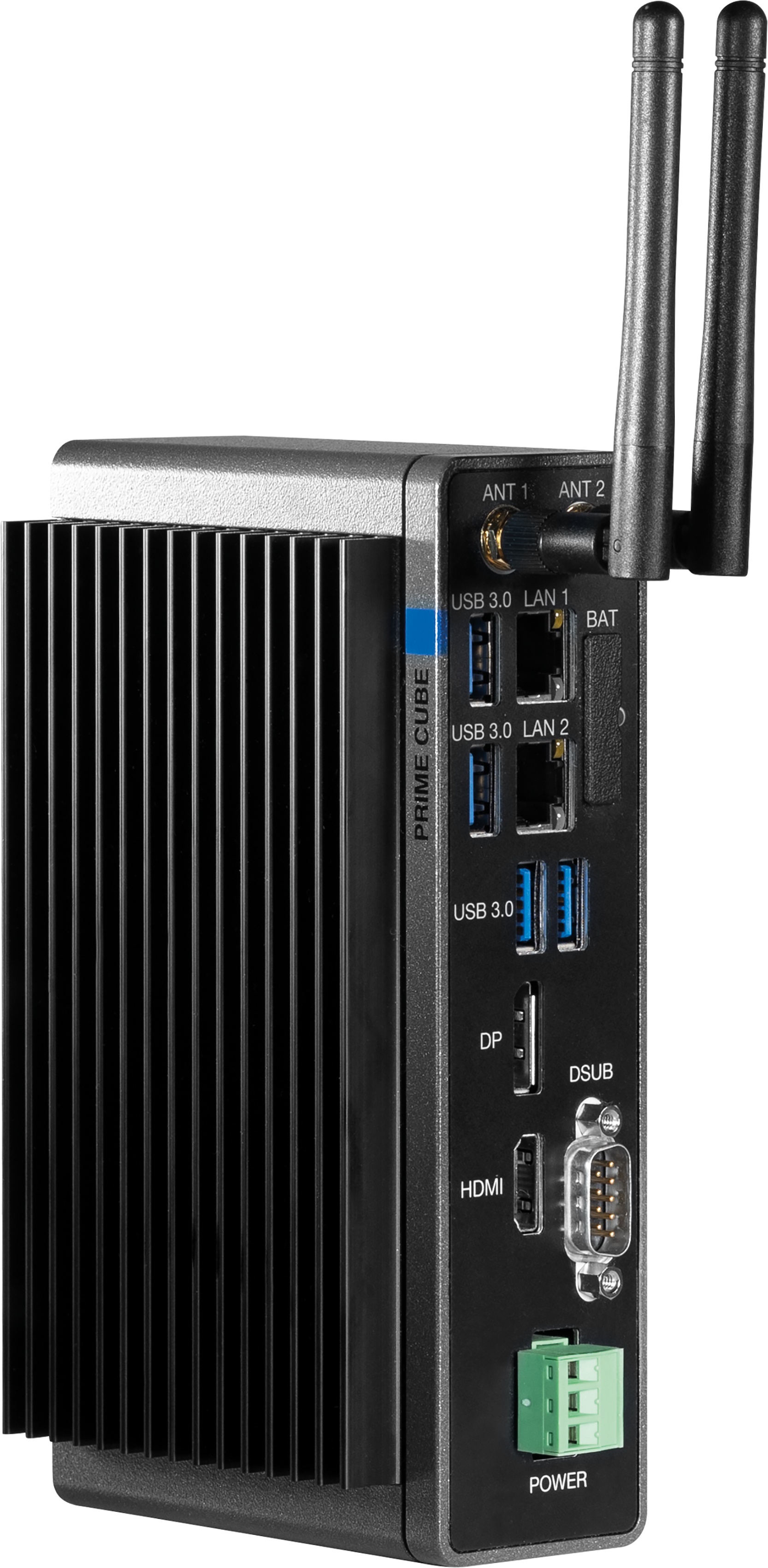

Prime Box Pico
Ultra kompakter Industrie PC mit Intel® Atom CPU, bis zu 8GB RAM und mSATA SSD
Features
- Intel® Atom x7-E3950, Quad Core, 1.6 GHz
- Up to 8 GB DDR3L, 1600 MHz
- 1x mSATA 64 GB - 512 GB, flash storage

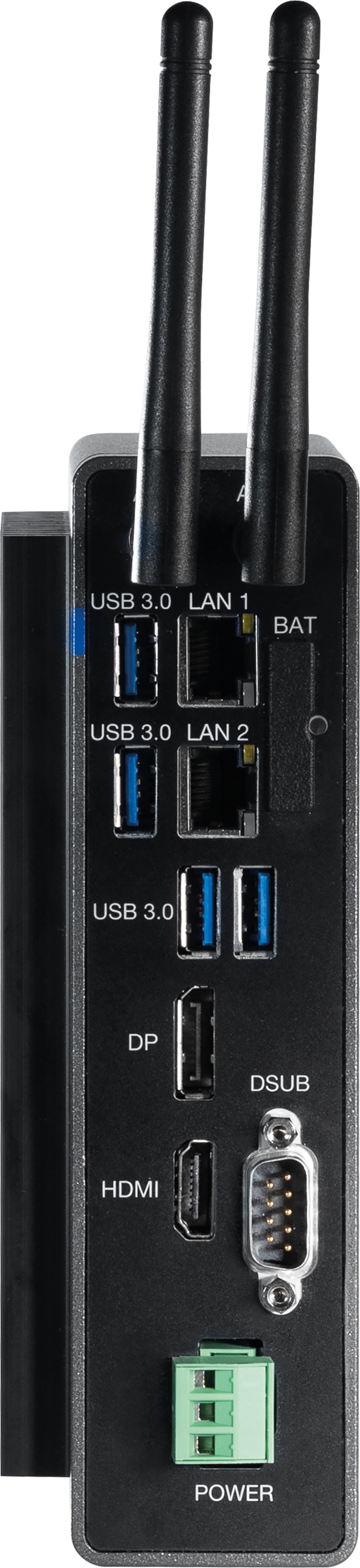

- 2x GbE LAN, 4x USB 3.0, DisplayPort, HDMI
- 1x RS232/422/485
- mSATA and mPCIe interface for expansions
- Suitable for wall or DIN-rail mounting
Product information "Prime Box Pico"
The Prime Box Pico from Schubert System Elektronik is an industrial box PC made in Germany for demanding tasks in limited spaces. With its modular design, it offers maximum flexibility and a wide range of ports for extensive connectivity. The high-quality construction ensures reliable and robust, fanless operation in industrial environments, even for 24/7 use. Equipped with an Intel Atom x7-E3950 processor and up to 8 GB of DDR3L memory, as well as an mSATA storage card with up to 512GB, it delivers maximum performance in a compact form. All these factors make the Prime Box Pico the optimal industrial PC Made in Germany for all conceivable applications where extremely compact dimensions are beneficial. Contact us for a customized offer tailored to your needs!
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port |
|---|---|
| CPU: | Intel® Atom™ E3950 |
| Certificates: | EN 55024, EN 55032 Klasse A, EN 60068-2-6, EN 60068-2-27, UL 61010-2-201 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB |
| Mounting: | DIN-rail mount, Wall-mount |
| Operating Temperature: | -10°C ~ 50°C |
| Operating system: | Linux, Windows 10 IoT |
| Power supply: | 12 ~ 32V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | mSATA SSD |
| USB: | USB 3.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort, HDMI |
