Entdecken Sie die vielseitigen Elgens Panel-PC Barebones – Maßgeschneiderte Lösungen für Ihre Industrieanwendungen

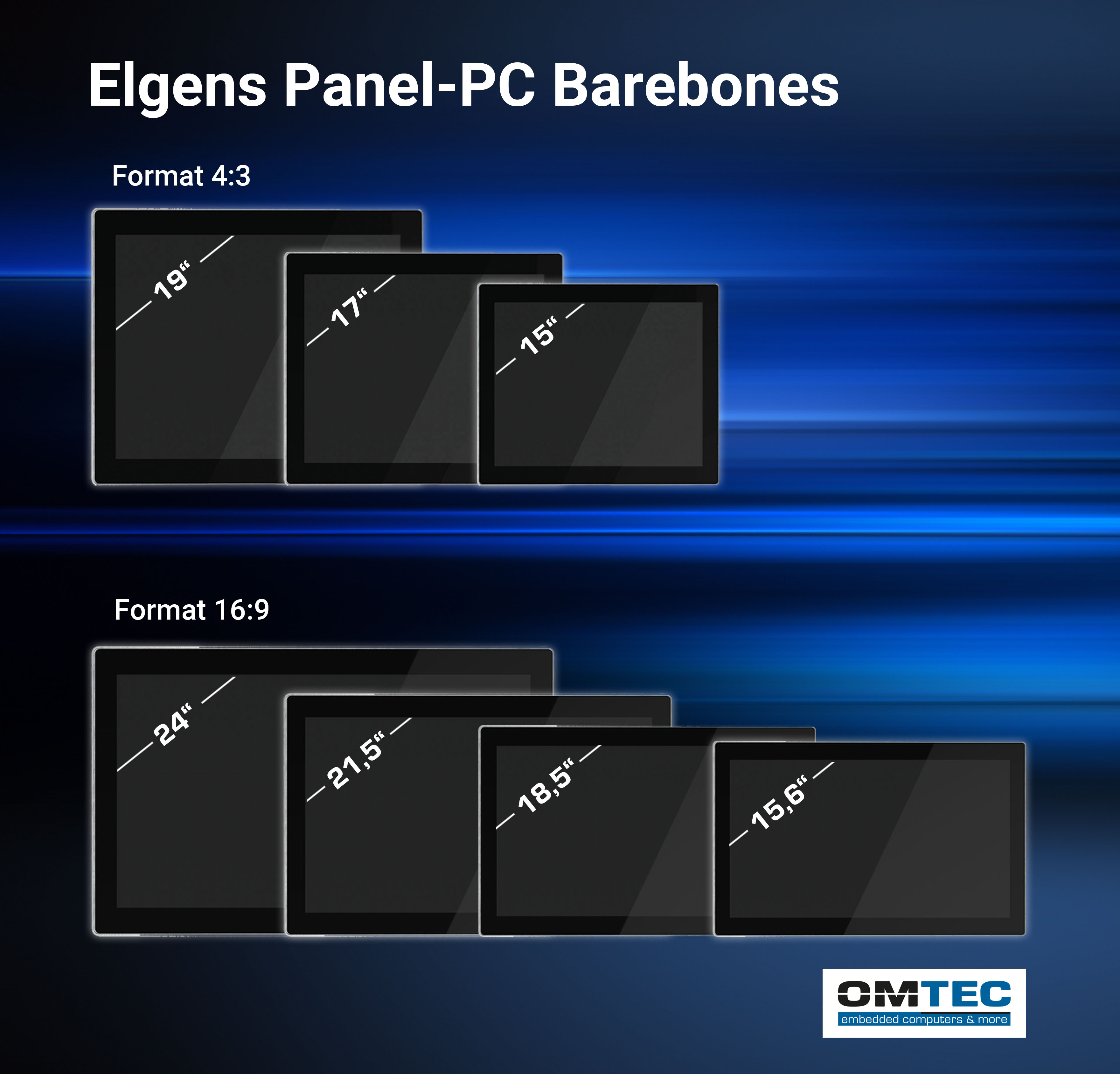

Discover the Versatile Elgens Panel-PC Barebones – Tailored Solutions for Your Industrial Applications

Our new Elgens Panel-PC Barebones series LPC-PXXXWAG-2AxMT/H offers the flexibility you need for your specific requirements in industrial environments. Whether 15" or 24" – with various screen sizes, these barebones are perfectly adaptable to your needs. Build your custom Panel-PC with powerful components and benefit from a robust, reliable platform designed specifically for demanding industrial applications.

Main Features:

  • Modular CPU Support: Choose your preferred Intel CPU from the 12th, 13th, or 14th generation with a power consumption of 35W or 65W. This flexibility allows you to find the perfect balance between performance and energy efficiency for your application.

  • Customizable Configuration: As a barebone system, you receive a high-quality Panel-PC chassis with an integrated touchscreen and motherboard, on which you can install your own CPU, RAM, and storage. This gives you the freedom to tailor your hardware precisely to your needs.

  • Rugged Design for Industry: The ELGENS Panel-PCs are specifically designed for use in demanding industrial environments. With a durable chassis and user-friendly design, they are ideal for integration into production lines, control systems, and other industrial applications.

  • Future-Proof and Scalable: With support for the latest Intel processors, you can be confident that your system is ready for future tasks. You have the option to easily upgrade your hardware and adapt to new requirements.

Your Benefits at a Glance:

  • Maximum Flexibility in choosing and customizing components
  • High Performance through support for the latest Intel CPUs
  • Industrial-Grade Durability for demanding operating conditions
  • Cost-Efficiency thanks to a custom system that precisely meets your needs

Choose the ELGENS Barebone Panel-PCs and rely on a system that gives you all the freedom without compromising on quality and performance.

Technische Details

Processor Intel® Gen. 14th/13th/12th Core i CPU by LGA1700, up to 65W
System Memory 2 x DDR4 SO-DIMM, up to 64GB
External I/O Port:
  • 2 x USB 3.2 Gen2
  • 2 x 2.5 Gigabit LAN (Intel® I225M/I225V)
  • 2 x DP 1.4a++
  • 1 x HDMI 2.0b
  • 2 x Audio Jack (Mic-in & Line-out)
  • 1 x 3-Pin Terminal Block for Power Input
  • 1 x Power Button
Storage
  • 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD
  • 2 x External 2.5″ Storage Bay
Expansion
  • 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
  • 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
Operating System
  • Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
  • Windows 11 (64-bit, Pre-test)
  • ‧ Linux Yocto Project (64-bit, by request)
Contrast Ratio 5000 : 1
Luminance (cd/m2) 300nits
View Angle 89 / 89 / 89 / 89
Power Input DC 12~28V Power Input with DC 24V Power Adapter
Operating Temp. -20~60°C IEC-60068-2-1/2/14 (-30~70 °C by Heatpipe)
Storage Temp. -20~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification
Vibration & Shock 1.5 Grms @10~500Hz, IEC-60068-2-64
Mounting VESA Mount 75 x 75 / 100 x 100 by M4 Screw Hole, Panel Mount

Optionale Erweiterungen

H = High Brightness 1000 nits LED backlight
OB = Optical Bonding
B = Glass withtout touch
AG = Anti-Glare
AR = Anti-Reflection
V = Vandal Proof Glass (By Project)

CPU Support List

12th i3-12100TE / i5-12500TE / i7-12700TE 35W
13th i3-13100TE / i5-13500TE / i7-13700TE 35W
14th i3-14100TE / i5-14500TE / i7-14700TE 35W
12th i3-12100 / i5-12500 / i7-12700 65W
13th i3-13100 / i5-13500 / i7-13700 65W
14th i3-14100 / i5-14500 / i7-14700 65W
