Features
- AMD Ryzen™ Embedded V1807B quad-core CPU
- Up to 32 GB DDR4-3200 RAM
- 4x USB 3.0, 4x PoE+ Gigabit Ethernet ports, DisplayPort and VGA
- 1x M.2 2280 M-Key slot, 1x 2.5" SSD
- Operation in a wide temperature range from -25°C to 70°C
- Very compact design

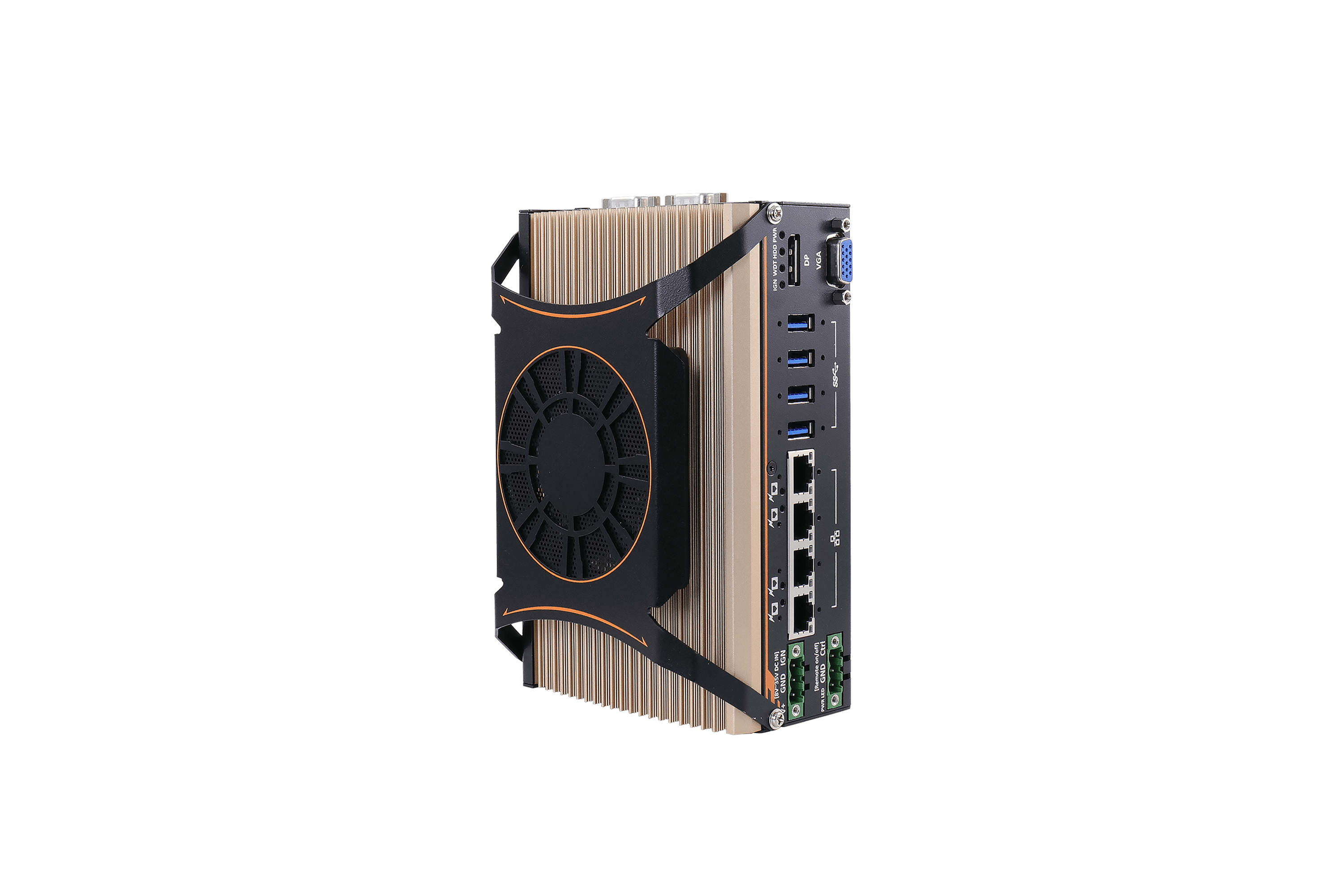

POC-546 is the next generation ultra-compact embedded controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1807B 4-core/ 8-thread processor, it delivers up to 3x times the CPU performance over previous POC series. GPU performance wise, it delivers an unheard of 3.6 TFLOPS in FP16 for an ultra-compact form factor embedded controller. Another amazing feat is that it manages to incorporate an M.2 2280 NVMe SSD (PCIe Gen3 x2) and 1x 2.5" SSD.
POC-546 continues the POC series ingenious DIN-rail mounting mechanical design and offers plenty of front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5" x 6.9" x 4.6"), it has 4x PoE+ ports, 4x USB 3.1 Gen1 ports and 4x COM ports. And best of all, all data ports come with screw-lock mechanism so you can be rest assured that cables are always secured.
The arrival of POC-546 signifies a new breed of ultra-compact embedded controller; one with better I/O design, extraordinary ruggedness and significantly more CPU/ GPU oomph for versatile applications.
Technical details

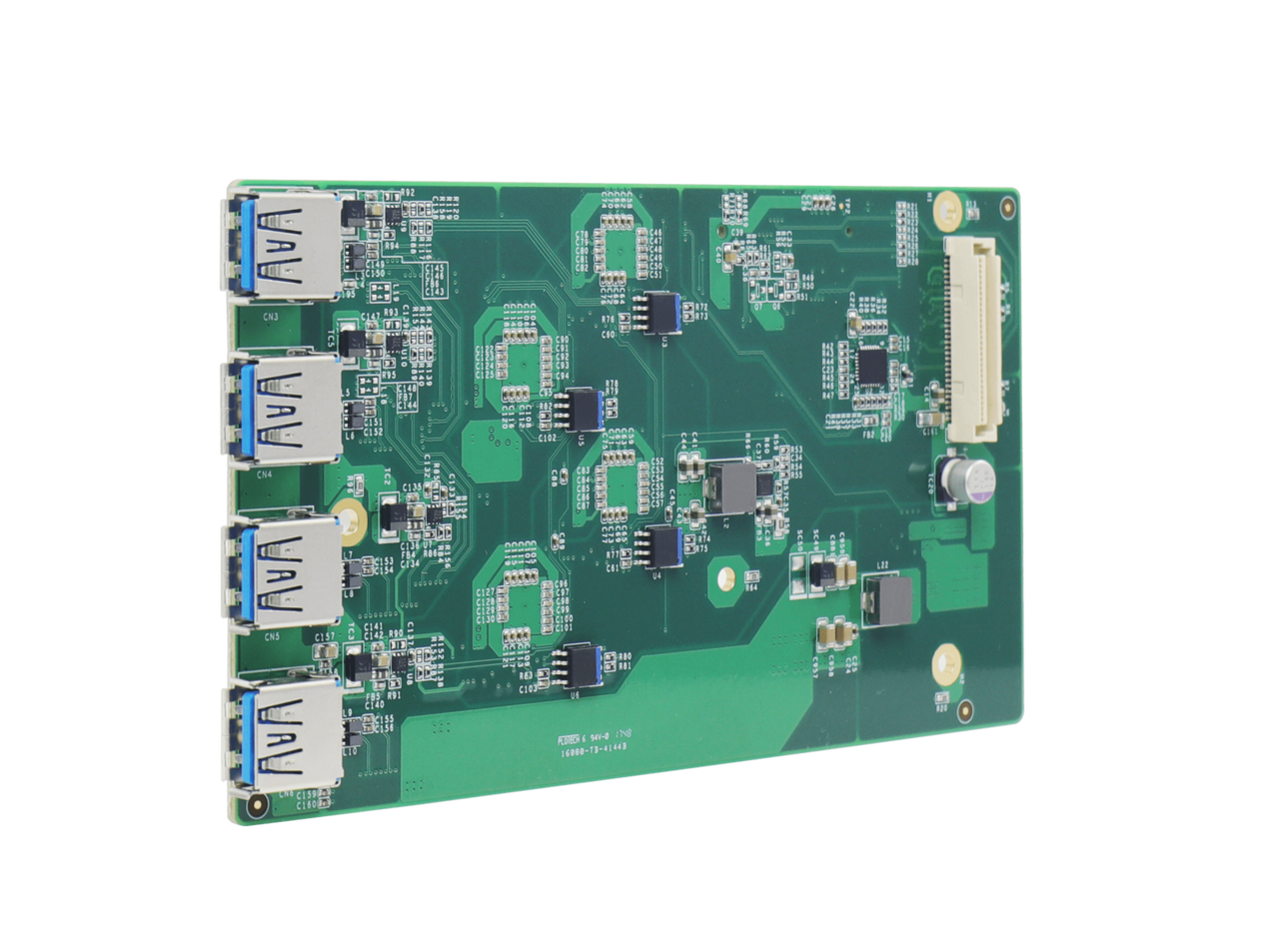

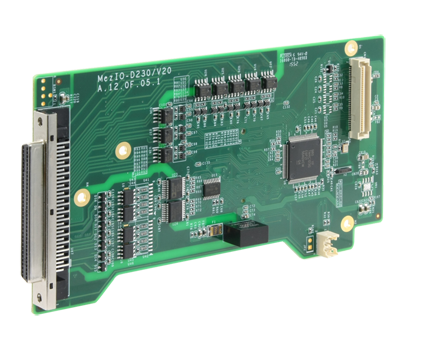

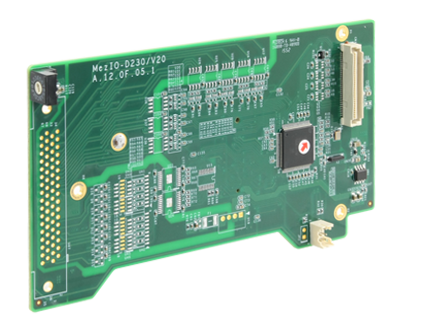

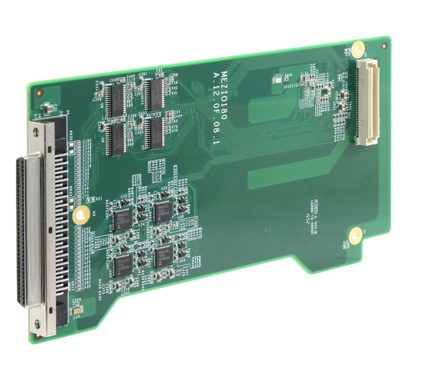

Add-ons: | Full-size Mini PCIe, M.2 2280 M key, MezIO® Port, SIM Socket |
---|---|
Audio: | 1x 3,5mm jack mic in & speaker out |
CPU: | AMD Ryzen™ V1807B |
Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, EN62368-1, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
DC Input: | 3-pin pluggable terminal block |
Ethernet: | Gigabit |
Ethernet Ports: | 1x, 2x, 3x |
Humidity: | 10% ~ 90% (non-condensing) |
Internal Graphics: | Vega GPU with 11 compute units |
Memory: | 1x DDR4 Slot |
Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
Mounting: | DIN-rail mount, Wall-mount (optional) |
Operating Temperature: | -25°C ~ 70°C |
Operating system: | Windows 10, Windows 10 IoT |
PoE-Standard: | IEEE 802.3at (PoE+) |
Power supply: | 8 ~ 35V DC |
Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |

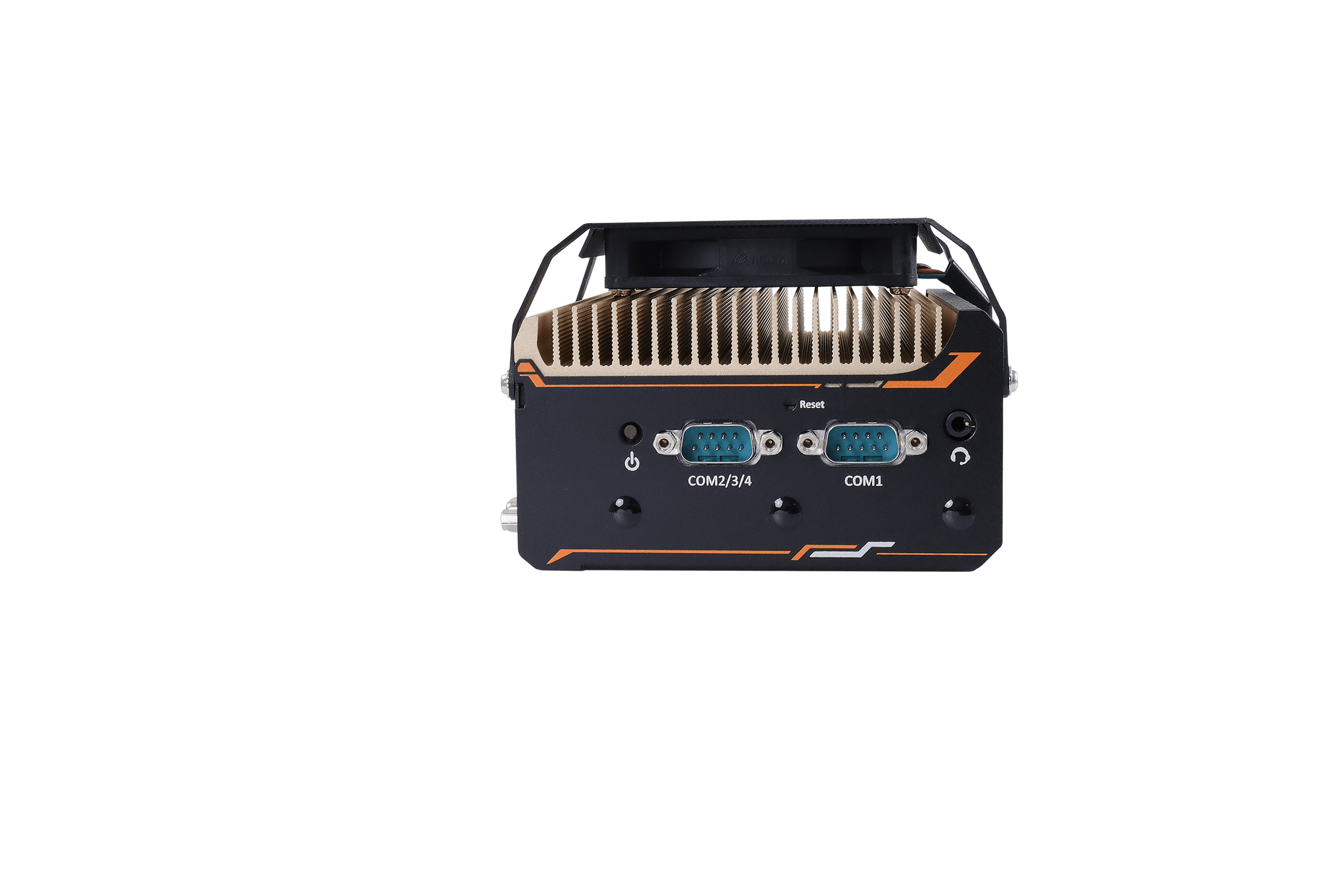

Serial Ports: | RS-232, RS-422, RS-485 |
Storage: | 2,5" SSD, M.2 2280 NVME |
TPM: | TPM 2.0 |
USB: | USB 3.0 |
USB Ports: | 1x, 2x, 3x, 4x |
Video: | DisplayPort, VGA |
