POC-40
Extrem kompakter Embedded-Computer mit Intel® Elkhart Lake Atom® CPU
Features
- Intel® Elkhart Lake Atom® x6211E Processor
- Up to 32 GB DDR4-3200 RAM

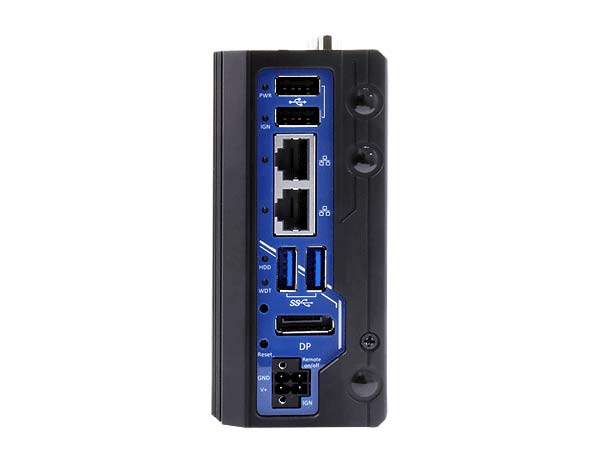

- 2x USB 3.1, 2x USB 2.0, 2x Gigabit Ethernet Ports, 1x DisplayPort
- 1x M.2 2280 M-Key Slot
- Fanless operation with wide temperature range, -25°C ~ 70°C
- Extremely compact design
The POC-40 is an ultra-compact fanless controller, measuring just 52 x 89 x 112 mm. It is equipped with an Elkhart Lake Atom® processor and designed for applications in tight spaces, such as operational data acquisition, edge computing in harsh environments, and as a mobile gateway.
It uses the new Elkhart Lake Atom® x6211E dual-core processor with 10 nm technology, offering a 1.8 times performance improvement compared to the previous generation platform. Compared to the POC-200 series, the POC-40 offers a 1.9 times performance improvement at half the size. The controller features various generic I/O functions, such as two GigE, four USB 3.1 (Gen1)/USB 2.0 ports, and optionally isolated DIOs for data exchange and industrial control. Additionally, with its M.2 B-Key and E-Key slots, the POC-40 is capable of supporting the full range of 5G and Wi-Fi 6 wireless connections, enabling high field coverage and real-time data transmissions even for mobile gateway applications in the industry.
With its footprint equivalent to a PICO-ITX motherboard, the Neousys POC-40 is perfect as an ultra-compact powerhouse for projects with high-performance requirements. It is ideal for edge computing and gateway applications, has low power consumption, and, as a lightweight fanless controller, allows operation over a wide temperature range even in harsh environments.
Technical details
| Add-ons: | M.2 2230 E key, M.2 2280 M key, M.2 3052 B key, SIM Socket |
|---|---|
| CPU: | Intel® Atom® x6211E |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| DC Input: | 4-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |

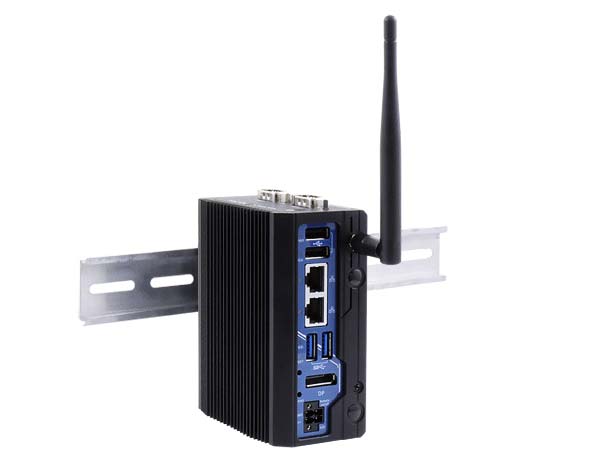

| Mounting: | DIN-rail mount, Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 70°C |
| Operating system: | Windows 10, Windows 10 IoT |
| Power supply: | 12 ~ 20V DC |
| Remote: | 4-pin terminal block for remote control |

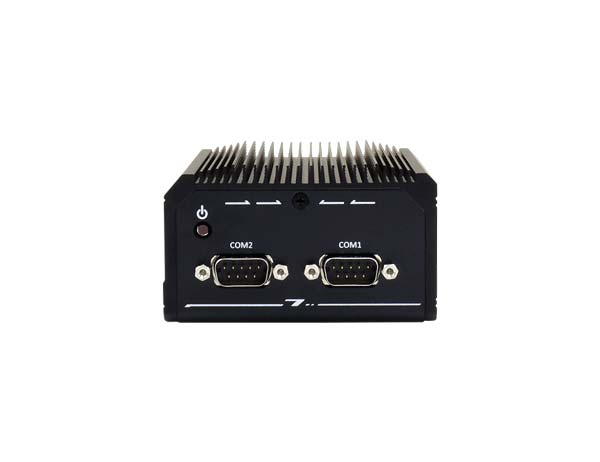

| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | M.2 2280 NVME |
| TPM: | fTPM 2.0 |
| USB: | USB 2.0, USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DisplayPort |
