PB-2500J

Industrial-Grade Intelligent Supercapacitor Backup Power Module

Features

  • Maximized backup power supply in the event of an unplanned power outage
  • Energy capacity of 2,500 watt-seconds
  • Monitoring of energy consumption and calculation of the operating time needed for safe system shutdown
  • Lifetime of up to 10 years or 500,000 charge/discharge cycles
  • User-configurable operating parameters
Product information "PB-2500J"

The Neousys PB-2500J series is an innovative backup power solution for demanding industrial applications. This module utilizes supercapacitor technology and remains operational even in the harshest environments, with temperatures ranging from -25 °C to 65 °C, and boasts an extremely long lifespan. Compared to traditional battery-based UPS systems, the PB-2500J series offers consistently excellent reliability in extreme ambient temperatures, without the drawback of declining battery performance over time.

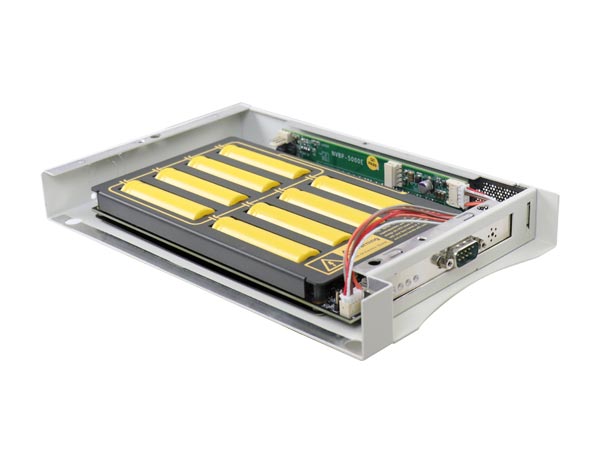

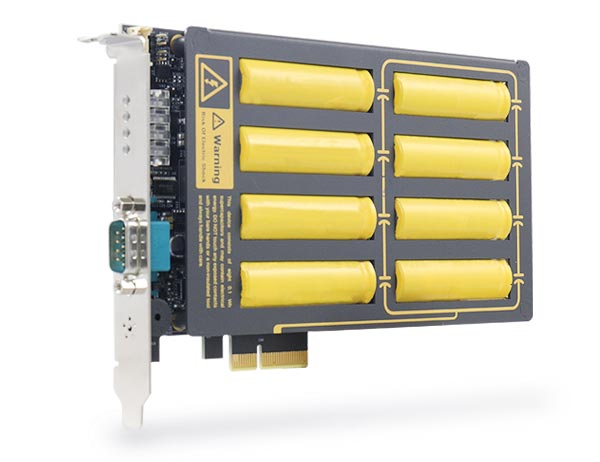

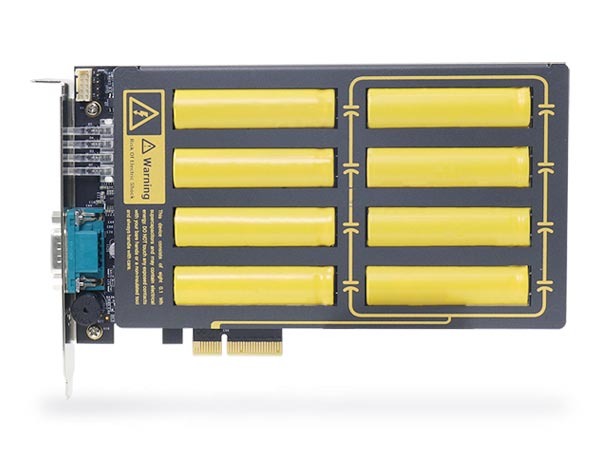

The PB-2500J series consists of eight 100F supercapacitors that can provide 2,500 watt-seconds of stored energy to power your computer in the event of a power failure. Depending on the energy requirements of your system, the backup duration can range from several seconds to several minutes. What truly sets the PB-2500J apart is its patented CAP sensor technology. This onboard processor continuously monitors energy consumption, allowing it to adapt to the system's behavior. In the event of a power outage, the module maximizes system uptime by accurately determining when the system should be shut down to avoid data loss.

For embedded controllers in the industry, stability and the prevention of data loss during power outages are two essential requirements. The Neousys PB-2500J series sets new standards for these needs, offering an unprecedented level of reliability. With the PB-2500J series, issues caused by unexpected power outages and unstable power lines are a thing of the past!

Technical details

Energy capacity: 2500 watt seconds
Downloads
