Nuvo-9531-PoE-IGN
Compact fanless industrial PC with Intel® 13th/12th Gen CPU, 4x 2.5GbE PoE+ ports, 4x USB 3.2, and ignition control.
Features
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2, 2x USB 2.0, VGA, DisplayPort
- 4x 2.5G PoE+ Ethernet ports, 2x serial interfaces
- 1x 2.5" SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless, rugged operation at -25°C to 60°C
- MIL-STD-810H as well as EN 55032 & EN 55035 certified
- Ignition control
The Nuvo-9531-PoE-IGN is Neousys' most compact fanless embedded computer, built on the Intel® 13th/12th Gen Alder Lake platform. With dimensions of just 212 x 165 x 63 mm, it fits effortlessly into tight spaces such as robotic arms or autonomous mobile robot applications. Despite its compact size, the Nuvo-9531-PoE-IGN delivers uncompromised performance. Powered by Intel 13th/12th Gen processors based on 7nm technology, it offers up to 24 cores and 32 threads, delivering up to 2x the performance of the previous generation. This Edge PC is the perfect solution for demanding industrial tasks.
Main Features of the Edge PC Nuvo-9531-PoE-IGN

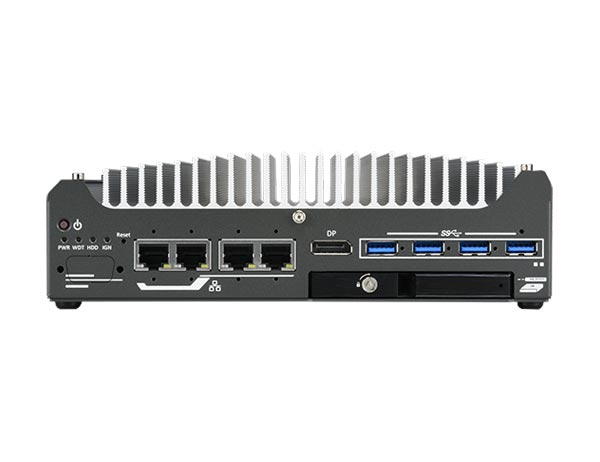

- Versatile I/O Interfaces: The Nuvo-9531-PoE-IGN features four IEEE 802.3at PoE+ GbE ports and four USB 3.2 Gen1 ports, enabling seamless connectivity for multiple cameras and sensors.
- High-Performance Storage Options: Equipped with an M.2 Gen4 x4 NVMe slot, the system supports the latest NVMe SSDs with read/write speeds of up to 7000 MB/s. A hot-swappable drive bay allows for storage replacement without shutting down the system.
- Wireless Connectivity: Two mPCIe slots and one M.2 E-key slot support the integration of Wi-Fi or 4G/5G modules for wireless communication solutions.
- Extended Functionality: With 8-channel DIO, two COM ports, two display outputs, and integrated ignition control, the Nuvo-9531-PoE-IGN is designed for diverse industrial applications.
- Compact and Robust Design: The compact, fanless design makes the Nuvo-9531-PoE-IGN an excellent choice for use in demanding and space-constrained environments.
Why the Nuvo-9531-PoE-IGN is the Ideal Edge PC
The Nuvo-9531-PoE-IGN combines exceptional computing performance with versatile I/O capabilities and an extremely compact design. These features make it the ideal solution for a wide range of industrial applications, particularly in space-restricted environments.
Choose the Edge PC Nuvo-9531-PoE-IGN to execute your industrial projects with a reliable, high-performance, and space-saving system.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2230 E key, M.2 2280 M key |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
| Chipset: | Intel® H610E |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | 2.5G |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | DIN-rail mount (optional), Wall-mount (optional) |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 48V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB 2.0, USB 3.2 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Video: | DisplayPort, VGA |
