Features
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2, 2x USB 2.0, VGA, DisplayPort
- 4x 2.5G Ethernet ports, 2x serial interfaces
- 1x 2.5" SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless, rugged operation at -25°C ~ 60°C
- MIL-STD-810H as well as EN 55032 & EN 55035 certified

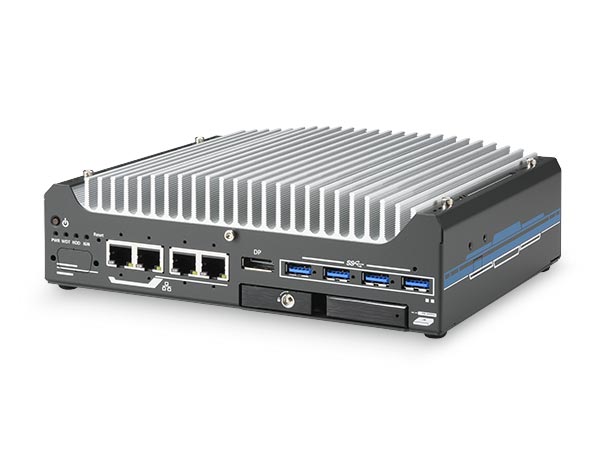

The Nuvo-9531 is Neousys' most compact fanless embedded computer, built on the Intel® 13th/12th Gen Alder Lake platform. With dimensions of just 212 x 165 x 63 mm, it is perfect for tight spaces, such as robotic arms or autonomous mobile robot applications. Despite its compact size, the Nuvo-9531 delivers uncompromised performance. Powered by Intel 13th/12th Gen processors based on 7nm technology, it offers up to 24 cores and 32 threads, delivering up to twice the performance of the previous generation. This makes the Nuvo-9531 a powerful Edge PC for diverse industrial applications.
Main Features of the Edge PC Nuvo-9531
- Advanced I/O Interfaces: The Nuvo-9531 features four GbE ports and four USB 3.2 Gen1 ports, enabling seamless integration of multiple cameras and sensors.
- High-Performance Storage Solutions: The system includes an M.2 Gen4 x4 NVMe slot that supports read and write speeds of up to 7000 MB/s. Additionally, a hot-swappable drive bay allows for storage replacement without shutting down the system.
- Wireless Connectivity: With two mPCIe slots and one M.2 E-key slot, the Nuvo-9531 supports the integration of Wi-Fi or 4G/5G modules to enable wireless communication.
- Versatile Applications: Equipped with 8-channel DIO, two COM ports, and two display outputs, the Nuvo-9531 is suitable for a wide range of industrial use cases.
- Compact and Rugged Design: The fanless chassis is not only space-saving but also designed for demanding environments.
Why the Nuvo-9531 is the Ideal Edge PC
The Nuvo-9531 combines impressive computing power, versatile connectivity options, and an extremely compact design. These features make it the ideal choice for demanding industrial applications, especially in space-constrained environments.
Choose the Edge PC Nuvo-9531 to optimize your industrial projects with a reliable, high-performance, and space-saving system.
Technical details
Add-ons: | Full-size Mini PCIe, M.2 2230 E key, M.2 2280 M key |
---|---|
Audio: | 1x 3,5mm jack mic in & speaker out |
CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
CPU Generation: | 12th generation, 13th generation |
CPU Socket: | LGA1700 |
Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I |
Chipset: | Intel® H610E |
DC Input: | 3-pin pluggable terminal block |
DIO: | 4-CH isolated DI und 4-CH isolated DO |
Ethernet: | 2.5G |
Ethernet Ports: | 1x, 2x, 3x, 4x |
Humidity: | 10% ~ 90% (non-condensing) |
Ignition control: | No |
Internal Graphics: | Intel® UHD Graphics 770 |
Memory: | 1x DDR4 Slot |
Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
Mounting: | DIN-rail mount (optional), Wall-mount (optional) |
Operating Temperature: | -25°C ~ 60°C |
Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
Power supply: | 8 ~ 48V DC |
Serial Ports: | RS-232, RS-422, RS-485 |
Storage: | 2,5" SSD, M.2 2280 NVME |
TPM: | dTPM 2.0 |
USB: | USB 2.0, USB 3.2 Gen 1 |
USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
Video: | DisplayPort, VGA |
