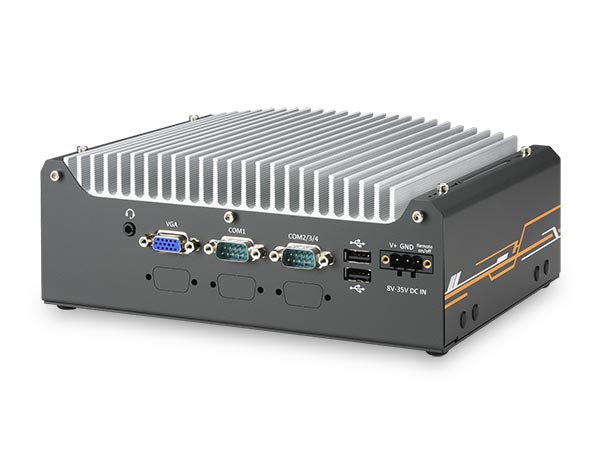

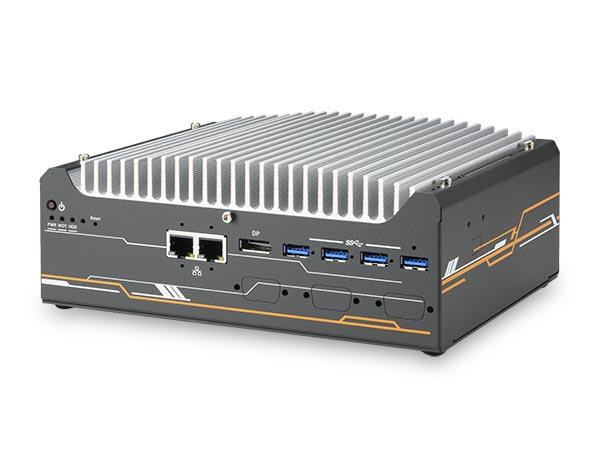

Nuvo-9505D

Kompakter Industrie PC mit Intel® 13./12. Gen Core™-CPU, 2.5GbE-, USB 3.2-Ports und 8x isoliertem DIO

Fanless
Compact
High-End

Features

  • Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
  • Up to 32GB DDR4-3200 SDRAM
  • 4x USB 3.2 Gen2, 2x USB 2.0, 1x VGA, 1x DisplayPort
  • 2x 2.5G Ethernet, 2x serial interfaces, 4x additional possible
  • 1x internal 2.5" SSD, 1x M.2 2280 NVME
  • Optional 4-CH isolated DI and 4-CH isolated DO
  • Fanless operation from -25°C to 60°C
DIO
Product information "Nuvo-9505D"

The Nuvo-9505D is a cost-effective, fanless, and compact embedded computer based on the Intel® 12th/13th Gen platform. With up to 24 cores and 32 threads, the Intel® 12th/13th Gen processors built on the Intel 7 architecture deliver twice the performance of the previous generation using Intel 10th or 11th Gen processors. This makes the Nuvo-9505D an outstanding computing solution for various industrial requirements.

Main Features of the Rugged Embedded PC Nuvo-9505D

  • Essential I/O Functionality: The Nuvo-9505D features two 2.5GbE ports, two DisplayPorts, four USB 3.2 ports, and 8 isolated DIOs, meeting the fundamental needs of industrial applications.
  • Powerful Storage Options: An M.2 Gen4 NVMe slot (x4) supports the latest NVMe SSDs with read/write speeds of up to 7000 MB/s. Additionally, the system accommodates a 2.5-inch or 3.5-inch hard drive to store large data volumes for surveillance or data acquisition applications.
  • Expandable Connectivity: With two mPCIe slots and one M.2 E-key slot, the Nuvo-9505D allows for the integration of Wi-Fi or 4G/5G modules, making it flexible and future-proof.
  • Cost-Effective Performance: The Nuvo-9505D combines excellent computing power with essential interfaces while maintaining cost efficiency to meet the needs of most users.
  • Compact Design: The fanless, rugged chassis is space-saving and robust, making the Nuvo-9505D ideal for demanding industrial environments.

Why the Nuvo-9505D is the Ideal Rugged Embedded PC

With its exceptional computing power, versatile connectivity, and robust design, the Nuvo-9505D is the perfect solution for industrial applications. It combines cutting-edge technology with an attractive price-performance ratio, making it suitable for a wide range of requirements.

Choose the Rugged Embedded PC Nuvo-9505D to implement your industrial projects efficiently, reliably, and with future-proof performance.

Technical details

Add-ons: Full-size Mini PCIe, M.2 2230 E key, M.2 2280 M key, SIM Socket
Audio: 1x 3,5mm jack mic in & speaker out
CPU: Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium®
CPU Generation: 12th generation, 13th generation
CPU Socket: LGA1700
Certificates: CE/FCC Class A, according to EN 55032 & EN 55035, MIL-STD-810H, Method 514.8, Category 4, MIL-STD-810H, Method 516.8, Procedure I
Chipset: Intel® H610E
DC Input: 3-pin pluggable terminal block
DIO: 4-CH isolated DI und 4-CH isolated DO
Ethernet: 2.5G
Ethernet Ports: 1x, 2x
Humidity: 10% ~ 90% (non-condensing)
Internal Graphics: Intel® UHD Graphics 770
Memory: 1x DDR4 Slot
Memory capacity: 2 GB, 4 GB, 8 GB, 16 GB, 32 GB
Mounting: DIN-rail mount (optional), Wall-mount (optional)
Operating Temperature: -25°C ~ 60°C
Operating system: Linux, Windows 10, Windows 10 IoT, Windows 11
Power supply: 8 ~ 35V DC
Remote: 3-pin pluggable terminal block for remote control
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, M.2 2280 NVME
TPM: fTPM 2.0
USB: USB 2.0, USB 3.2 Gen 1
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x
Video: DisplayPort, VGA
