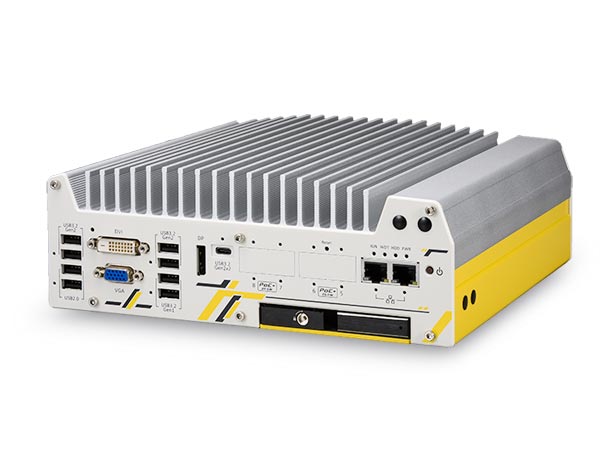

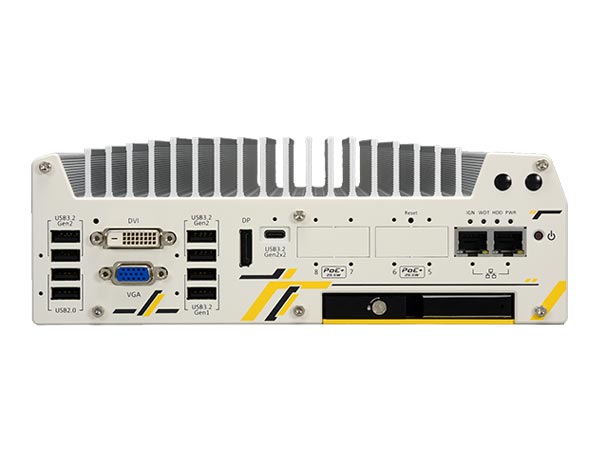

Nuvo-9100VTC
Fanless vehicle computer with Intel® 12th/13th Gen Core™ CPU and four M12 PoE+ ports
Features
- Intel® 12th/13th Gen Core™ i3/i5/i7/i9 CPU
- Up to 64GB DDR5-4800 RAM
- 8x USB 3.2, 1x USB-C, 1x VGA, 1x DVI-D, DisplayPort
- 4x M12 PoE+ 2.5G Ethernet ports
- 1x CAN 2.0 port, 4x isolated DI and 4x isolated DO
- 2x 2.5’ SSD, 1x M.2 SSD, 3x miniPCIe
- Ignition control for vehicles
- E-Mark, EN50155 and EN50121 certifications
Nuvo-9100VTC is Neousys' latest rugged in-vehicle controller based on Intel® 13th/ 12th-Gen Core™ processors. Benefiting from cutting-edge Intel® 7 photolithography, the latest Core™ desktop processors come with up to 24 cores/ 32 threads, offering an incredible boost of computational performance. Combining DDR5 memory bandwidth throughput and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.

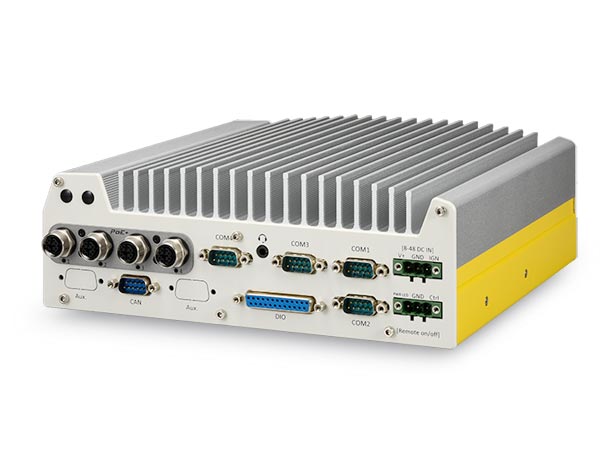

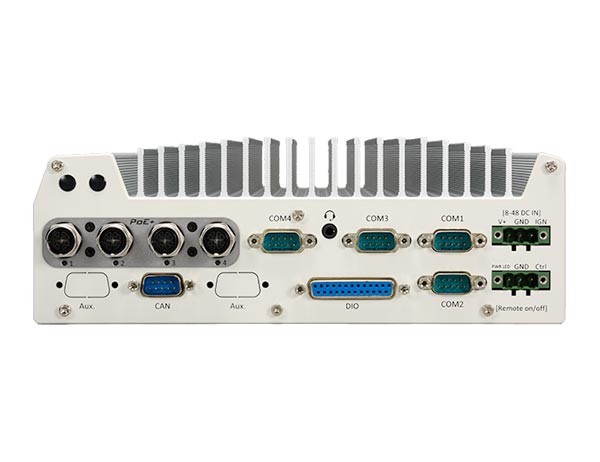

Nuvo-9100VTC provides flexibility to support a range of peripherals and connections. It has 2.5Gb and 1Gb Ethernet ports, and four M12 x-coded 802.3at PoE+ ports to supply 25W of power to connected devices such as IP cameras. The system also screw-lock mechanisms on the computer I/Os like Gigabit Ethernet, USB 3.2 Gen1 and USB 3.2 Gen2 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity is essential for modern-day in-vehicle applications, and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 5G/ 4G, WiFi, GPS, and CAN module for communication.
On top of all that, Nuvo-9100VTC also features an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8V to 48V wide-range DC input with ignition power control, and is E-Mark certified, making it the perfect solution with extraordinary reliability for various in-vehicle applications.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2242 B key, M.2 2280 M key, M.2 3052 B key, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i9, Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 12th generation, 13th generation |
| CPU Socket: | LGA1700 |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, E-Mark, EN 50121, EN50155, IEC61373:2010, Category 1, Class B |
| Chipset: | Intel® Q670E |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | 2.5G, Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Intel AMT: | AMT 16.0 |
| Internal Graphics: | Intel® UHD Graphics 770 |
| Memory: | 1x DDR5 Slot, 2x DDR5 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Damping brackets, Wall-mount |
| Operating Temperature: | -40°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE+ Ports: | 4x M12 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 48V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control, PWR LED Output |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME |
| TPM: | dTPM 2.0 |
| USB: | USB-C, USB 2.0, USB 3.2 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x |
| Video: | DVI-D, DisplayPort, VGA |
