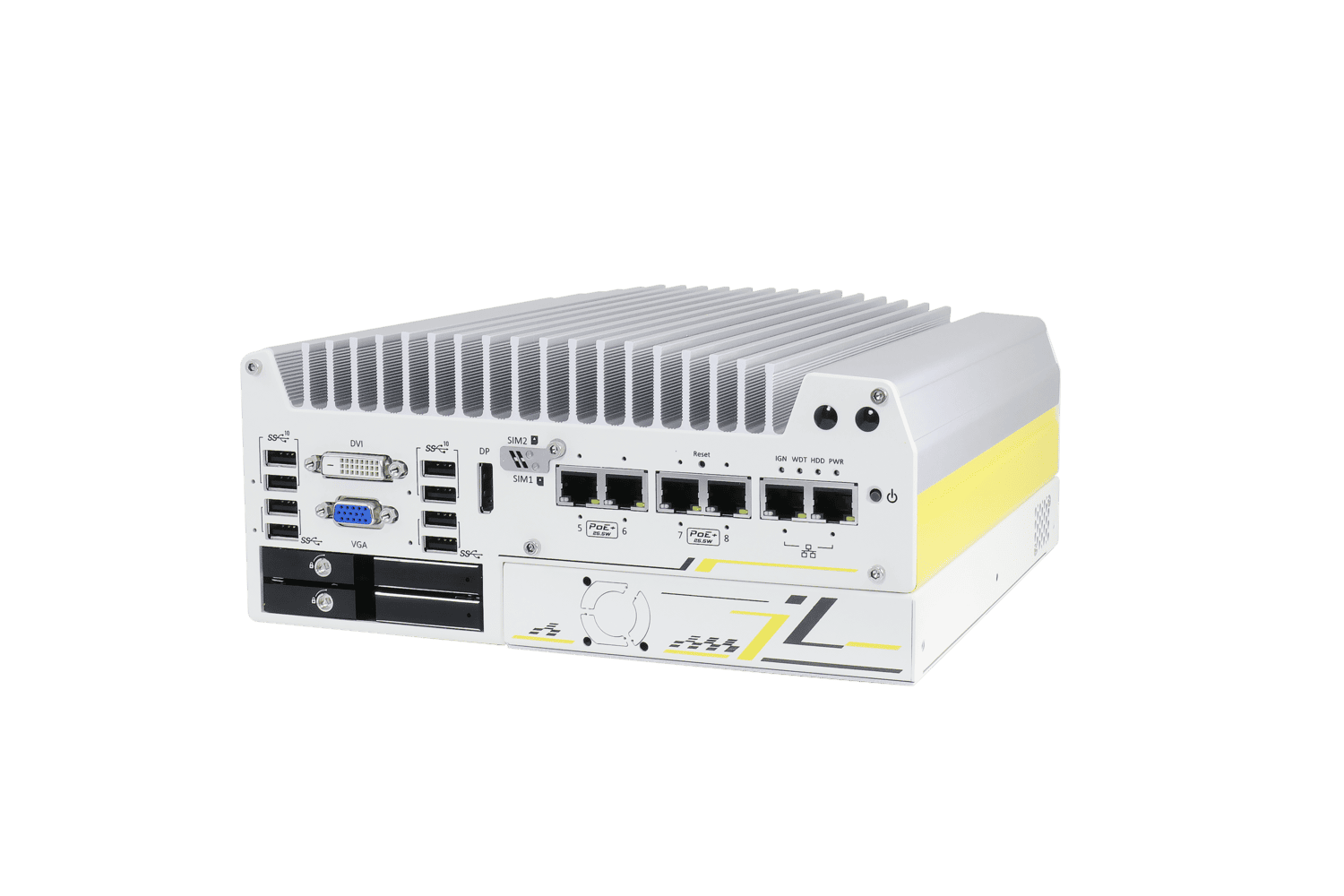

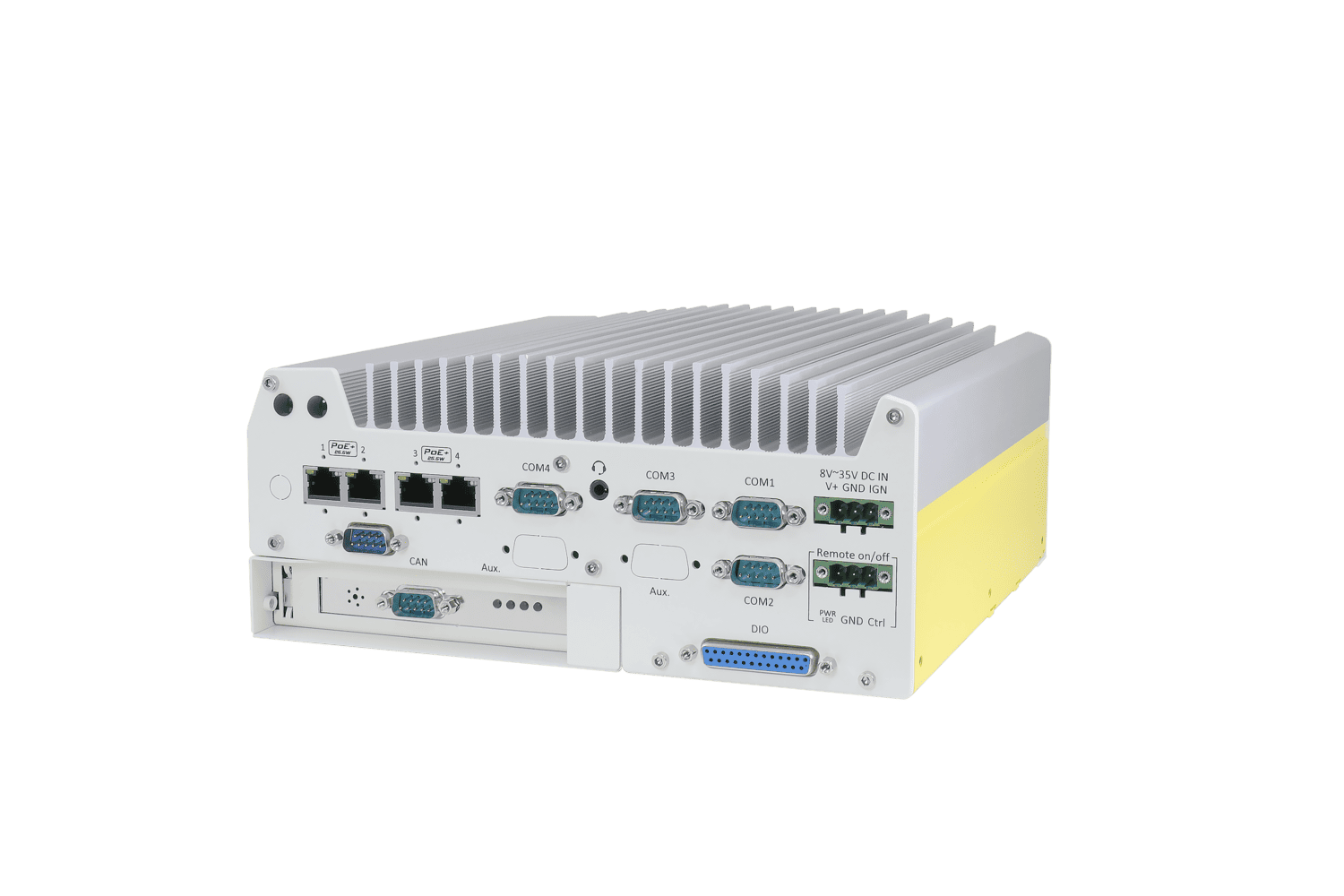

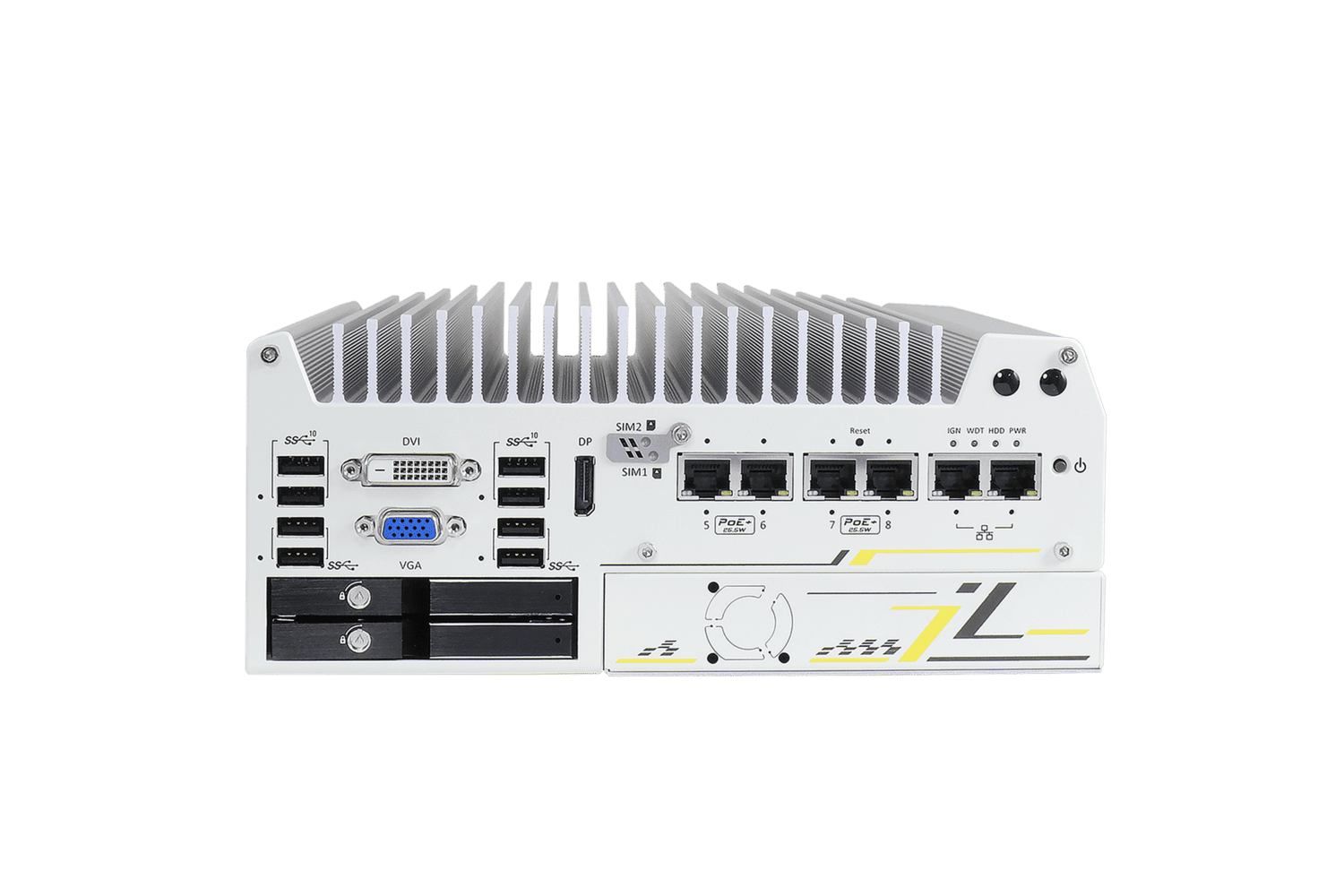

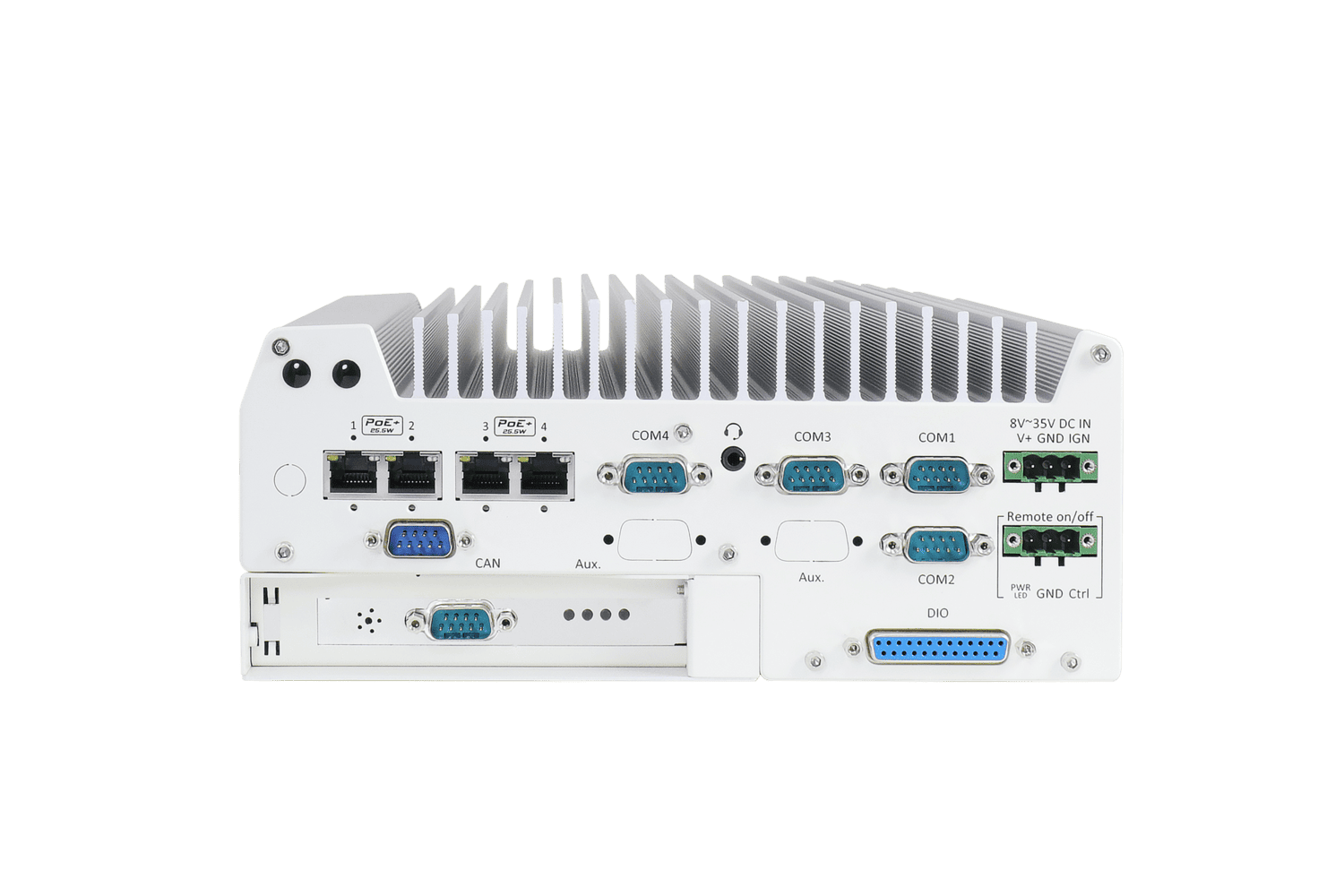

Nuvo-7258VTC

In-vehicle controller with Intel® 9th / 8th Gen Core™ CPU, 8 RJ45 PoE+ ports, and supercapacitor-based uninterruptible power module.

Shock resistant
Robust
PoE

Features

  • Intel® 9th / 8th Gen Core™ i7/i5/i3 LGA1151 CPU
  • Up to 64 GB DDR4 RAM
  • Isolated DI/DO and CAN ports
  • Eight RJ45 PoE+ ports
  • 8-35 V wide-range input with ignition control
  • Integrated UPS with 2500 Ws
  • E-mark and EN 50155 / EN 45545 certification
PoE+ Ports
Product information "Nuvo-7258VTC"

The Nuvo-7250VTC is a rugged in-vehicle controller that uses Neousys' innovative supercapacitor-based uninterruptible power solution. With its Intel® 8th/9th Gen Core™ processors offering up to 8 cores/16 threads and 64 GB DDR4 memory, it delivers a performance boost of over 50% compared to the previous generation of all-purpose vehicle application devices.

The Nuvo-7250VTC features supercapacitor technology, allowing it to provide 2,500 watt-seconds of stored energy to the system, ensuring a safe shutdown in case of unexpected power outages. The Nuvo-7250VTC offers a variety of peripheral and connection options. Depending on the variant, it has 4 or 8 802.3at PoE+ ports, capable of delivering up to 25W of power to connected devices like IP cameras, as well as M12 (x-coded) connectors and screw-lock mechanisms for I/O connections such as Gigabit Ethernet, USB 3.0, and USB 3.1, ensuring extremely robust connectivity even in environments with shocks and vibrations. The controller is also internally expandable, with two M.2 and three Mini-PCIe sockets, allowing for wireless modules for 3G/4G, Wi-Fi, GPS, or a CAN module for wireless data exchange.

Additionally, an optional 4G mobile network module is available, certified for operation with major U.S. carriers, reducing implementation time and costs. The Nuvo-7250VTC also features an isolated CAN bus for in-vehicle communication, isolated DIO for sensor/actuator control, power supply via an 8 – 35 V DC input, and integrated ignition control. Furthermore, the device is compliant with E-Mark and EN 50155/EN 45545. Combined with the supercapacitor uninterruptible power technology, the Nuvo-7250VTC provides optimal data security and is perfectly suited for vehicle applications.

Technical details

Add-ons: Full-size Mini PCIe, Full-size mSATA port, Isolated CAN 2.0 port, M.2 2242 B key, M.2 2280 M key, SIM Socket
Audio: Microphone input, Speaker out
CAN Bus: 1x CAN 2.0 port
CPU: Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3
CPU Generation: 8th generation, 9th generation
CPU Socket: LGA1151
Certificates: CE/FCC Class A, according to EN 55032 & EN 55035, E-Mark, EN 45545, EN 50121, EN50155, IEC61373:2010, Category 1, Class B
Chipset: Intel® Q370
DC Input: 3-pin pluggable terminal block
DIO: 4-CH isolated DI und 4-CH isolated DO
Ethernet: Gigabit
Ethernet Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Humidity: 10% ~ 90% (non-condensing)
Ignition control: Yes
Intel AMT: AMT 12.0
Internal Graphics: Intel® UHD Graphics 630
Memory: 1x DDR4 Slot, 2x DDR4 Slots
Memory capacity: 4 GB, 8 GB, 16 GB, 32 GB, 64 GB
Mounting: DIN-rail mount (optional), Damping brackets, Wall-mount
Operating Temperature: -40°C ~ 70°C
Operating system: Linux, Windows 10, Windows 10 IoT, Windows 11
PoE: Yes
PoE+ Ports: 8x RJ45 PoE+
PoE-Standard: IEEE 802.3at (PoE+)
Power Backup: 2500 Ws SuperCap UPS
Power supply: 8 ~ 35V DC
RAID: RAID 0, RAID 1
Remote: 3-pin pluggable terminal block for remote control, PWR LED Output
Serial Ports: RS-232, RS-422, RS-485
Storage: 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME, mSATA SSD
TPM: TPM 2.0
USB: USB 3.1 Gen 1, USB 3.1 Gen 2
USB Ports: 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x
Video: DVI-D, DisplayPort, VGA
