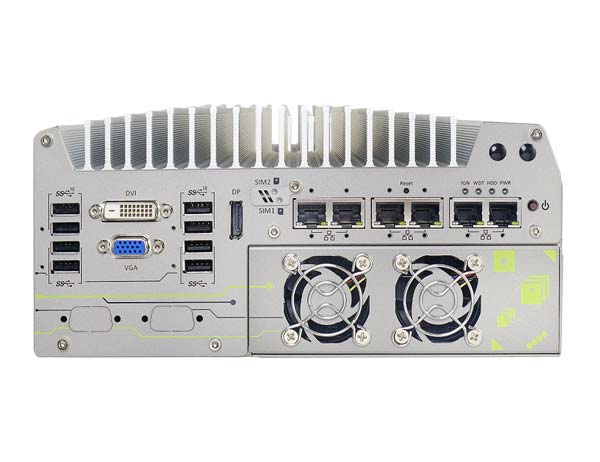

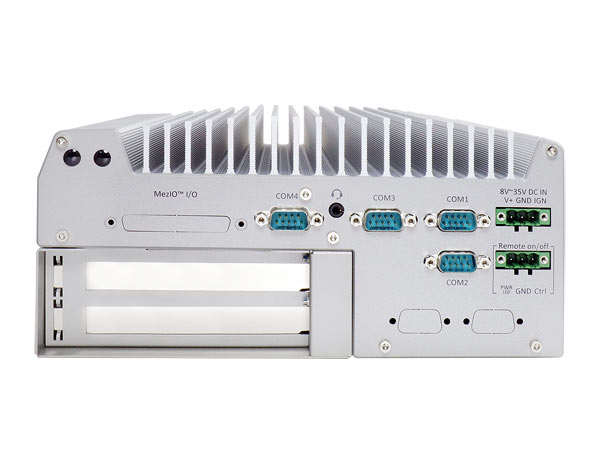

Nuvo-7160GC-PoE
Ruggedized Edge AI GPU platform supporting 120W NVIDIA® GPU & Intel® 9th/8th-Gen Core™ processor
Features
- Intel® 9th/8th Gen Core™ CPU (35 W/65 W)
- Up to 64 GB DDR4-2666 RAM
- Supports an NVIDIA® GPU up to 120 W
- 6x Gigabit Ethernet ports with PoE+
- 1x M.2 NVME, 2x 2.5" SSD (+ RAID)
- 1x full size miniPCIe, mSATA, M.2 2242 B key for expansions
- 8x USB 3.1, DisplayPort, DVI-D, VGA, 4x COM
- MIL-STD-810G, EN62368-1 and CE/FCC certified
Nuvo-7160GC-PoE is a ruggedized GPU-aided edge computing platform designed for modern machine learning applications such as autonomous driving, facial recognition and machine vision. It supports up to a 120W GPU, delivering 4~6 TFLOPS computing power for inference, as well as Intel® 9th/ 8th-Gen Coffee Lake Core™ 8/ 6-core CPU, offering up to 50% CPU performance enhancement over previous generations.
Thanks to Neousys' patented Cassette design and ingenious ventilation mechanism, Nuvo-7160GC-PoE can effectively dissipate the heat generated by the GPU. By introducing the guided airflow from intake to exhaust with powerful fans featuring smart fan control, it allows a 120W GPU to operate at 60°C ambient temperature under 100% GPU loading.
Nuvo-7160GC-PoE incorporates rich I/O functions such as USB 3.1 Gen2/ Gen1, 6x PoE+ GbE, COM and MezIO™ interface in its restricted footprint. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed or Intel® Optane™ memory for the ultimate system acceleration. Neousys Nuvo-7160GC-PoE is the ideal solution for emerging edge computing by combining exceptional CPU and GPU performances.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, M.2 2242 B key, M.2 2280 M key, MezIO® Port, PCIe x16 Gen3 Slot, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 8th generation, 9th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/ FCC Class A, according to EN 55032 & EN 55024, EN62368-1, MIL-STD-810G, Method 514.6, Category 4, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| Chipset: | Intel® Q370 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Intel AMT: | AMT 12.0 |
| Internal Graphics: | Intel® UHD Graphics 630 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Mounting: | Wall-mount |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT, Windows 11 |
| PoE: | Yes |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 3-pin pluggable terminal block for remote control |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, M.2 2280 NVME, mSATA SSD |
| TPM: | TPM 2.0 |
| USB: | USB 3.1 Gen 1, USB 3.1 Gen 2 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort, VGA |
