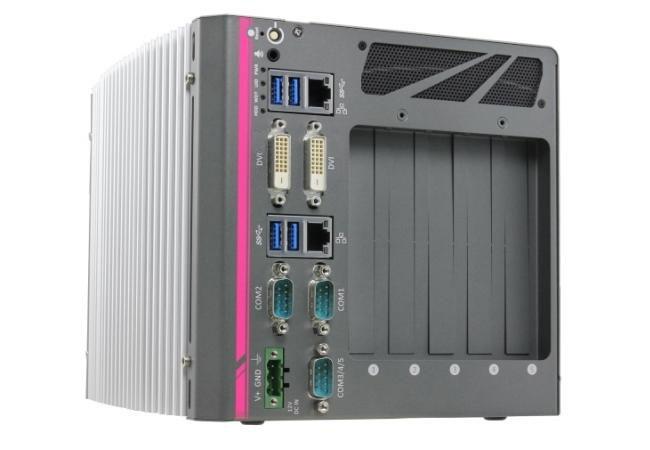

Nuvo-6023
Rugged fanless Intel® 6th Gen Skylake Core™ i7/i5 embedded PC with 1x PCIe x16, 2x PCIe x4, and 2x PCI
Features
- 1x PCIe x16, 2x PCIe x4, and 2x PCI slots for expansion cards
- Intel® 6th Gen Core™ i3/i5/i7/Pentium/Celeron CPU
- Up to 16GB DDR4-2133 RAM
- 4x USB 3.1, 2x Gigabit Ethernet, 2x serial ports, 2x DVI-D
- 3x 2.5" SSDs and 1x full-size mSATA slot
- Rugged, fanless operation with a wide temperature range from -25°C to 60°C

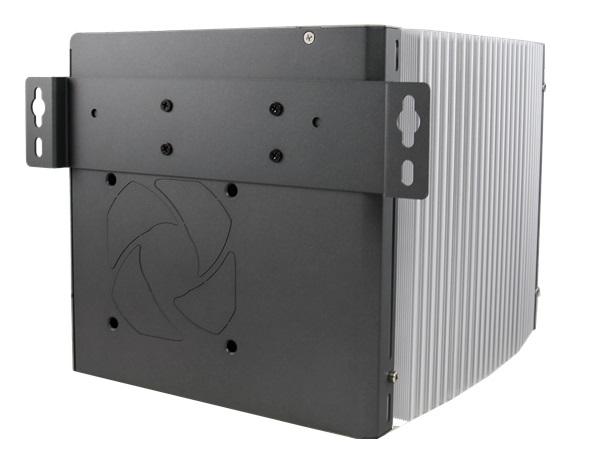

- Wall, DIN-Rail, or rack mounting
The Nuvo-6000 series is the perfect replacement for bulky rack or wall-mounted IPC systems. Powered by Intel® 6th Gen Skylake CPU platform, this device delivers the same computing power as traditional IPCs, but with a compact design that requires less space and allows for fanless operation.

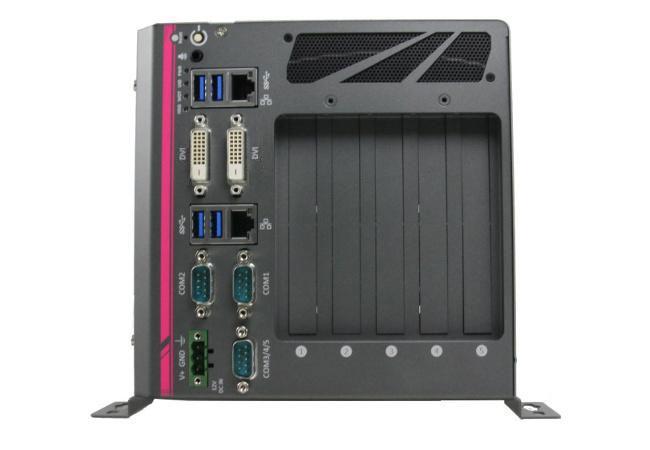

The Nuvo-6000 series supports processors for the LGA1151 CPU socket, meaning you can choose from a variety of processors depending on your computing needs and budget, from Core™ i7 to Celeron®. With its five expansion slots, this series is just as expandable as most other IPCs. Featuring front-accessible I/O components (including 2 GbE, 4 USB 3.1 Gen1, and 5 COM ports), the Nuvo-6000 is even more accessible, especially when mounted in a rack or cabinet.
With Neousys’ proven fanless design, the Nuvo-6000 stands out as a highly reliable device in all situations. Its versatile mounting options make it suitable as a desktop device, a cabinet-mounted unit, or a 19-inch rack-mounted appliance. Offering performance and cost similar to traditional IPCs, but with an improved form factor and greater reliability, the Nuvo-6000 opens new horizons in the field of industrial PCs.
Technical details
| Add-ons: | 2x PCI Slot, Full-size mSATA port, PCI Slot, PCIe x4 Gen2 Slot, PCIe x16 Gen3 Slot |
|---|---|
| Audio: | Speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Celeron®, Intel® Pentium® |
| CPU Generation: | 6th generation |
| CPU Socket: | LGA1151 |
| Chipset: | Intel® H110 |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® HD graphics 530 |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB |
| Mounting: | DIN-rail mount (optional), Rack-mount (optional), Wall-mount |
| Operating Temperature: | -25°C ~ 60°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| Power supply: | 8 ~ 35V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD, 3x 2,5" SSD/HDD |
| USB: | USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | DVI-D |
