Nuvo-5100VTC
Fanless vehicle computer with Intel® 6th Gen Core™ CPU and four M12 PoE+ ports, CAN bus, 4-channel DIO
Features
- Intel® 6th generation Core™ i3/i5/i7 CPU
- Up to 32GB DDR4-2133 SDRAM

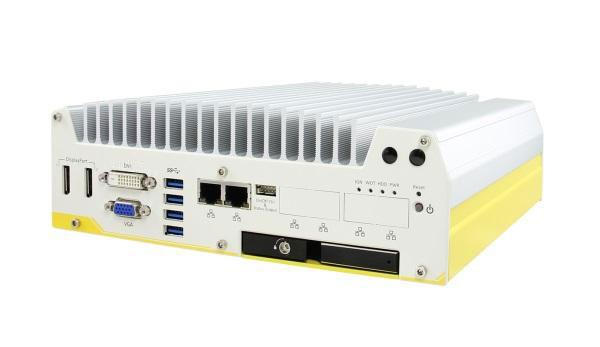

- 4x USB 3.0, 4x USB 2.0, VGA, DVI, DisplayPort
- 4x M12 PoE+ Gigabit Ethernet ports + 2x RJ45 GbE
- 1x CAN 2.0 port, 4x isolated DI and 4x isolated DO

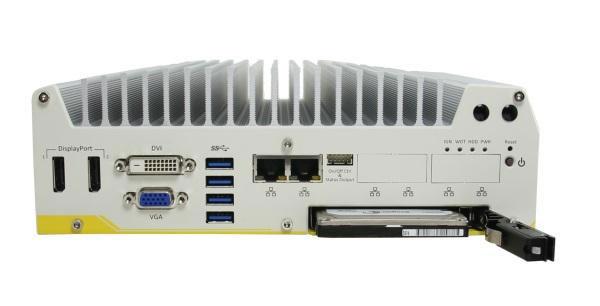

- 2x 2.5’ SSD/HDD, 1x full-size mSATA connection, 4x full-size miniPCIe
- E-Mark, EN 50155 / EN45545 certification
Nuvo-5100VTC is a state-of-the-art in-vehicle fanless embedded controller in compliant with EN50155/ EN45545 certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications.

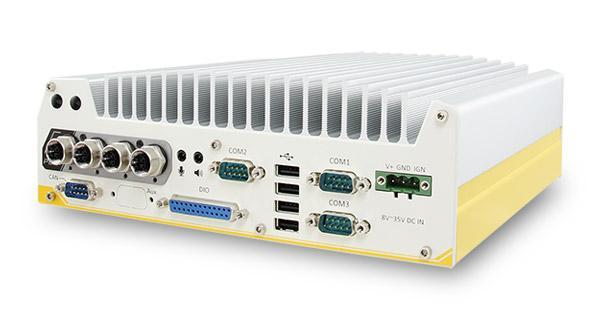

Nuvo-5100VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. They are implemented using M12, x-coded connectors, which guarantee extremely rugged connectivities in shocking/vibrating environments. Two more Gigabit Ethernet ports by RJ-45 are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.
In addition, Nuvo-5100VTC integrates CAN bus for communicating with in-vehicle CAN bus system, individual ECUs or other automotive devices. There is also an isolated DIO for sensor/ actuator control, ignition power control and dual-drive RAID storage which makes Nuvo-5100VTC simply the controller that can satisfy all your in-vehicle application needs.
Technical details
| Add-ons: | Full-size Mini PCIe, Full-size mSATA port, SIM Socket |
|---|---|
| Audio: | Microphone input, Speaker out |
| CPU: | Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3 |
| CPU Generation: | 6th generation |
| CPU Socket: | LGA1151 |
| Certificates: | CE/FCC Class A, according to EN 55022 & EN 55024, CE/ FCC Class A, according to EN 55032 & EN 55024, E-Mark, EN 45545, EN50155, IEC61373:2010, Category 1, Class B |
| Chipset: | Intel® Q170 |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x, 5x, 6x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Ignition control: | Yes |
| Intel AMT: | AMT 11 |
| Internal Graphics: | Intel® HD graphics 530 |
| Memory: | 1x DDR4 Slot, 2x DDR4 Slots |
| Memory capacity: | 2 GB, 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | DIN-rail mount (optional), Damping brackets, Wall-mount |
| Operating Temperature: | -40°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| PoE: | Yes |
| PoE+ Ports: | 4x M12 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 8 ~ 35V DC |
| RAID: | RAID 0, RAID 1 |
| Remote: | 10-Pin Wafer Connector (Remote On/Off Control & Status LED Output) |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, 2x 2,5" SSD/HDD |
| TPM: | TPM 2.0 |
| USB: | USB 2.0, USB 3.0 |
| USB Ports: | 1x, 2x, 3x, 4x, 5x, 6x, 7x, 8x |
| Video: | DVI-D, DisplayPort, VGA |
