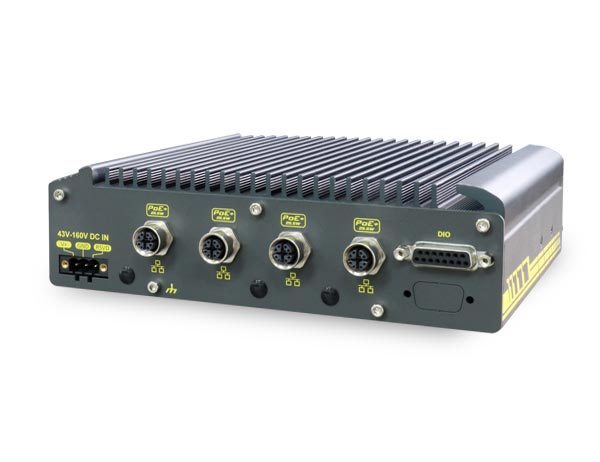

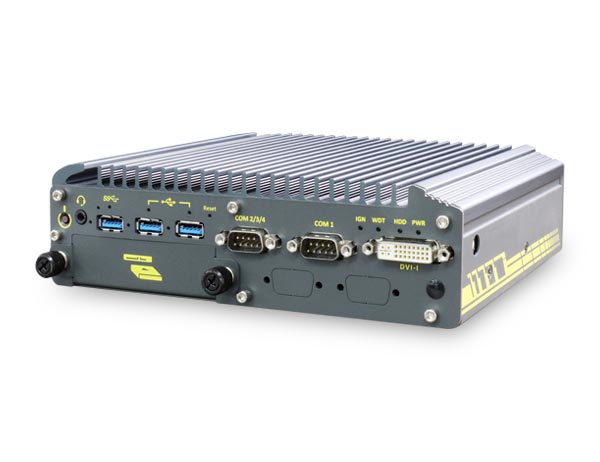

Nuvo-2610RL-H
EN50155 & EN45545 Intel® Elkhart Lake Atom® x6425E Railway Computer with 4x M12 PoE+
Features
- Intel® Elkhart Lake Atom® x6425E CPU
- Up to 32 GB DDR4-3200 RAM
- USB 3.1, 2x COM, VGA and DVI-I
- 4x M12 X-coded PoE+ Gigabit Ethernet
- 1x 2.5’ SSD, 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- EN50155 & EN45545 certified railway computer
The Nuvo-2610RL-H series is an EN50155 and EN45545-compliant, fanless Intel® Atom®-based railway computer for video-based rolling stock applications such as NVR (network video recorder) and video analytics.
Nuvo-2610RL-H has a dedicated thermal design to meet EN50155 OT4 class (-40°C to 70°C) fanless operation with max CPU performance and up to 50W PoE+ delivery. To overcome the challenging railway conditions, from voltage fluctuations to power outage interruptions, Nuvo-2610RL-H is equipped with an isolated wide 43V to 160V DC input design.
Powered by Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2610RL-H delivers 1.8x the CPU performance compared with Intel's previous Atom generation, Apollo Lake. The Nuvo-2615RL series features 4x PoE+ GbE ports with up to 50W total power budget for IP camera connectivity. In addition to the internal M.2 2280 SATA SSD for system storage, Nuvo-2610RL-H has one front-accessible 2.5" HDD tray accommodating a 2.5" SATA HDD/SSD up to 15mm in height and 5TB in capacity. For internal expansion, it provides two mini-PCIe sockets for WiFi, GNSS, and CAN modules. There is also an M.2 3042/3052 B Key socket for 4G/5G mobile broadband modules.
Integrating an Intel Atom® quad-core x6425E, -40°C to 70°C fanless operations, M12 PoE+ connectivity, up to 5TB data storage capacity, 2500 wattsecond SuperCAP UPS, 43V to 160V wide-range DC input, and EN50155 and EN45545 compliance, the Nuvo-2610RL-H series is the ideal rugged transportation computer for vision-based rolling stock applications.
Technical details
| Add-ons: | Full-size Mini PCIe, M.2 2280 M key, M.2 3052 B key, SIM Socket |
|---|---|
| Audio: | 1x 3,5mm jack mic in & speaker out |
| CPU: | Intel® Atom® x6425E |
| Certificates: | CE/FCC Class A, according to EN 55032 & EN 55035, EN 45545, EN50155, IEC61373:2010, Category 1, Class B |
| DC Input: | 3-pin pluggable terminal block |
| DIO: | 4-CH isolated DI und 4-CH isolated DO |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x, 3x, 4x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Internal Graphics: | Intel® UHD Graphics |
| Memory: | 1x DDR4 Slot |
| Memory capacity: | 4 GB, 8 GB, 16 GB, 32 GB |
| Mounting: | Damping brackets, Wall-mount (optional) |
| Operating Temperature: | -40°C ~ 70°C |
| Operating system: | Linux, Windows 10, Windows 10 IoT |
| PoE: | Yes |
| PoE+ Ports: | 4x M12 PoE+ |
| PoE-Standard: | IEEE 802.3at (PoE+) |
| Power supply: | 43 ~ 160V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2280 NVME |
| USB: | USB 2.0, USB 3.1 Gen 1 |
| USB Ports: | 1x, 2x, 3x |
| Video: | DVI-I, VGA |
