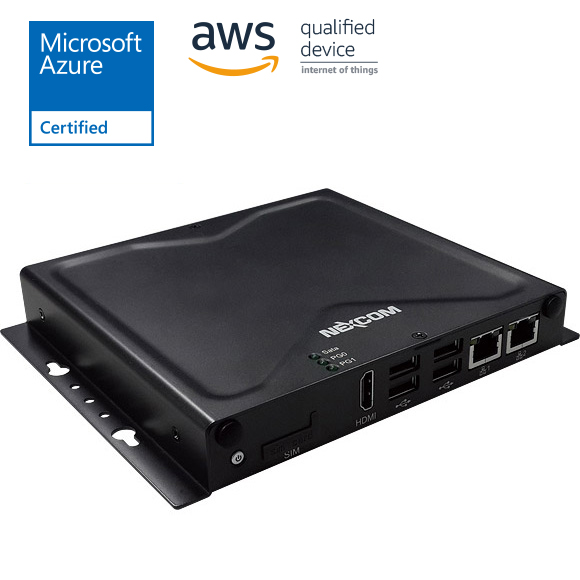

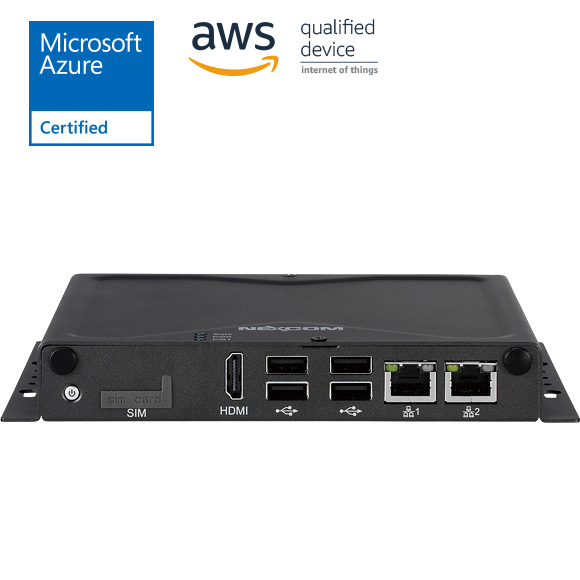

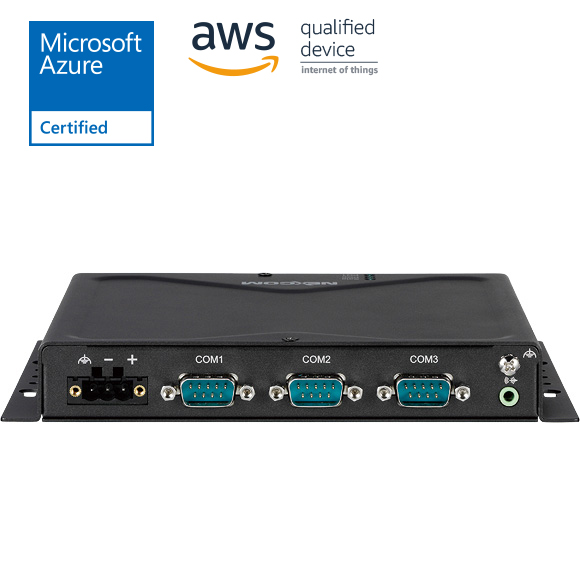

NISE-50
Fanless compact IoT gateway with Intel Atom E3826 CPU
Features
- Intel Atom E3826 Dual Core CPU
- 2GB On-Board DDR3L RAM
- On-Board 16GB EMMC or optional mSATA-Module
- 3x mPCIe for add-on cards
- 2x Intel I210AT GbE LAN Ports
- 4x USB 2.0, 3x serial interfaces
- -10 ~ 60°C operating temperature
- 24V DC Input
Powered by the latest Generation of Intel® Atom™ processor E3826 (formerly codenamed "Bay Trail-I"), NISE 50 series positions at the intelligent IoT gateway for factory automation and for smart city applications. Up to 4G on-board DDR3L memory, the NISE 50 series support operating temperature from -10°C to 60°C with 24V DC input with +/-20% range. The NISE 50 series have strong connectivity - Ethernet-based LAN port and traditional RS485, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 3 x mini-PCIe sockets which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 3.5G and 4G LTE module. NISE 50 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| Audio: | Speaker out |
| CPU: | Intel Atom E3826 |
| Certificates: | CE, FCC Class A, UL |
| DC Input: | 3-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -10°C ~ 55°C |
| Operating system: | Linux, Windows 7, Windows 10 IoT |
| Power supply: | 24V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | On-board EMMC, mSATA module (optional) |
| USB: | USB 2.0 |
| USB Ports: | 1x, 2x, 3x, 4x |
| Video: | HDMI |
