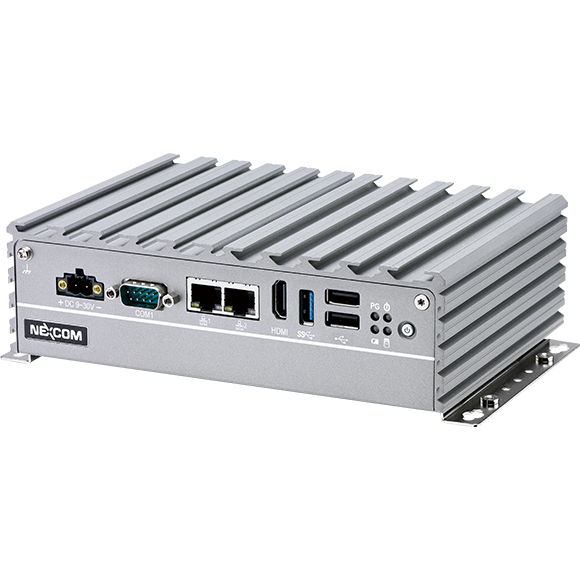

NISE-105 series
Fanless compact low-power industrial PC with Intel Celeron J1900 CPU
Features
- Intel Celeron J1900 Quad Core CPU
- Up to 8GB DDR3 RAM
- 2x Gigabit Intel I210 Ethernet Ports
- USB 2.0 & USB 3.0
- Two independent displays via HDMI & DVI-I
- 4x serial RS232/422/485 interfaces
- MiniPCIe port for Wifi/4G Module
- -10 ~ 60 °C operating temperature
Powered by Intel® Celeron® processor (formerly codenamed "Bay Trail"), the NISE 105U provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. Up to 8G DDR3L memory, NISE 105U have several options on storage devices like M.2, HDD and SSD. The NISE 105U support wide DC input range from 9-30VDC. The NISE 105U has high integration ability with optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications, network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105U is definitely the top choice for M2M intelligent system and factory automation platforms.
Technical details
| Add-ons: | Full-size Mini PCIe, SIM Socket |
|---|---|
| Audio: | Microphone input, Speaker out |
| CPU: | Intel® Celeron® J1900, Intel Atom E3826 |
| Certificates: | CE, FCC Class A, UL |
| DC Input: | 2-pin pluggable terminal block |
| Ethernet: | Gigabit |
| Ethernet Ports: | 1x, 2x |
| Humidity: | 10% ~ 90% (non-condensing) |
| Memory: | 1x DDR3 Slot |
| Memory capacity: | 2 GB, 4 GB, 8 GB |
| Mounting: | Wall-mount (optional) |
| Operating Temperature: | -10°C ~ 55°C |
| Operating system: | Linux, Windows 7, Windows 8, Windows 10, Windows 10 IoT |
| Power supply: | 9 ~ 30V DC |
| Serial Ports: | RS-232, RS-422, RS-485 |
| Storage: | 2,5" SSD, M.2 2242 M Key NVMe |
| USB: | USB 2.0, USB 3.0 |
| USB Ports: | 1x, 2x, 3x |
| Video: | DVI-I, HDMI |
