Nuvo-9000 series
Nuvo-9000 Series
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 64GB DDR5-4800 RAM
- 6x USB 3.2, 2x USB 2.0, 1x USB-C
- Up to 6x 2.5G Ethernet (PoE+) ports
- 2x 2.5" SSD (+RAID 0/1) and 1x M.2 2280 M-Key slot
- Robust and fanless, operating temperature range from -25 °C to 70 °C
- Expansion cassette and MezIO interface
Nuvo-9501
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2 Gen2, 2x USB 2.0, 1x VGA, 1x DisplayPort
- 2x 2.5G Ethernet, 2x serial interfaces, 4x additional possible
- 1x internal 2.5" SSD, 1x M.2 2280 NVME
- Optional 4-CH isolated DI and 4-CH isolated DO
- Fanless operation from -25°C to 60°C

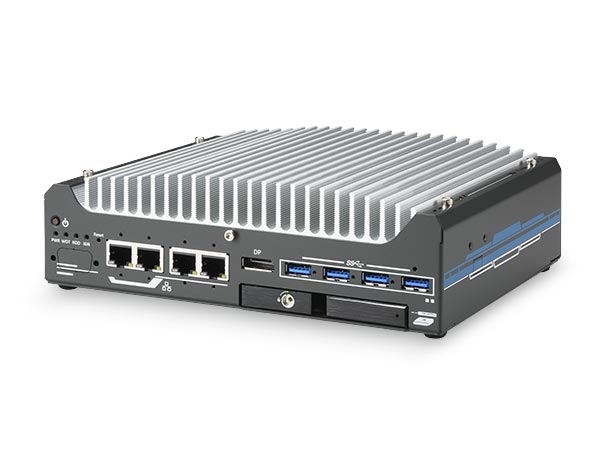

Nuvo-9531 Serie
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 32GB DDR4-3200 SDRAM
- 4x USB 3.2, 2x USB 2.0, VGA, DisplayPort
- 4x 2.5G Ethernet, 2x serial interfaces
- 1x 2.5" internal SSD and 1x M.2 2280 NVME
- 4-CH isolated DI and 4-CH isolated DO
- Fanless operation from -25°C to 60°C
Nuvo-9650AWP
- Intel® 13th/12th Gen Core™ i3/i5/i7/i9 CPU
- Up to 96 GB DDR5-4800 SDRAM
- USB 3.1, 2.5G / Gigabit Ethernet, RS232/422/485
- Water and dustproof according to IP66
- Ports via waterproof M12 connectors
- 8 - 48 V DC wide range input with ignition control
- Certified to MIL-STD-810H and CE/FCC
