AC-IMX490-H120
Features
- SONY IMX490 CMOS sensor and GEO SEMI GW5300 ISP
- 2880x1860 uncompressed UYVY video output
- IP67 + IP69K waterproof on the lens side
-
Improved edge focus and lens centering through 5-axis active adjustment
-
Object distance 2.5 m to infinity
Product information "AC-IMX490-H120"
The AC-IMX490-H120 camera feature advantages such as IP67 waterproof, high dynamic range (120dB HDR), auto white balance (AWB), and LED flicker mitigation (LFM), making them ideal choices for computer vision applications on mobile platforms in outdoor environments where illumination conditions are constantly changing.
Technical details
| CMOS : | SONY IMX490, 1/1.55” optical format with 3μm x 3μm pixel size |
|---|---|
| Connector: | Male FAKRA Z Connector |
| Current Consumption : | ≤ 230mA @ 12V |
| F No.: | F1.6 |
| FPS: | 30 FPS (Configurable by external framesync) |
| HDR (High Dynamic Range): | 120dB |
| HFOV: | 120° |
| ISP: | GEO SEMI GW5300 |
| LFM (LED Flicker Mitigation): | Yes |
| Lens Mounting: | 5-axis active adjustment with adhesive dispense |
| Objektabstand: | 2.5M to infinity |
| Operating Temperature: | -40°C ~ 85°C |
| Screen resolution: | 5MP (2880 x 1860), TV Lines center >= 1100. Corner 0.8F >=900 |
| Serializer: | MAX9295 |
| Video Format: | YUV422 (UYVY) |
| Waterproof: | IP67 + IP69K on the lens side IP67 on the FAKRA side, waterproof FAKRA connector |
Downloads
Jetson Orin

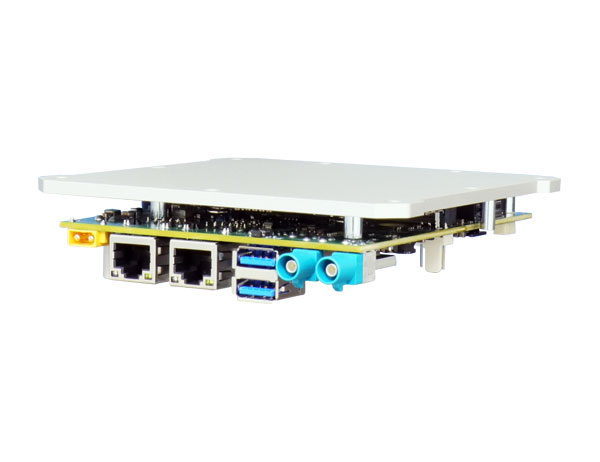

FLYC-300-JON16
